| Place of Origin: | China, Dongguan |
| Brand Name: | Mansheng |
| Model Number: | 500X7 |
| Parameter | Specification |

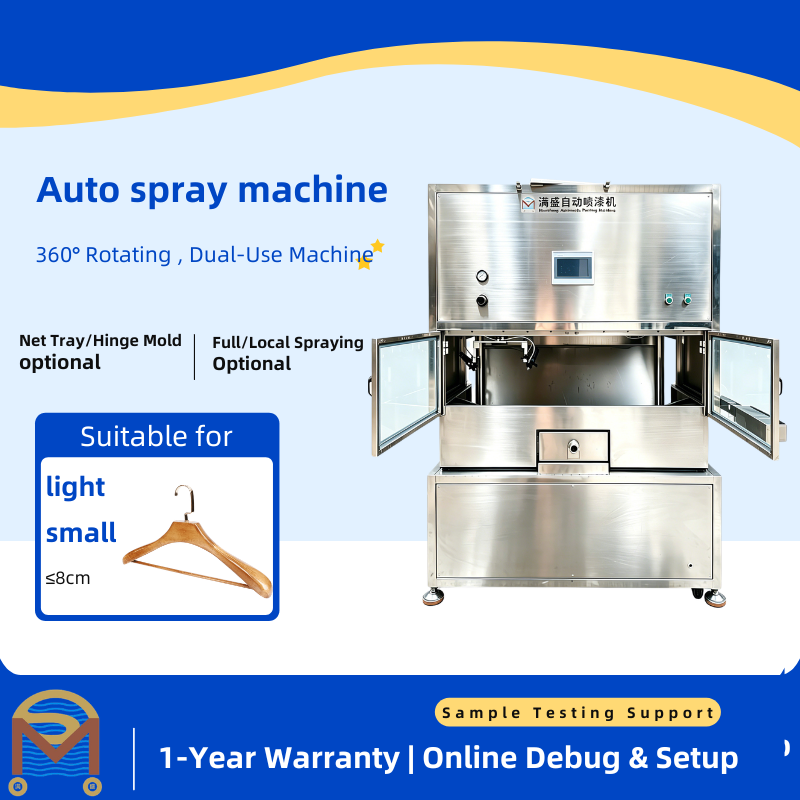

| Model | 500X7A Hinge Mold Auto Spray Machine |
| Material | Stainless Steel / Aluminum / Steel |
| Weight | 450KG |
| Gun/Nozzle | Mansheng Blue Gun, 1.3mm |
| Dimension | 2450×1500×2100mm (Frame: 1460mm) |
| Effective Stroke | 520×670×260mm |
| Spray Range | 500×500mm |
| Spray Mode | 360° Rotation + Reciprocating (2 guns, independent oil output) |
| Drive | 7-Axis Closed-Loop Stepper Drive |
| Axes | X(Left/Right) / Y(Front/Back) / Z(Up/Down) / R(Gun Rotate) / T1(A-Station) / T2(B-Station) / W(Base Rotate) |
| Accuracy | ±0.05mm |
| Control | Touch Screen |
| Program | 10,000+ |
| Comm Port | USB |
| Key Parts | Leadshine Motor / HIWIN Guide / NSK Bearing |
| Voltage | 220VAC / 50Hz |
| Air Pressure | 0.6-0.8MPa |
| Exhaust | Round / 400mm |
| Power | 0.95KW/H |
