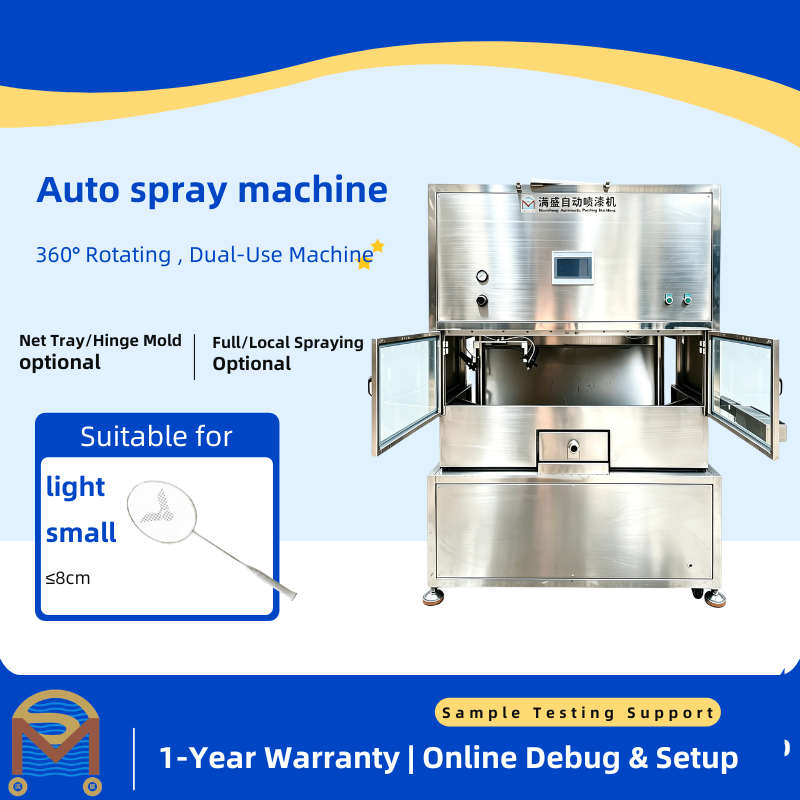

Automatic Spray Painting Machine, Coating Equipment for Badminton Rackets Spraying

Name: Automatic Spray Painting Machine, Coating Equipment for Badminton Rackets Spraying
Brand: Dongguan Mansheng Automation Equipment Co., Ltd
SKU: 500X7
Availability: InStock

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	Mansheng
Certification:	ISO 9001:2015
Model Number:	500X7

Detail Information

Place of Origin:

Dongguan, China

Brand Name:

Mansheng

Certification:

ISO 9001:2015

Model Number:

500X7

Weight:

450KG

Power Consumption:

0.95KW/H

Spraying Range:

500mm X 500mm

Core Components:

Leadshine Motor / HIWIN Linear Guide / NSK Bearing

Effective Stroke:

520mm X 670mm X 260mm

Positioning Accuracy:

0.05mm

Exhaust Port:

Round / 400mm

Spraying Mode:

360° High-Speed Rotation Spraying + Reciprocating Spraying (2 Guns With Independent Oil Output)

Communication Port:

USB

Air Supply Pressure:

0.6-0.8MPa

Rated Voltage:

220VAC / 50Hz

Spray Gun / Nozzle:

Mansheng Blue Gun, 1.3mm

Body Material:

Stainless Steel / Aluminum / Steel

Overall Dimension:

2450(Frame: 1460) Mm X 1500mm X 2100mm

Driving Mode:

7-Axis Precision Closed-Loop Stepper Drive

Program Storage:

10,000+ Programs

Control System:

Mansheng Touch Screen Control Series

Highlight:

High Light

Highlight:

Badminton Racket Spray Painting Machine

Sports Equipment Coating Machine

Racket Surface Spray Equipment

Product Description

Automatic Spray Painting Machine, Coating Equipment for Badminton Rackets Spraying

Technical Specifications

Parameter	Specification
Model	500X7 Badminton Rackets Auto Spray Painting Machine
Body Material	Stainless Steel / Aluminum / Steel
Weight	450KG
Spray Gun / Nozzle	Mansheng Blue Gun, 1.3mm
Overall Dimension	2450(Frame: 1460) mm x 1500mm x 2100mm
Effective Stroke	520mm x 670mm x 260mm
Spraying Range	500mm x 500mm
Spraying Mode	360° High-Speed Rotation Spraying + Reciprocating Spraying (2 guns with independent oil output)
Driving Mode	7-Axis Precision Closed-Loop Stepper Drive
Positioning Accuracy	0.05mm
Control System	Mansheng Touch Screen Control Series
Program Storage	10,000+ Programs
Communication Port	USB
Core Components	Leadshine Motor / HIWIN Linear Guide / NSK Bearing
Rated Voltage	220VAC / 50Hz
Air Supply Pressure	0.6-0.8MPa
Exhaust Port	Round / 400mm
Power Consumption	0.95KW/H

Key Features & Benefits

7-Axis Ultra-Precision Spray System

0.05mm positioning accuracy with closed-loop stepper drive ensures stable, uniform and defect-free coating for badminton racket frames, shafts, T-joints and handles, delivering professional-grade surface finish for premium sports equipment.
Dual Independent Spray Guns

Equipped with 2 sets of Mansheng blue spray guns (1.3mm nozzle) with separate oil output control, supports 360° high-speed rotation + reciprocating spraying for full coverage of curved racket frames, oval head shapes and complex badminton racket geometries.
Large Working Range for Batch Processing

500mm x 500mm super large spray range, dual-station rotation design, and 10,000+ programmable sequences, ideal for batch processing badminton rackets, tennis rackets, squash rackets and various sports equipment with consistent quality and fast color changeover.
Heavy-Duty Industrial Durable Build

Adopts top brand core components: Leadshine motor, HIWIN linear guide, NSK bearing; 450KG stable stainless steel frame, runs stably on 220VAC/50Hz with 0.6-0.8MPa air pressure, built for continuous sports equipment production lines.
Energy-Saving and Easy to Operate

Only 0.95KW/H ultra-low power consumption, user-friendly Mansheng touch screen control with USB communication port, 400mm round exhaust port for clean and safe working environment, quick program switching between different racket models and color schemes.
