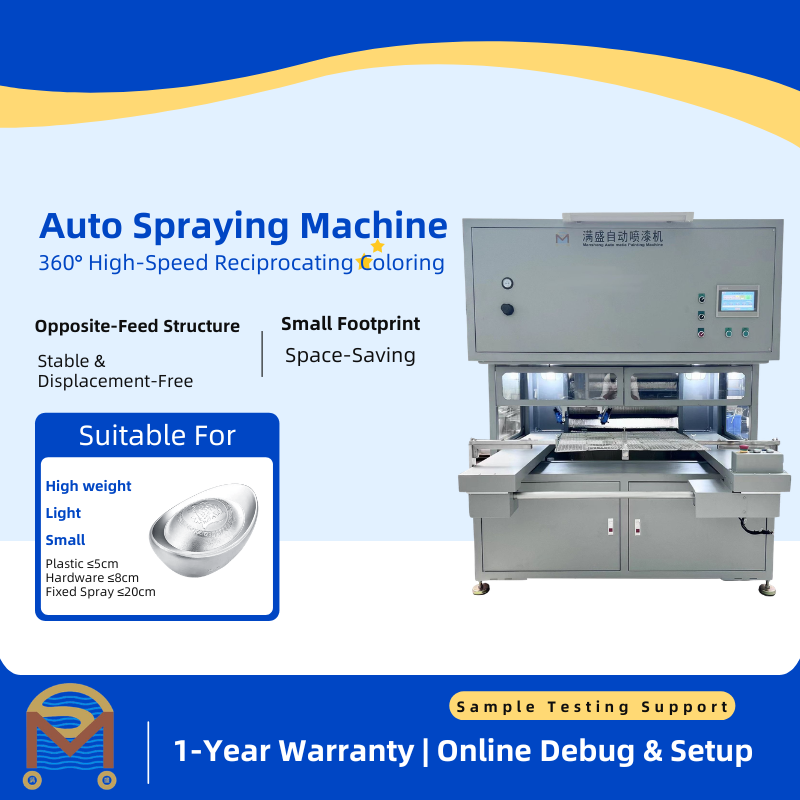

600X5A Automatic Spray Painting Machine, Coating Equipment for Silver Ingot Spraying

Name: 600X5A Automatic Spray Painting Machine, Coating Equipment for Silver Ingot Spraying
Brand: Dongguan Mansheng Automation Equipment Co., Ltd
SKU: 600X5A
Availability: InStock

Product Details:

Place of Origin:	Guangdong / Dongguan
Brand Name:	Man Sheng
Model Number:	600X5A

Detail Information

Place of Origin:

Guangdong / Dongguan

Brand Name:

Man Sheng

Model Number:

600X5A

Material:

Stainless Steel / Aluminum / Steel

Weight:

280KG

Gun / Nozzle:

WA101 Spray Gun, 0.5mm

Dimension:

1080 X 880 X 1750mm (Frame: 825mm)

Effective Stroke:

600 X 500 X 150mm

Spray Range:

600 X 500mm

Spray Mode:

360° Rotation + Reciprocating (2 Guns, Independent Oil Output)

Drive:

7-Axis Closed-Loop Stepper Drive

Axes:

X(Left/Right) / Y(Front/Back) / Z(Up/Down) / U(Gun 360° Rotate) / V(Station A Rotate) / W(Station B Rotate)

Accuracy:

0.05mm

Control:

Touch Screen

Program:

10000+

Comm Port:

USB

Key Parts:

Leadshine Motor / HIWIN Guide / NSK Bearing

Voltage:

220VAC / 50Hz

Air Pressure:

0.4-0.6MPa

Exhaust:

Round / 200mm

Power:

0.85KW/H

Highlight:

High Light

Highlight:

Large 600x500mm Spray Painting Machine

7-Axis Silver Ingot Coating Equipment

Industrial Auto Spray Machine 600X5A

Trading Information

Minimum Order Quantity:

Packaging Details:

WOODEN BOX

Payment Terms:

L/C,D/A,D/P,T/T,Western Union

Product Description

Product Specifications

Parameter	Specification
Model	600X5A
Material	Stainless Steel / Aluminum / Steel
Weight	280KG
Gun / Nozzle	WA101 Spray Gun, 0.5mm
Dimension	1080 x 880 x 1750mm (Frame: 825mm)
Effective Stroke	600 x 500 x 150mm
Spray Range	600 x 500mm
Spray Mode	360° Rotation + Reciprocating (2 guns, independent oil output)
Drive	7-Axis Closed-Loop Stepper Drive
Axes	X(Left/Right) / Y(Front/Back) / Z(Up/Down) / U(Gun 360° Rotate) / V(Station A Rotate) / W(Station B Rotate)
Accuracy	0.05mm
Control	Touch Screen
Program	10,000+
Comm Port	USB
Key Parts	Leadshine Motor / HIWIN Guide / NSK Bearing
Voltage	220VAC / 50Hz
Air Pressure	0.4-0.6MPa
Exhaust	Round / 200mm
Power	0.85KW/H

Key Selling Points

7-Axis Ultra-Precision Spray System: 0.05mm positioning accuracy with closed-loop stepper drive, delivering consistent, defect-free coating for silver ingots and complex-shaped workpieces.
Large 600x500mm Spray Range: Extended working area with dual independent WA101 spray guns (0.5mm nozzle), 360° rotation + reciprocating motion for full coverage on oversized parts.
Dual-Station Independent Spraying: Two guns with separate oil output control, rotating stations for simultaneous loading and spraying, maximizing production throughput.
Industrial-Grade Durability: Built with HIWIN linear guides, NSK bearings, and Leadshine closed-loop stepper motors; 280KG reinforced frame ensures vibration-free operation at 220VAC/50Hz.
Energy-Efficient & User-Friendly: Only 0.85KW/H power consumption, intuitive touch screen with 10,000+ programmable sequences, USB data port, and 200mm exhaust for clean workshop environment.
