Home > Products >
Shoe\footwear spray machine
>

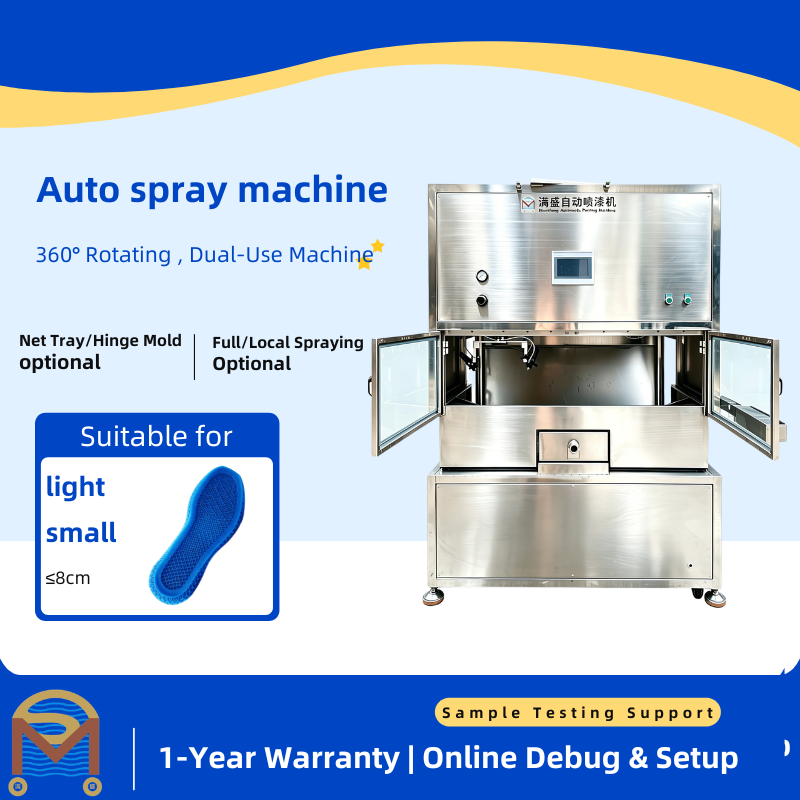

Automatic Spray Painting Machine, Coating Equipment for Blue 3D Printed Shoes Spraying
  • Automatic Spray Painting Machine, Coating Equipment for Blue 3D Printed Shoes Spraying
  • Automatic Spray Painting Machine, Coating Equipment for Blue 3D Printed Shoes Spraying
  • Automatic Spray Painting Machine, Coating Equipment for Blue 3D Printed Shoes Spraying
  • Automatic Spray Painting Machine, Coating Equipment for Blue 3D Printed Shoes Spraying
  • Automatic Spray Painting Machine, Coating Equipment for Blue 3D Printed Shoes Spraying

Automatic Spray Painting Machine, Coating Equipment for Blue 3D Printed Shoes Spraying

Product Details:
Place of Origin: Dongguan, China
Brand Name: Mansheng
Certification: ISO 9001:2015
Model Number: 500X7
Detail Information
Place of Origin:
Dongguan, China
Brand Name:
Mansheng
Certification:
ISO 9001:2015
Model Number:
500X7
Spraying Range:
500mm X 500mm
Core Components:
Precision Stepper Motor / High-Precision Linear Guide / High-Grade Bearing
Overall Dimension:
2450(Frame: 1460) Mm X 1500mm X 2100mm
Payment Terms:
L/C, D/A, D/P, T/T, Western Union
Control System:
Mansheng Touch Screen Control Series
Supply Ability:
2000 Sets Per Year
Delivery Time:
15-25 Working Days
Driving Mode:
7-Axis Precision Closed-Loop Stepper Drive
Program Storage:
10,000+ Programs
Weight:
450KG
Power Consumption:
0.95KW/H
Effective Stroke:
520mm X 670mm X 260mm
Positioning Accuracy:
0.05mm
Exhaust Port:
Round / 400mm
Spraying Mode:
360 High-Speed Rotation Spraying + Reciprocating Spraying (2 Guns With Independent Oil Output)
Communication Port:
USB
Air Supply Pressure:
0.6-0.8MPa
Rated Voltage:
220VAC / 50Hz
Packaging Details:
Wooden Box With Shock-proof Foam Insert, Export-grade Packaging
Spray Gun / Nozzle:
Mansheng Blue Gun, 1.3mm
Body Material:
Stainless Steel / Aluminum / Steel
Price:
$14,235
Minimum Order Quantity:
1 Set
Highlight:

High Light

Highlight:

Blue 3D Printed Shoe Coating Machine

,

Blue Shoe Spray Equipment

,

Printed Shoe Blue Spray Machine

Product Description
Automatic Spray Painting Machine for Blue 3D Printed Shoes
Advanced coating equipment specifically designed for automated spray painting of blue 3D printed shoes and footwear components.
Product Specifications
Parameter Specification
Model 500X7 3D Printed Shoes Auto Spray Painting Machine
Body Material Stainless Steel / Aluminum / Steel
Weight 450KG
Spray Gun / Nozzle Mansheng Blue Gun, 1.3mm
Overall Dimension 2450(Frame: 1460) mm x 1500mm x 2100mm
Effective Stroke 520mm x 670mm x 260mm
Spraying Range 500mm x 500mm
Spraying Mode 360 High-Speed Rotation Spraying + Reciprocating Spraying (2 guns with independent oil output)
Driving Mode 7-Axis Precision Closed-Loop Stepper Drive
Positioning Accuracy 0.05mm
Control System Mansheng Touch Screen Control Series
Program Storage 10,000+ Programs
Communication Port USB
Core Components Precision Stepper Motor / High-Precision Linear Guide / High-Grade Bearing
Rated Voltage 220VAC / 50Hz
Air Supply Pressure 0.6-0.8MPa
Exhaust Port Round / 400mm
Power Consumption 0.95KW/H
Key Features & Benefits
  • 7-Axis Ultra-Precision Spray: 0.05mm positioning accuracy with closed-loop stepper drive ensures stable, uniform coating on complex blue 3D printed shoe surfaces and irregular geometries.
  • Dual Independent Spray Guns: Equipped with 2 sets of Mansheng blue spray guns (1.3mm nozzle) with separate oil output control for complete coverage of shoe surfaces, soles, heels and edges.
  • Large Spray Range for Batch Processing: 500mm x 500mm spray range with dual-station rotation design processes multiple shoes per batch. 10,000+ programmable sequences for different sizes and styles.
  • Heavy-Duty Industrial Build: Premium core components including precision stepper motor, high-precision linear guide and high-grade bearing. 450KG stable stainless steel frame suitable for continuous production.
  • Energy-Saving & Intelligent Control: Only 0.95KW/H power consumption with user-friendly Mansheng touch screen control and USB communication port. Ideal for blue 3D printed shoes, sneakers, heels, soles and footwear accessories.

Tags:

3d printed shoes spray machine,

printed shoe coating equipment,

3d shoe surface sprayer
