Home > Products >
Plastic spray machine
>

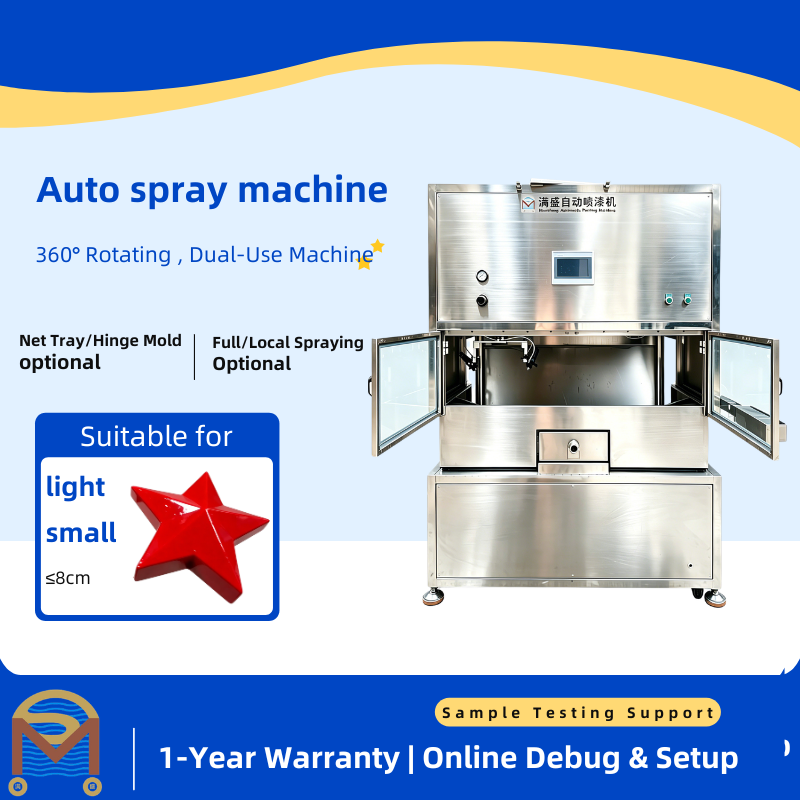

Automatic Spray Painting Machine, Coating Equipment for Five-pointed Star Crafts Spraying
  • Automatic Spray Painting Machine, Coating Equipment for Five-pointed Star Crafts Spraying
  • Automatic Spray Painting Machine, Coating Equipment for Five-pointed Star Crafts Spraying
  • Automatic Spray Painting Machine, Coating Equipment for Five-pointed Star Crafts Spraying
  • Automatic Spray Painting Machine, Coating Equipment for Five-pointed Star Crafts Spraying
  • Automatic Spray Painting Machine, Coating Equipment for Five-pointed Star Crafts Spraying

Automatic Spray Painting Machine, Coating Equipment for Five-pointed Star Crafts Spraying

Product Details:
Place of Origin: Dongguan, China
Brand Name: Mansheng
Certification: ISO 9001:2015
Model Number: 500X7
Detail Information
Place of Origin:
Dongguan, China
Brand Name:
Mansheng
Certification:
ISO 9001:2015
Model Number:
500X7
Body Material:
Stainless Steel / Aluminum / Steel
Weight:
450KG
Spray Gun / Nozzle:
Mansheng Blue Gun, 1.3mm
Overall Dimension:
2450(Frame: 1460) Mm X 1500mm X 2100mm
Effective Stroke:
520mm X 670mm X 260mm
Spraying Range:
500mm X 500mm
Spraying Mode:
360° High-Speed Rotation Spraying + Reciprocating Spraying (2 Guns With Independent Oil Output)
Driving Mode:
7-Axis Precision Closed-Loop Stepper Drive
Positioning Accuracy:
0.05mm
Control System:
Mansheng Touch Screen Control Series
Program Storage:
10,000+ Programs
Communication Port:
USB
Core Components:
Leadshine Motor / HIWIN Linear Guide / NSK Bearing
Rated Voltage:
220VAC / 50Hz
Air Supply Pressure:
0.6-0.8MPa
Exhaust Port:
Round / 400mm
Power Consumption:
0.95KW/H
Highlight:

High Light

Highlight:

Star Crafts Spray Painting Machine

,

Star Crafts Coating Equipment

,

Signage Letter Spray Machine

Trading Information
Minimum Order Quantity:
1
Price:
$12176
Packaging Details:
WOODEN BOX
Delivery Time:
In 30 days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union
Product Description
Automatic Spray Painting Machine, Coating Equipment for Five-pointed Star Crafts Spraying
Product Overview

Professional automatic spray painting system specifically designed for five-pointed star crafts and decorative items, featuring precision coating technology and industrial-grade durability.

Technical Specifications
Parameter Specification
Model 500X7 Five-pointed Star Craft Auto Spray Painting Machine
Body Material Stainless Steel / Aluminum / Steel
Weight 450KG
Spray Gun / Nozzle Mansheng Blue Gun, 1.3mm
Overall Dimension 2450(Frame: 1460) mm x 1500mm x 2100mm
Effective Stroke 520mm x 670mm x 260mm
Spraying Range 500mm x 500mm
Spraying Mode 360° High-Speed Rotation Spraying + Reciprocating Spraying (2 guns with independent oil output)
Driving Mode 7-Axis Precision Closed-Loop Stepper Drive
Positioning Accuracy 0.05mm
Control System Mansheng Touch Screen Control Series
Program Storage 10,000+ Programs
Communication Port USB
Core Components Leadshine Motor / HIWIN Linear Guide / NSK Bearing
Rated Voltage 220VAC / 50Hz
Air Supply Pressure 0.6-0.8MPa
Exhaust Port Round / 400mm
Power Consumption 0.95KW/H
Key Features & Benefits
  • 7-Axis Ultra-Precision Spray System: 0.05mm positioning accuracy with closed-loop stepper drive ensures stable, uniform and defect-free coating for five-pointed star crafts and various shaped workpieces
  • Dual Independent Spray Guns: Equipped with 2 sets of Mansheng blue spray guns (1.3mm nozzle) with separate oil output control, supporting 360° high-speed rotation + reciprocating spraying for full coverage of complex star-shaped contours
  • Large Working Range: 500mm x 500mm super large spray range with dual-station rotation design and 10,000+ programmable sequences, suitable for five-pointed star crafts, advertising letters, decorative items, hardware, 3C electronics and industrial components
  • Heavy-Duty Industrial Build: Features top brand core components including Leadshine motor, HIWIN linear guide, and NSK bearing; 450KG stable stainless steel frame operates reliably on 220VAC/50Hz with 0.6-0.8MPa air pressure
  • Energy-Efficient Operation: Only 0.95KW/H ultra-low power consumption with user-friendly Mansheng touch screen control and USB communication port; 400mm round exhaust port ensures clean and safe working environment

Tags:

advertising letter spray machine,

signage letter coating equipment,

metal letter spray machine
