| Place of Origin: | Dongguan |
| Brand Name: | Mansheng |
| Model Number: | 600X5B |
| Parameter Item | Parameter Value |
|---|---|

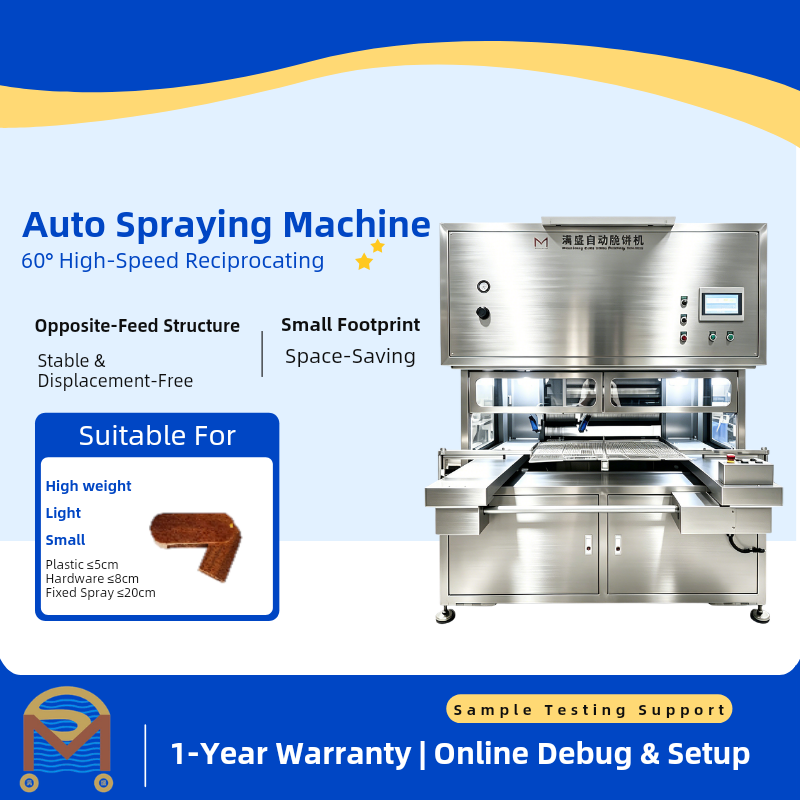

| Machine Model | 600X5B Spray Gun Automatic Painting Machine |
| Body Material | Stainless steel, aluminum, steel/cold plate (optional) |
| Weight | 480KG |
| Spray Gun/Nozzle Dia | Mansheng Blue Gun 1.3 |
| Overall Dimensions | 2508 (Frame 1440) mm1500mm1910mm |
| Effective Stroke | 600mm900mm260mm (XYZ) |
| Spraying Range | 600mm*600mm |
| Spraying Method | 360-degree high-speed rotating spraying function + reciprocating spraying (2 spray guns can dispense independently) |
| Drive Method | Five-axis precision closed-loop stepper drive |
| X Axis | Horizontal (Left/Right) |
| Y Axis | Vertical (Front/Back) |
| Z Axis | Up/Down |
| R Axis | Dual spray guns 360-degree high-speed rotation + reciprocating |
| G Axis | Automatic in/out upper and lower material tables |
| Positioning Accuracy | ±0.2MM |
| Control System | Mansheng touch screen control series |
| Program Storage | 10,000-level programs |
| Communication Port | USB |
| Motor | Leisai |
| Guide Rail | HIWIN |
| Power Supply | Hugong |
| Pneumatic Components | Sun Ruis, Aideke |
| Electrical Components | Zhengtai, Delixi, Omron |
| Timing Belt Material | Rubber |
| Control Buttons | Tiande |
| Machine Bearings | NSK |
| Touch Screen | Kunlun Tongtai |
| Rated Voltage | 220VAC/50HZ |
| Air Supply Pressure | 0.6-0.8MPA |
| Exhaust Port Shape/Size | Circular/400mm |
| Power Consumption | 0.95KW/H |
