| Place of Origin: | China |
| Model Number: | 200X7C |

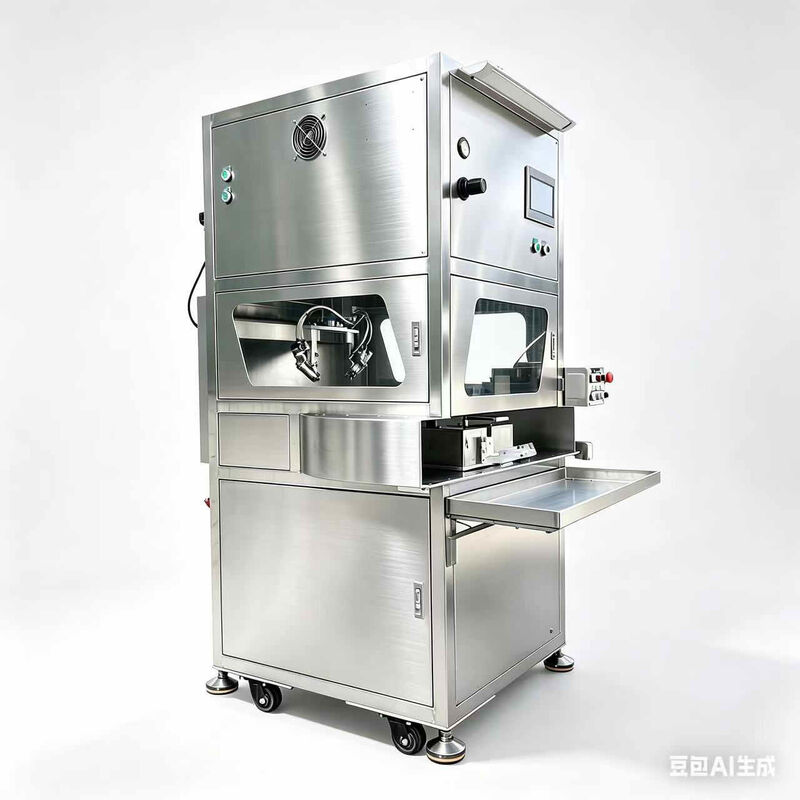

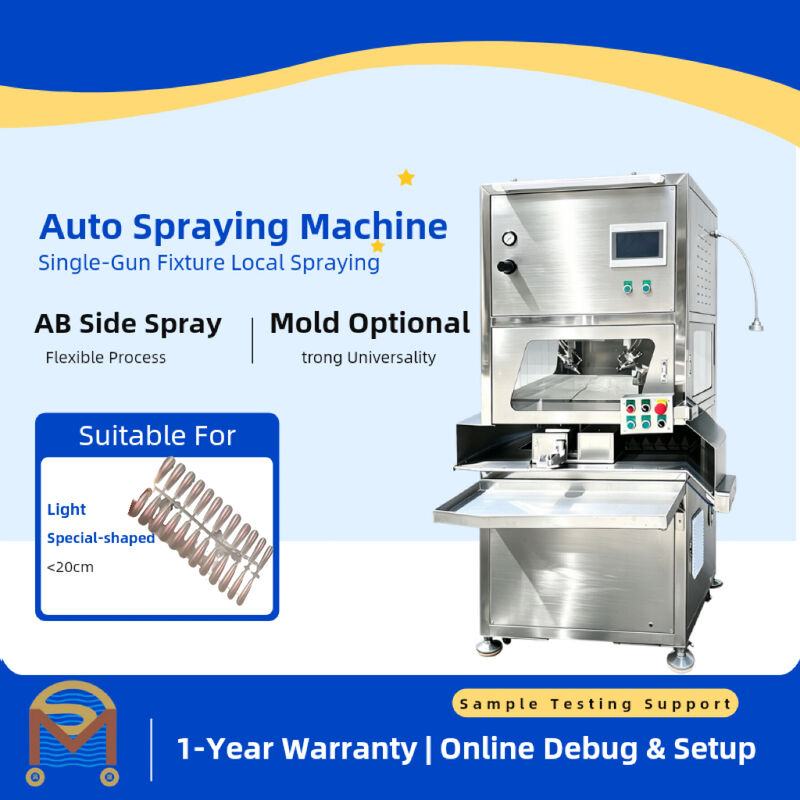

The 200X7C Reciprocating Automatic Spray Painting Machine is a high-precision 7-axis coating system engineered for plastic nail tip UV gel application. With closed-loop stepper drive technology and ±0.2mm positioning accuracy, it ensures consistent, repeatable spraying results for high-volume production environments.
| Machine Model | 200X7C Reciprocating Automatic Spray Painting Machine |
| Body Material | Stainless Steel, Aluminum, Steel |
| Weight | 200KG |
| Spray Gun / Nozzle | Yanzhi Spray Gun 0.5 |
| Overall Dimensions | 1296 (Frame 825) mm * 1060mm * 1806mm |
| Effective Stroke | 380mm * 220mm * 240mm |
| Spraying Range | 200mm * 200mm |
| Spraying Method | Reciprocating Spraying |
| Driving Method | 7-Axis Precision Closed-Loop Stepper Drive |
| Positioning Accuracy | ±0.2MM |
| Control System | Mansheng Touch Screen Control Series |
| Program Storage | 10000 Programs |
| Communication Port | USB |
| Motor | Leadshine |
| Guide Rail | HIWIN |
| X-Axis | Horizontal (Left / Right) |
| Y-Axis | Vertical (Front / Back) |
| Z-Axis | Up / Down |
| A-Axis | Spray Gun Swing Angle |
| T1-Axis | A Station Rotation |
| T2-Axis | B Station Rotation |
| W-Axis | Chassis Rotation |
| Rated Voltage | 220VAC / 50HZ |
| Air Supply Pressure | 0.4 - 0.6MPA |
| Air Outlet Shape / Size | Round / 200mm |
| Power Consumption | 0.75KW / H |
| Power Supply | Hugong |
| Pneumatic Components | Shanxi, Airtac |
| Electrical Components | Chint, Delixi, Omron |
| Timing Belt Material | Rubber |
| Control Buttons | Tend |
| Overall Bearings | NSK |
| Touch Screen | Kunlun Tongtai |
