| Place of Origin: | Dongguan |
| Brand Name: | Mansheng |
| Model Number: | 500X8 |
| Parameter Name | Specification / Description |
|---|---|

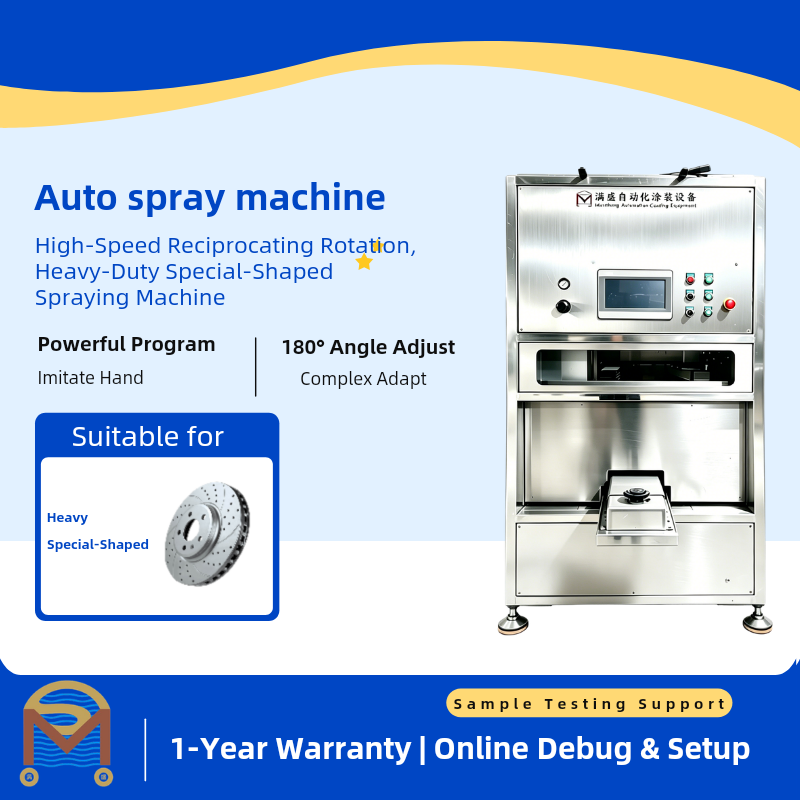

| Machine Model | 500XB High-speed Reciprocating Machine |
| Body Material | Stainless Steel, Aluminum, Steel |
| Weight | 480KG |
| Spray Gun / Nozzle Dia. | Mansheng Blue Gun 1.3 |
| Overall Dimensions | 2143 (Frame 1260) mm * 1500mm * 2170mm |
| Spraying Range | 500mm * 400mm * 350mm |
| Spraying Method | Material tray 360-degree rotation to any angle + reciprocating spraying |
| Drive Method | 8-axis precision servo drive |
| X Axis | Transverse (Left/Right) |
| Y Axis | Vertical (Front/Back) |
| Z Axis | Up/Down |
| R Axis | Spray gun rotation |
| A Axis | Spray gun swing angle |
| T1 Axis | A Material Tray Station Rotation |
| T2 Axis | B Material Tray Station Rotation |
| W Axis | Material Tray Revolution (Position Change) |
| Positioning Accuracy | ±0.2MM |
| Control System | Mansheng Touch Screen Control Series |
| Program Storage | 10,000 levels of programs |
| Communication Port | USB |
| Motor | Xinje |
| Module | High-precision motion module |
| Power Supply | Hugong |
| Pneumatic Components | Sunres, AirTAC |
| Electrical Components | Chint, Delixi, Omron |
| Control Buttons | Tiande |
| Touch Screen | 昆仑通态 (MCGS) |
| Rated Voltage | 220VAC/50HZ |
| Air Supply Pressure | 0.6-0.8MPA |
| Exhaust Port Shape/Size | Circular / 400mm |
| Power Consumption | 4.5KW/H |
