| Place of Origin: | China |
| Brand Name: | ManSheng |
| Model Number: | 500X7A |

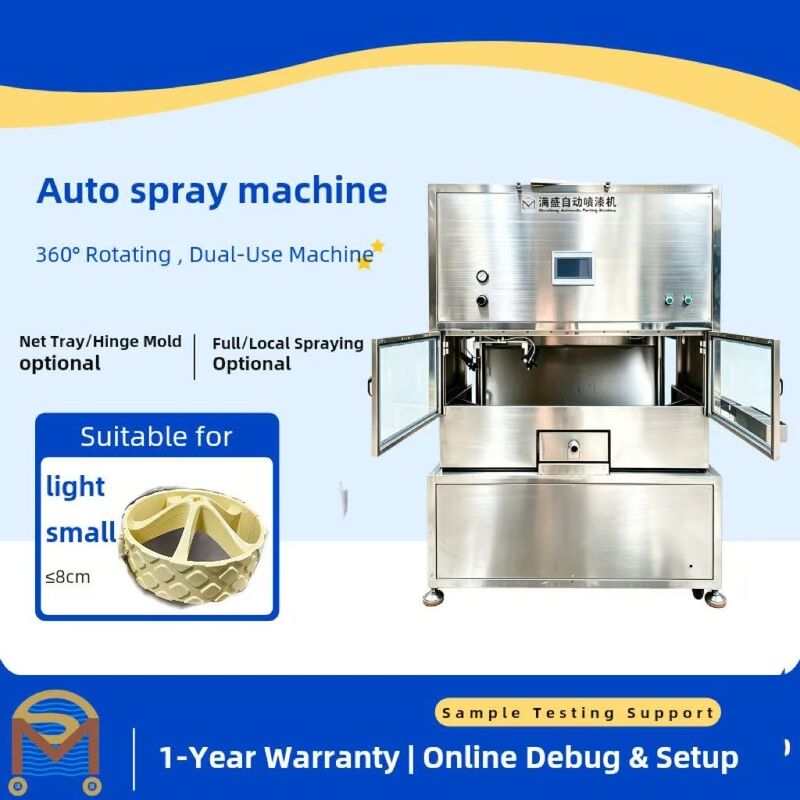

The ManSheng 500X7A is a 7-axis precision automatic spray painting machine engineered for hinge mold surface coating. Featuring 360° high-speed rotary dual-gun spraying with independent oil discharge, it delivers exceptional coating uniformity with ±0.05mm positioning accuracy for demanding industrial finishing applications.
| Parameter | Specification |
|---|---|
| Machine Model | 500X7A Hinge Mold Automatic Spray Painting Machine |
| Body Material | Stainless Steel, Aluminum, Steel |
| Weight | 450KG |
| Overall Dimensions | 2450×1500×2100mm (Frame 1460mm) |
| Effective Stroke | 520×670×260mm |
| Spraying Range | 500mm×500mm |
| Spray Gun / Nozzle | Mansheng Blue Gun 1.3 |
| Positioning Accuracy | ±0.05mm |
The 500X7A employs a dual spray gun configuration with 360° high-speed rotation combined with reciprocating motion. Both guns can independently discharge oil, enabling simultaneous multi-angle coating for complex hinge mold geometries. This ensures complete surface coverage and consistent film thickness across all workpiece contours.
| Parameter | Specification |
|---|---|
| Spraying Method | 360° High-Speed Rotation + Reciprocating (2 guns independently discharge oil) |
| Driving Method | 7-Axis Precision Closed-Loop Stepper Drive |
| Axis | Function |
|---|---|
| X-Axis | Horizontal (Left / Right) |
| Y-Axis | Vertical (Front / Back) |
| Z-Axis | Up / Down |
| R-Axis | Dual Spray Gun 360° High-Speed Rotation + Reciprocation |
| T1-Axis | A Station Rotation |
| T2-Axis | B Station Rotation |
| W-Axis | Chassis Rotation |
| Parameter | Specification |
|---|---|
| Control System | Mansheng Touch Screen Control Series |
| Touch Screen | Kunlun Tongtai |
| Program Storage | 10,000 Programs |
| Communication Port | USB |
| Control Buttons | Tend |
| Component | Brand / Specification |
|---|---|
| Motor | Leadshine |
| Guide Rail | HIWIN |
| Overall Bearings | NSK |
| Power Supply | Hugong |
| Pneumatic Components | Shanxi, Airtac |
| Electrical Components | Chint, Delixi, Omron |
| Timing Belt Material | Rubber |
| Parameter | Specification |
|---|---|
| Rated Voltage | 220VAC / 50HZ |
| Air Supply Pressure | 0.6 - 0.8MPa |
| Air Outlet | Round / 400mm |
| Power Consumption | 0.95KW/H |
The ManSheng 500X7A sets the standard for automated hinge mold spray painting with its closed-loop stepper control, dual-station rotary workholding, and precision component ecosystem. Contact us today to discuss your coating requirements.
