| Place of Origin: | China |
| Brand Name: | ManSheng |
| Model Number: | 500X8 |

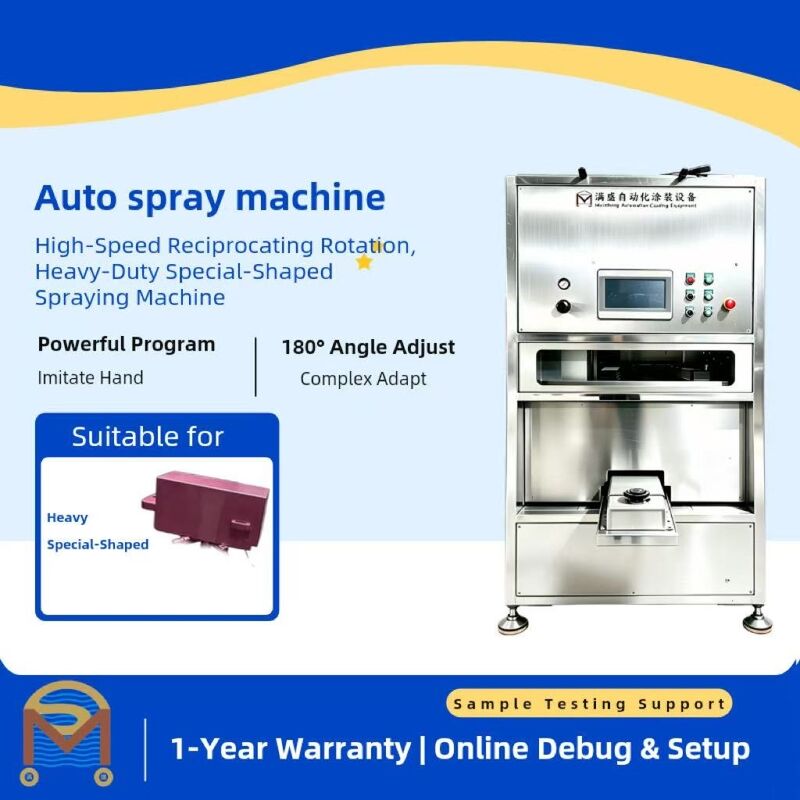

The ManSheng 500X8 is an 8-axis high-speed reciprocating spray painting machine engineered for demanding industrial coating applications. Equipped with a precision servo drive system and 360° tray rotation, it delivers rapid, uniform coating across complex workpiece geometries with ±0.2mm positioning accuracy for high-volume production environments.
| Parameter | Specification |
|---|---|
| Machine Model | 500X8 High-Speed Reciprocating Machine |
| Body Material | Stainless Steel, Aluminum, Steel |
| Weight | 480KG |
| Overall Dimensions | 2143*1500*2170mm (Frame 1260mm) |
| Spraying Range | 500*400*350mm |
| Spray Gun / Nozzle | Mansheng Blue Gun 1.3 |
| Positioning Accuracy | ±0.2mm |
The 500X8 features a unique tray-based 360° rotation system that can position workpieces at any angle, combined with high-speed reciprocating spray motion. This dual-action system ensures complete surface coverage and consistent film thickness, making it ideal for complex-shaped components requiring multi-angle coating in a single cycle.
| Parameter | Specification |
|---|---|
| Spraying Method | 360° Tray Rotation Any Angle + Reciprocating Spray |
| Driving Method | 8-Axis Precision Servo Drive |
| Axis | Function |
|---|---|
| X-Axis | Horizontal (Left / Right) |
| Y-Axis | Vertical (Front / Back) |
| Z-Axis | Up / Down |
| R-Axis | Spray Gun Rotation |
| A-Axis | Spray Gun Angle Adjustment |
| T1-Axis | A Tray Station Rotation |
| T2-Axis | B Tray Station Rotation |
| W-Axis | Tray Position Switching |
| Parameter | Specification |
|---|---|
| Control System | Mansheng Touch Screen Control Series |
| Touch Screen | Kunlun Tongtai |
| Program Storage | 10,000 Programs |
| Communication Port | USB |
| Control Buttons | Tend |
| Component | Brand / Specification |
|---|---|
| Motor | Xinje |
| Motion Module | High-Precision Motion Module |
| Power Supply | Hugong |
| Pneumatic Components | Shanxi, Airtac |
| Electrical Components | Chint, Delixi, Omron |
| Parameter | Specification |
|---|---|
| Rated Voltage | 220VAC / 50HZ |
| Air Supply Pressure | 0.6 - 0.8MPa |
| Air Outlet | Round / 400mm |
| Power Consumption | 4.5KW/H |
The ManSheng 500X8 defines the next generation of high-speed reciprocating spray coating with its 8-axis servo architecture, tray-based 360° rotation, and industrial-grade component selection. Contact us today to discuss how the 500X8 can accelerate your coating production line.
