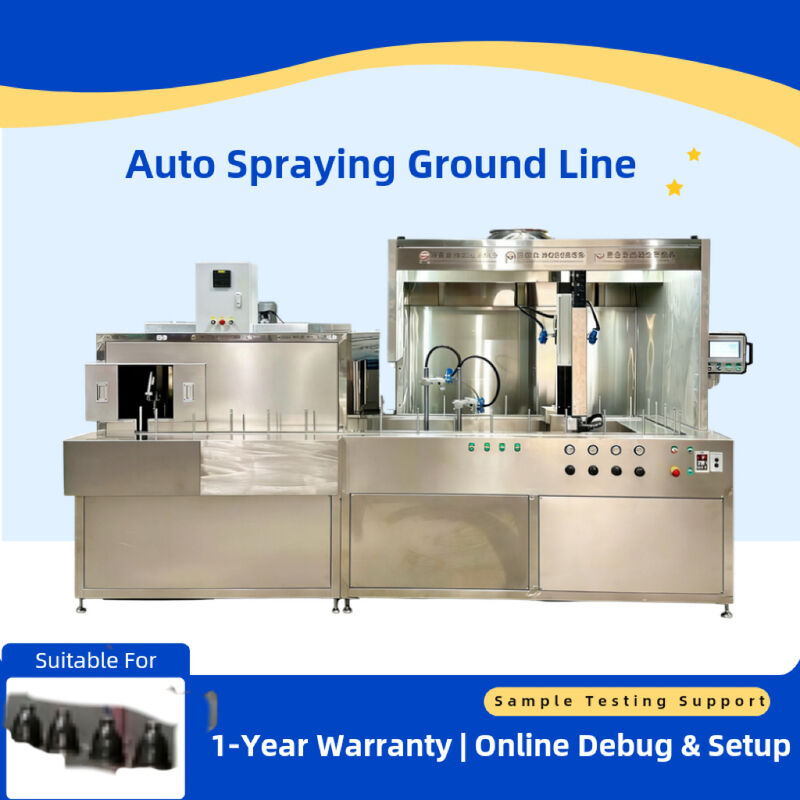

18.5 Mini Line 4-Axis Servo Spraying Machine with 360-Degree Workpiece Rotation
  • 18.5 Mini Line 4-Axis Servo Spraying Machine with 360-Degree Workpiece Rotation
  • 18.5 Mini Line 4-Axis Servo Spraying Machine with 360-Degree Workpiece Rotation
  • 18.5 Mini Line 4-Axis Servo Spraying Machine with 360-Degree Workpiece Rotation
  • 18.5 Mini Line 4-Axis Servo Spraying Machine with 360-Degree Workpiece Rotation
  • 18.5 Mini Line 4-Axis Servo Spraying Machine with 360-Degree Workpiece Rotation
  • 18.5 Mini Line 4-Axis Servo Spraying Machine with 360-Degree Workpiece Rotation
  • 18.5 Mini Line 4-Axis Servo Spraying Machine with 360-Degree Workpiece Rotation
  • 18.5 Mini Line 4-Axis Servo Spraying Machine with 360-Degree Workpiece Rotation

18.5 Mini Line 4-Axis Servo Spraying Machine with 360-Degree Workpiece Rotation

Product Details:
Place of Origin: China
Brand Name: ManSheng
Certification: CE, ISO 9001
Model Number: 18.5 Mini Line
Detail Information
Place of Origin:
China
Brand Name:
ManSheng
Certification:
CE, ISO 9001
Model Number:
18.5 Mini Line
Machine Body Material:
Stainless Steel, Aluminum, Steel
Spray Gun / Nozzle:
Mansheng Blue Gun 1.3
Machine Dimensions:
3500mm × 3000mm × 2000mm
Effective Stroke:
350mm × 200mm × 450mm
Spraying Method:
360-Degree Workpiece Rotation With Fixed Gun + Reciprocating Spraying
Drive Method:
4-Axis Precision Servo Drive
X Axis:
Horizontal (Left/Right)
Y Axis:
Vertical (Front/Back)
Z Axis:
Up/Down
R Axis:
Spray Gun Rotation
Control System:
Mansheng Touch Screen Control Series
Program Storage:
10000 Programs
Communication Port:
USB
Motor:
Leadshine
Motion Module:
High-Precision Motion Module
Power Supply:
Hugong
Pneumatic Components:
Shannaisi, Airtac
Electrical Components:
CHNT, Delixi, Omron
Control Buttons:
Tend
Touch Screen:
Kunlun Tongtai
Rated Voltage:
220VAC/50Hz
Air Pressure:
1.5-2.0MPa
Exhaust Port:
Round / 400mm
Power Consumption:
20KW/H
Highlight:

High Light

Highlight:

360-Degree Workpiece Rotation

,

4-Axis Precision Servo Drive

,

UV and Water-Based Paint Compatible

Trading Information
Minimum Order Quantity:
1
Price:
20294
Packaging Details:
wooden box
Payment Terms:
L/C,D/A,D/P,T/T,Western Union
Product Description
18.5 Mini Line 4-Axis Servo Spraying Machine
The Mansheng 18.5 Mini Line is a compact yet powerful 4-axis automatic spraying machine designed for high-efficiency production lines. Featuring 360-degree workpiece rotation with fixed gun spraying and reciprocating motion, it delivers uniform, high-quality coating for both UV paint and water-based paint applications. The 4-axis precision servo drive system ensures accurate motion control across X, Y, Z, and R axes.
Key Features
  • 360-degree workpiece rotation with fixed gun for complete surface coverage
  • Reciprocating spraying combined with rotation for uniform coating distribution
  • 4-axis precision servo drive (X, Y, Z, R) for versatile motion control
  • Compatible with both UV paint and water-based paint systems
  • Mansheng touch screen control series with 10000-level program storage
  • USB communication port for fast program upload and line changeovers
  • Effective stroke: 350mm * 200mm * 450mm (XYZ)
  • Compact footprint: 3500mm * 3000mm * 2000mm
  • Premium components: Leadshine motor, NSK-level precision module, Omron electrical
  • High-efficiency operation at 220VAC/50Hz, 1.5-2.0MPa air pressure
Technical Specifications
ParameterSpecification
Model18.5 Mini Line
Machine Body MaterialStainless Steel, Aluminum, Steel
Spray Gun / NozzleMansheng Blue Gun 1.3
Machine Dimensions3500mm * 3000mm * 2000mm
Effective Stroke350mm * 200mm * 450mm
Spraying Method360-Degree Workpiece Rotation with Fixed Gun + Reciprocating Spraying
Drive Method4-Axis Precision Servo Drive
Axis ConfigurationX (Horizontal), Y (Vertical), Z (Up/Down), R (Spray Gun Rotation)
Control SystemMansheng Touch Screen Control Series
Program Storage10000 Programs
Communication PortUSB
MotorLeadshine
Motion ModuleHigh-Precision Motion Module
Power SupplyHugong
Pneumatic ComponentsShannaisi, Airtac
Electrical ComponentsCHNT, Delixi, Omron
Control ButtonsTend
Touch ScreenKunlun Tongtai
Rated Voltage220VAC/50Hz
Air Pressure1.5-2.0MPa
Exhaust PortRound / 400mm
Power Consumption20KW/H
Applications
Ideal for automated inline spraying of small to medium-sized workpieces in industries including metal enclosures, plastic components, electronic device housings, automotive trim parts, and consumer goods manufacturing. Supports both UV-curable and water-based coating materials.
