| Place of Origin: | China |
| Brand Name: | ManSheng |
| Certification: | CE, ISO9001 |
| Model Number: | 300X6 |

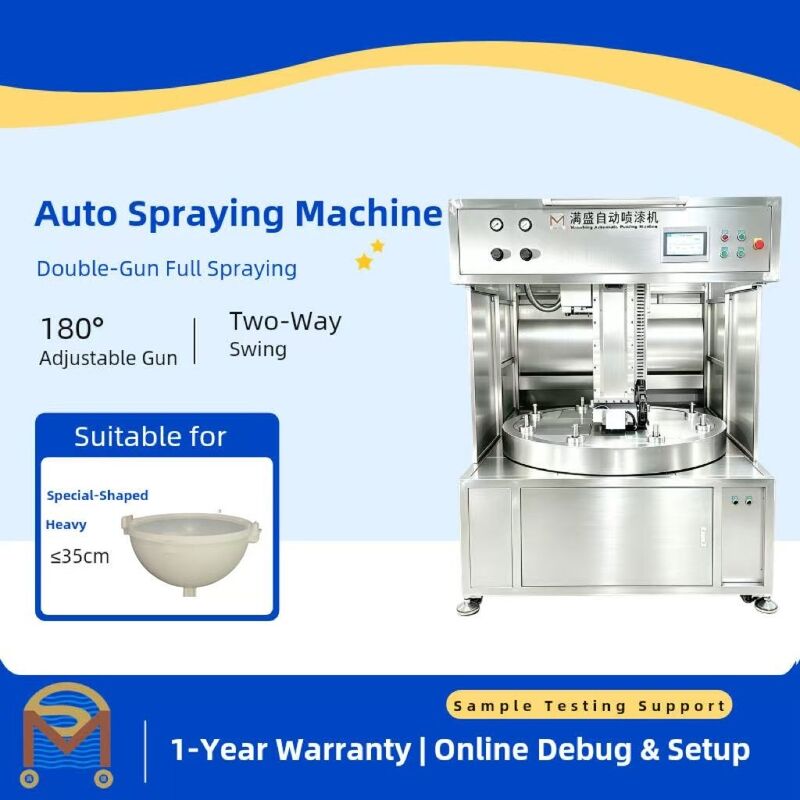

The ManSheng 300X6 is a six-axis rotary table automatic spray painting machine featuring dual-station continuous production capability. With dual reciprocating spray guns providing independent oil output control, ±0.2mm positioning accuracy, and a φ300×350mm spray range, this rotary table design maximizes throughput for high-volume industrial coating applications.
| Model | 300X6 |
| Body Material | Stainless Steel, Aluminum, Steel |
| Weight | 500KG |
| Overall Dimensions | 2210 (Rack 1640) × 1400 × 1900mm |
| Effective Travel | 400 × 220 × 560mm |
| Spray Range | φ300 × 350mm |
| Spray Gun / Nozzle | ManSheng Blue Gun 1.3mm |
| Spray Method | Reciprocating Spraying (2 Guns Independent Output) |
| Drive System | Six-Axis Precision Closed-Loop Stepper Drive |
| Positioning Accuracy | ±0.2MM |
| Control System | ManSheng Touch Screen Control Series |
| Program Storage | 10,000 Programs |
| Communication Port | USB |
| X Axis | Horizontal (Left-Right) |
| Y Axis | Vertical (Front-Back) |
| Z Axis | Up-Down |
| A Axis | Spray Gun Angle Adjustment |
| W Axis | Base Rotation |
| T Axis | Dual-Station Rotation |
| Rated Voltage | 220VAC / 50HZ |
| Air Supply Pressure | 0.6 - 0.8MPA |
| Exhaust Port | Round / 400mm |
| Power Consumption | 1.5KW/H |
