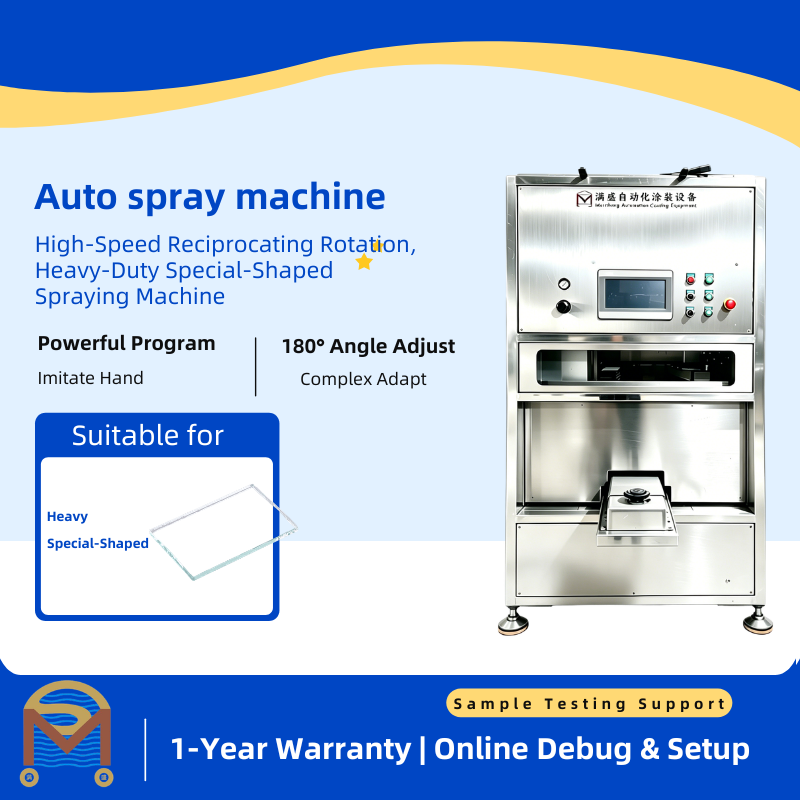

Glass Surface Automatic Spray Coating Machine for Water Based Paint Application

Name: Glass Surface Automatic Spray Coating Machine for Water Based Paint Application
Brand: Dongguan Mansheng Automation Equipment Co., Ltd
SKU: 500X8
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	ManSheng
Certification:	ISO 9001:2015
Model Number:	500X8

Detail Information

Place of Origin:

China

Brand Name:

ManSheng

Certification:

ISO 9001:2015

Model Number:

500X8

Machine Model:

500X8 Glass Sheet Spray Coating Machine

Body Material:

Stainless Steel, Aluminum, Steel

Weight:

480KG

Overall Dimensions:

2143×1500×2170mm (Frame 1260mm)

Spraying Range:

500×400×350mm

Spray Gun/Nozzle:

Mansheng Blue Gun 1.3

Positioning Accuracy:

±0.2mm

Spraying Method:

360° Tray Rotation Any Angle + Reciprocating Spray

Driving Method:

8-Axis Precision Servo Drive

Control System:

Mansheng Touch Screen Control Series

Program Storage:

10,000 Programs

Communication Port:

USB

Motor:

Xinje

Power Supply:

Hugong

Pneumatic Components:

Shanxi, Airtac

Electrical Components:

Chint, Delixi, Omron

Rated Voltage:

220VAC/50HZ

Air Supply Pressure:

0.6-0.8MPa

Power Consumption:

4.5KW/H

Application:

Glass Sheets, Glass Panels, Architectural Glass, Automotive Glass

Highlight:

High Light

Highlight:

8-Axis Servo Precision Spraying System

360° Rotary Reciprocating Glass Coating

High-Speed Automated Coating Machine

Product Description

Automated Coating System - Precision Spraying Device for Glass Sheet Panels

The ManSheng 500X8 is an 8-axis high-speed reciprocating spray coating machine specifically engineered for precision glass sheet coating applications. Equipped with a servo drive system and 360° tray rotation, it delivers rapid, uniform coating across glass panels and sheets with ±0.2mm positioning accuracy, ideal for architectural glass, automotive glass, and decorative glass production environments.

Core Specifications

Parameter	Specification
Machine Model	500X8 Glass Sheet Spray Coating Machine
Body Material	Stainless Steel, Aluminum, Steel
Weight	480KG
Overall Dimensions	214315002170mm (Frame 1260mm)
Spraying Range	500400350mm
Spray Gun / Nozzle	Mansheng Blue Gun 1.3
Positioning Accuracy	±0.2mm

Advanced Glass Spraying System

The 500X8 features a unique tray-based 360° rotation system that can position glass workpieces at any angle, combined with high-speed reciprocating spray motion. This dual-action system ensures complete surface coverage and consistent film thickness on glass sheets, making it ideal for complex-shaped glass components requiring multi-angle coating in a single cycle. Compatible with UV-curable coatings, water-based paints, and ceramic frits for glass surface treatment.

Parameter	Specification
Spraying Method	360° Tray Rotation Any Angle + Reciprocating Spray
Driving Method	8-Axis Precision Servo Drive

8-Axis Servo Motion System

Axis	Function
X-Axis	Horizontal (Left / Right)
Y-Axis	Vertical (Front / Back)
Z-Axis	Up / Down
R-Axis	Spray Gun Rotation
A-Axis	Spray Gun Angle Adjustment
T1-Axis	A Tray Station Rotation
T2-Axis	B Tray Station Rotation
W-Axis	Tray Position Switching

Control & Precision

Parameter	Specification
Control System	Mansheng Touch Screen Control Series
Touch Screen	Kunlun Tongtai
Program Storage	10,000 Programs
Communication Port	USB
Control Buttons	Tend

Premium Components

Component	Brand / Specification
Motor	Xinje
Motion Module	High-Precision Motion Module
Power Supply	Hugong
Pneumatic Components	Shanxi, Airtac
Electrical Components	Chint, Delixi, Omron

Power & Operating Requirements

Parameter	Specification
Rated Voltage	220VAC / 50HZ
Air Supply Pressure	0.6 - 0.8MPa
Air Outlet	Round / 400mm
Power Consumption	4.5KW/H

Glass Coating Applications

Specifically designed for precision coating of glass sheets, glass panels, architectural glass, automotive glass, decorative glass, mirror backing, and glass furniture components. Suitable for UV-curable coatings, water-based paints, ceramic frits, and protective film applications on flat and curved glass surfaces.

The ManSheng 500X8 defines the next generation of automated glass sheet coating with its 8-axis servo architecture, tray-based 360° rotation, and industrial-grade component selection. Contact us today to discuss how the 500X8 can optimize your glass production line.
