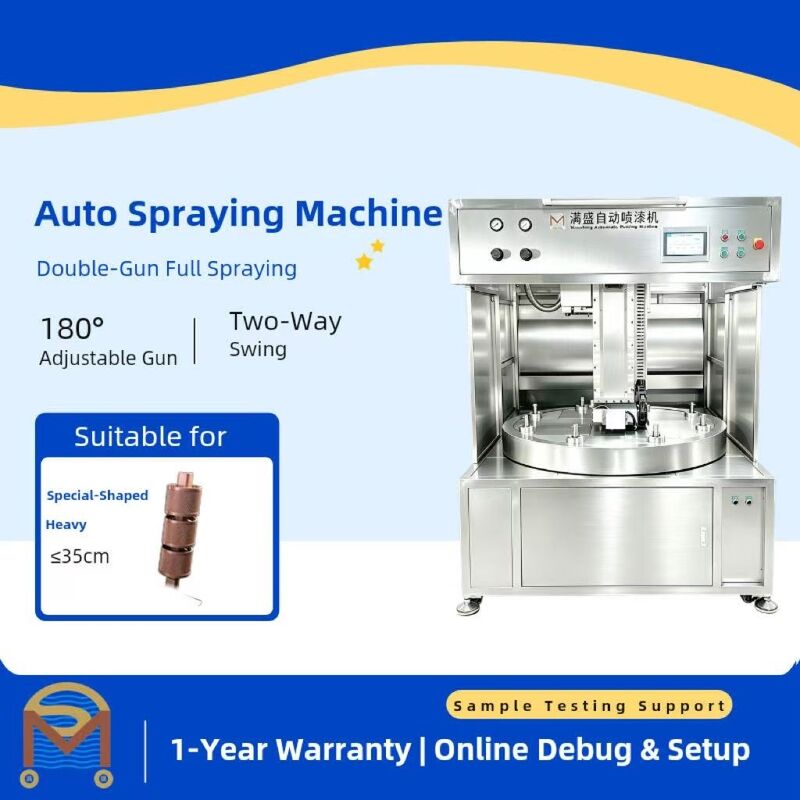

Six-Axis 300X6 Rotary Automatic Spray Painting Machine with Dual Independent Spray Guns
  • Six-Axis 300X6 Rotary Automatic Spray Painting Machine with Dual Independent Spray Guns
  • Six-Axis 300X6 Rotary Automatic Spray Painting Machine with Dual Independent Spray Guns
  • Six-Axis 300X6 Rotary Automatic Spray Painting Machine with Dual Independent Spray Guns
  • Six-Axis 300X6 Rotary Automatic Spray Painting Machine with Dual Independent Spray Guns

Six-Axis 300X6 Rotary Automatic Spray Painting Machine with Dual Independent Spray Guns

Product Details:
Brand Name: ManSheng
Certification: CE
Model Number: 300X6
Detail Information
Brand Name:
ManSheng
Certification:
CE
Model Number:
300X6
Body Material:
Stainless Steel, Aluminum, Steel
Weight:
500KG
Spray Gun Nozzle:
ManSheng Blue Gun 1.3mm
Machine Dimensions:
2210×1400×1900mm
Effective Stroke:
400×220×560mm
Spray Range:
φ300mm×350mm
Spray Method:
Reciprocating, Dual Independent Guns
Drive Method:
6-Axis Closed-Loop Stepper
X Axis:
Horizontal Left-Right
Y Axis:
Vertical Front-Back
Z Axis:
Up-Down
A Axis:
Gun Angle Rotation
W Axis:
Turntable Rotation
T Axis:
Dual-Station Rotation
Positioning Accuracy:
±0.2MM
Control System:
ManSheng Touch Screen
Program Storage:
10000 Programs
Communication Port:
USB
Motor:
Leadshine
Guide Rail:
HIWIN
Power Supply:
Hugong
Pneumatic Parts:
Sannais, Airtac
Electrical Parts:
CHINT, Delixi, Omron
Belt Material:
Rubber
Bearings:
NSK
Touch Screen:
Kunlun Tongtai
Rated Voltage:
220VAC/50HZ
Air Pressure:
0.6-0.8MPA
Exhaust Port:
Round 400mm
Power Consumption:
1.5KW/H
Highlight:

High Light

Highlight:

Six-Axis Rotary Spray Machine

,

Dual Independent Spray Guns

,

10000 Program Storage Capacity

Trading Information
Minimum Order Quantity:
1
Price:
USD12765
Packaging Details:
wooden box
Payment Terms:
Western Union,T/T,D/P,D/A,L/C
Product Description
Six-Axis 300X6 Rotary Automatic Spray Painting Machine with Dual Independent Spray Guns
The 300X6 is a six-axis rotary automatic spray painting machine engineered for precision industrial coating of medium to large-sized cylindrical and annular workpieces. Driven by a closed-loop stepper system with Leadshine motors and HIWIN guide rails, it delivers ±0.2MM positioning accuracy across a φ300mm*350mm spray area. Equipped with dual independent spray guns that can dispense paint separately, and a dual-station rotary turntable for continuous loading and spraying, the ManSheng touch screen controller supports up to 10000 programmable spray patterns for automated production lines.
Key Features
  • Six-axis precision closed-loop stepper drive system for multi-angle rotary spraying
  • Dual independent spray guns with separate paint output control for flexible coating
  • Dual-station rotary turntable enables simultaneous loading and spraying for higher throughput
  • ±0.2MM positioning accuracy with NSK bearings throughout the entire machine
  • 10000-level program memory with USB communication for easy pattern transfer
  • HIWIN linear guide rails paired with Leadshine motors for stable long-cycle operation
  • ManSheng touch screen controller with Kunlun Tongtai HMI for intuitive operation
  • Sannais and Airtac pneumatic components with CHINT, Delixi, and Omron electrical parts
  • Round 400mm exhaust port for efficient fume extraction at higher throughput
Six-Axis Configuration
AxisFunction
X AxisHorizontal (Left-Right)
Y AxisVertical (Front-Back)
Z AxisUp-Down
A AxisSpray Gun Angle
W AxisTurntable Rotation
T AxisDual-Station Rotation (Loading / Spraying)
Technical Specifications
ParameterSpecification
Machine Model300X6
Spray MethodReciprocating, Dual Independent Guns
Drive Method6-Axis Precision Closed-Loop Stepper
Spray Rangeφ300mm * 350mm
Effective Stroke400mm * 220mm * 560mm
Machine Dimensions2210mm (Frame 1640mm) * 1400mm * 1900mm
Spray Gun / NozzleManSheng Blue Gun 1.3mm
Positioning Accuracy±0.2MM
Body MaterialStainless Steel, Aluminum, Steel
Weight500KG
Control SystemManSheng Touch Screen Series
Program Storage10000 Programs
Communication PortUSB
MotorLeadshine
Guide RailHIWIN
Power SupplyHugong
Pneumatic PartsSannais, Airtac
Electrical PartsCHINT, Delixi, Omron
BearingsNSK (All Axes)
Touch ScreenKunlun Tongtai
Control ButtonsTend
Belt MaterialRubber
Rated Voltage220VAC / 50HZ
Air Pressure0.6 - 0.8 MPA
Exhaust PortRound / 400mm
Power Consumption1.5 KW/H
Applications

The 300X6 rotary spray system is suitable for automated surface finishing of medium to large-sized cylindrical components including metal rings, bearing housings, automotive wheel hubs, pipe fittings, industrial rollers, and other rotationally symmetric workpieces requiring consistent, precision coating. Its dual-station rotary design and independent dual-gun configuration make it ideal for continuous production environments where throughput and coating uniformity are critical.

Tags:

hardware spray painting machine,

metal parts coating equipment,

industrial metal coater
