200X7D Double-Station Double-Clamp Automatic Spray Painting Machine

Product Details:

Brand Name:	ManSheng
Certification:	CE

Detail Information

Brand Name:

ManSheng

Certification:

Body Material:

Stainless Steel, Aluminum, Steel

Weight:

280KG

Spray Gun:

WA101 0.5mm

Machine Dimensions:

1296x1070x1782mm

Effective Stroke:

380x220x240mm

Spraying Area:

220x340mm

Spraying Mode:

Dual-Station Reciprocating

Drive Mode:

7-Axis Closed-Loop Stepper

Axis Configuration:

X,Y,Z,A,T1,T2,W

Positioning Accuracy:

±0.2mm

Control System:

ManSheng Touch Screen

Program Storage:

10000 Programs

Motor:

Leadshine

Guide Rail:

HIWIN

Power Supply:

Hugong

Pneumatic Components:

SNS, AirTAC

Electrical Components:

CHINT, Delixi, Omron

Belt Material:

Rubber

Bearings:

NSK

Touch Screen:

Kunlun Tongtai

Rated Voltage:

220VAC/50Hz

Air Pressure:

0.4-0.6MPa

Exhaust Port:

Round 200mm

Power Consumption:

0.75KW/H

Highlight:

High Light

Highlight:

Automatic Spray Painting Machine

Double-Station Spray Coating Equipment

7-Axis CNC Painting Robot

Trading Information

Minimum Order Quantity:

Price:

USD6882

Packaging Details:

wooden box

Payment Terms:

L/C,D/A,D/P,T/T,Western Union

Product Description

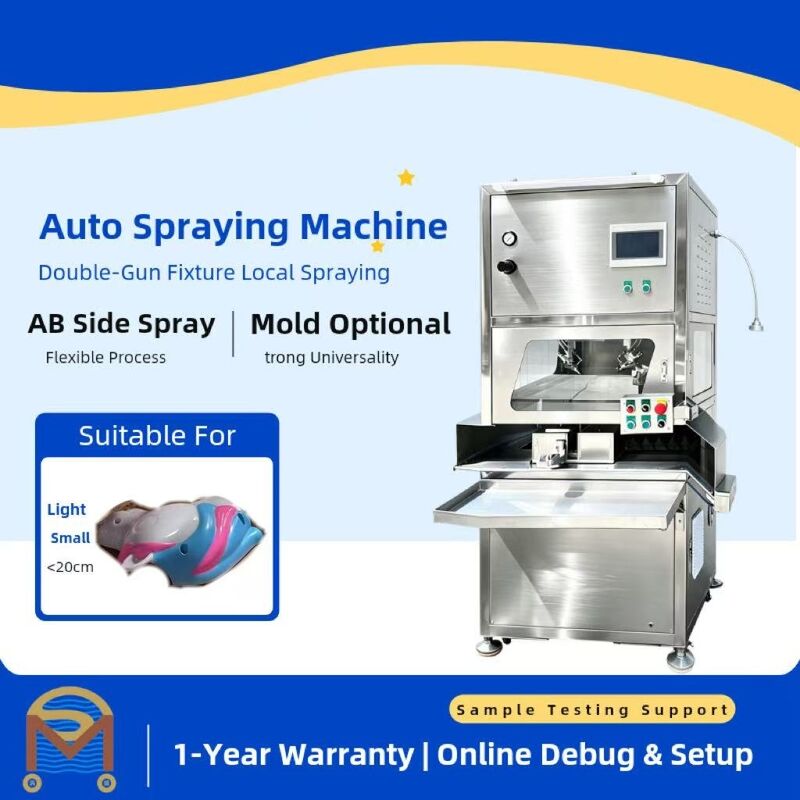

200X7D Double-Station Double-Clamp Automatic Spray Painting Machine

The 200X7D is a high-precision double-station double-clamp automatic spray painting machine, engineered for efficient and consistent surface coating of toys, figurines, and industrial components. With a 7-axis closed-loop stepper drive system and ±0.2mm positioning accuracy, it delivers superior repeatability and paint finish quality.

Key Highlights

Drive System

7-Axis Closed-Loop Stepper

Accuracy

±0.2mm

Spray Gun

WA101 / 0.5mm

Spraying Mode

Dual-Station Reciprocating

Program Storage

10,000 Programs

Control

ManSheng Touch Screen

Technical Specifications

Parameter	Specification
Model	200X7D
Body Material	Stainless Steel, Aluminum, Steel
Weight	280KG
Machine Dimensions	1296 * 1070 * 1782mm
Effective Stroke	380 * 220 * 240mm
Spraying Area	220 * 340mm
Positioning Accuracy	±0.2mm
Axis Configuration	X, Y, Z, A, T1, T2, W (7-Axis)
Rated Voltage	220VAC / 50Hz
Air Pressure	0.4-0.6MPa
Power Consumption	0.75KW/H
Exhaust Port	Round / 200mm

Premium Components

Component	Brand
Motor	Leadshine
Guide Rail	HIWIN
Bearings	NSK
Pneumatic Components	SNS, AirTAC
Electrical Components	CHINT, Delixi, Omron
Power Supply	Hugong
Touch Screen	Kunlun Tongtai
Control Button	TEND
Belt	Rubber
