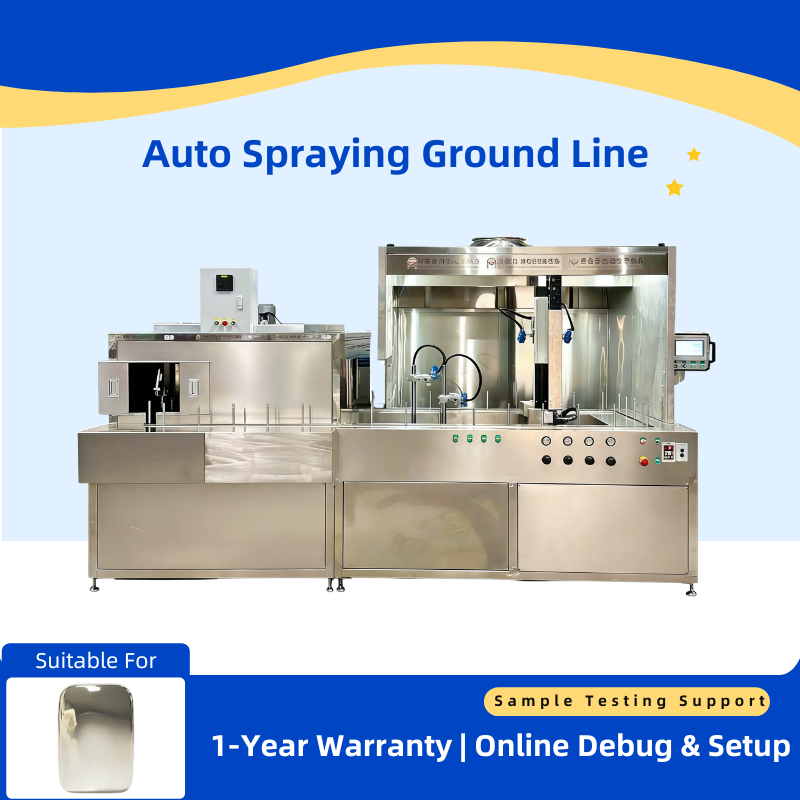

Glass Bottle Automatic Spray Coating Machine for Water Based Paint Application
  • Glass Bottle Automatic Spray Coating Machine for Water Based Paint Application
  • Glass Bottle Automatic Spray Coating Machine for Water Based Paint Application
  • Glass Bottle Automatic Spray Coating Machine for Water Based Paint Application
  • Glass Bottle Automatic Spray Coating Machine for Water Based Paint Application

Glass Bottle Automatic Spray Coating Machine for Water Based Paint Application

Product Details:
Place of Origin: Guangdong, Dongguan
Brand Name: Mansheng
Certification: ISO 9001:2015
Model Number: ground line (customized)
Detail Information
Place of Origin:
Guangdong, Dongguan
Brand Name:
Mansheng
Certification:
ISO 9001:2015
Model Number:
ground line (customized)
Highlight:

High Light

Highlight:

Skincare Glass Bottle Spray Coating Equipment

,

Precision Automated Coating Line System

,

Dual Gun Glass Surface Spraying Machine

Trading Information
Minimum Order Quantity:
1
Price:
Starting from $16,552 USD
Packaging Details:
Wooden Box
Payment Terms:
L/C,D/A,D/P,T/T,Western Union
Product Description
Automated Coating System | Precision Spraying Equipment for Skincare Glass Bottles
The Man Sheng Automated Spray Coating Line is a precision automated spray coating system engineered for skincare glass bottle surface treatment. Featuring 360-degree high-speed rotary spraying and dual independent WA101 spray guns, the coating line delivers uniform, high-quality coating on serum bottles, toner bottles, essential oil bottles, lotion containers, and skincare glass packaging. With a positioning accuracy of 0.05mm and a compact 845x740mm footprint, this machine integrates seamlessly into skincare packaging production lines.
Core Specifications
Parameter Specification
Model Automated Spray Coating Line
Body Material Stainless Steel, Aluminum, Steel
Weight 210KG
Overall Dimensions 845 x 740 x 1580mm (Frame 715mm)
Effective Stroke 400 x 400 x 120mm
Spraying Range 400 x 400mm
Spray Gun / Nozzle WA101 Spray Gun 0.5mm
Positioning Accuracy 0.05mm
Advanced Glass Bottle Spraying System
The system features dual WA101 spray guns (0.5mm nozzle) with independent oil output control, enabling simultaneous multi-angle coating of skincare glass bottles. The 360-degree rotation combined with reciprocating spray motion ensures complete and uniform coverage across curved glass surfaces, including bottle necks, jar rims, and decorative embossing. This system handles primers, base coats, metallic finishes, UV-curable coatings, and protective clear coats for skincare-grade glass packaging.
Parameter Specification
Spraying Mode 360 Degree Rotation + Reciprocating Spraying (2 Guns, Independent Oil Output)
Driving Mode Closed-Loop Stepper Drive
Precision Motion System
The system is equipped with a closed-loop stepper drive system featuring Leadshine motors, HIWIN linear guides, and NSK bearings. The axes configuration includes X (Left/Right), Y (Front/Back), Z (Up/Down), U (Gun 360 Degree Rotation), V (Station A Rotation), and W (Station B Rotation), delivering 0.05mm positioning accuracy essential for skincare-grade glass finishing.
Control System
Parameter Specification
Control System Touch Screen
Program Storage 10,000+ Programs
Communication Port USB
The intuitive touch screen interface allows operators to store up to 10,000 coating programs for different bottle shapes, sizes, and coating specifications. USB data port enables easy program transfer and backup.
Premium Components
Component Brand / Specification
Motor Leadshine
Linear Guide HIWIN
Bearing NSK
Spray Gun WA101 0.5mm
Power and Operating Requirements
Parameter Specification
Rated Voltage 220VAC / 50Hz
Air Supply Pressure 0.4 - 0.6MPa
Exhaust Port Round / 200mm
Power Consumption 0.55KW/H
Skincare Glass Bottle Applications
  • Serum and essential oil glass bottles
  • Toner and lotion glass containers
  • Cream and moisturizer glass jars
  • Facial mist and spray glass bottles
  • Dropper and pipette glass packaging
  • Frosted and matte finish glass bottles
  • UV-curable and metallic coating finishes
The Man Sheng Automated Spray Coating Line delivers high-precision, energy-efficient coating for the skincare glass packaging industry. With its compact footprint, dual-station design, and industrial-grade components, the coating line is the ideal solution for manufacturers seeking consistent, high-quality glass bottle finishing. Contact us today to discuss your skincare glass bottle coating requirements.
