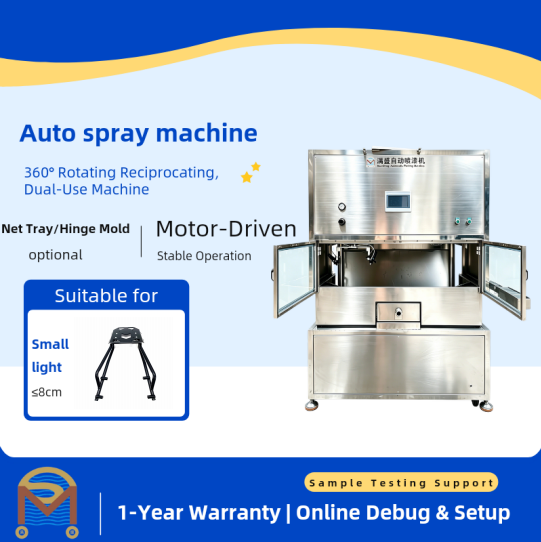

Automatic Spraying Machine for Surface Coating of Motorcycle Rear Seat Components
Automatic Spraying Machine for Surface Coating of Motorcycle Rear Seat Components
Product Details:
Place of Origin:
Dongguan
Brand Name:
Mansheng
Model Number:
500X7
Detail Information
Place of Origin:
Dongguan
Brand Name:
Mansheng
Model Number:
500X7
Machine Dimensions:
1200 * 2250 * 2370mm
Machine Weight:
700kg
Power Supply:
220V 50Hz
Power:
0.95KW/H
Air Pressure:
0.6-0.8Mpa
Air Consumption:
0.3m³/min
Exhaust Fan:
370W
Water Curtain Pump:
370W
Axis Count:
7-axis (X/Y/Z/A/B/C/D)
Drive Mode:
Closed-loop Stepper Motor
Guide Rail/Slider:
HIWIN
Bearing:
NSK Japan
Motor:
Leisai
Electrical Components:
Chint / Delixi / Omron
Pneumatic Components:
Aideke
Repeat Positioning Accuracy:
±0.05mm
Programming Method:
Touch Screen Teach-in
Program Storage:
10,000 Sets
Spray Gun:
2 Pcs
Fixture Compatibility:
Mesh Disc + Hinge Mold
Spraying Modes:
Full Spraying / Partial Spraying
Workpiece Height Limit:
≤8cm
Net Disc Working Area:
500 * 500mm
Loading Station:
AB Dual-station
Highlight:
High Light
Highlight:
Automatic Motorcycle Parts Coating System
,
Precision Rear Seat Surface Spraying
,
Model 500X7 CNC Spray Machine
Trading Information
Minimum Order Quantity:
1
Price:
12271
Packaging Details:
Wooden box
Payment Terms:
T/T,D/P,D/A,L/C
Product Description
Automatic Spraying Machine for Surface Coating of Motorcycle Rear Seat Components
Versatile CNC-driven automatic spraying system engineered for precision surface coating across auto parts, motorcycle accessories, plastic components, and small hardware workpieces. Supports both full and partial spraying modes with flexible fixture compatibility.
Application Industries
Auto Spare Parts
Medium & small plastic interior parts
Vehicle decorative housings
Auto hardware & fasteners
Irregular auto components
Motorcycle Accessories
Motorcycle plastic shells
Decorative plastic parts
Small metal components
Irregular motorcycle casings
General Manufacturing
Plastic parts & components
Medium & small hardware workpieces
3C electronic housings
Small wooden products & hinge mold parts
Spraying Capabilities
Flexible Spraying Modes
Full surface spraying for complete coverage
Partial / selective area spraying
Compatible with hinge molds and mesh disc fixtures
Workpiece Specifications
Optimized for workpieces within 8cm height
Handles irregular geometries with precision
Quick changeover between part types
Industry Challenges & Solutions
Multi-Surface Inefficiency
Ordinary reciprocating machines spray only one surface per cycle without automatic flipping. Manual turnover for irregular workpieces causes low throughput.
Excessive Paint Waste
Traditional machines spray entire surfaces even when only partial coating is needed, leading to significant material waste and higher costs.
Single-station equipment cannot load or unload workpieces during spraying cycles, creating idle time and limiting overall production capacity.
Product Advantages
7-Axis Servo Double-Station Design, High Productivity
Seven-axis precision closed-loop stepper drive with independent 360-degree rotation for Station A & B. The motor-driven central rotating platform is programmable and runs more smoothly than air-cylinder structures. While one station sprays, the other loads/unloads simultaneously, eliminating idle time.
One Machine for Two Modes, Multi-Fixture Compatibility
Compatible with mesh disc and hinge mold fixtures. Supports flexible switching between full spraying and partial spraying. Small workpieces on 500x500mm mesh discs or large-size hinge molds — all handled by one machine to meet diverse order demands.
Positioning accuracy up to ±0.05mm with dual spray guns independently controlling paint output for precise flow adjustment. Uniform coating on grooves, curved surfaces and edges — effectively reduces missing coating, sagging and color difference to improve yield.
Fully Enclosed Water Curtain, Safe & Eco-Friendly
Fully enclosed working cabin equipped with large oil & mist adsorption water curtain to capture paint mist efficiently. No huge investment on dust-free workshop required. Model A features explosion-proof switch and full accordion mesh cover for easy cleaning and maintenance.
Premium Brand Components for Durability
Machine body available in stainless steel, aluminum or steel. Equipped with Leisai motor, HIWIN guide rail, NSK bearing, Hugong power supply, Chint/Delixi/Omron electric parts, Aideke pneumatic components. Power consumption only 0.95KW/H — energy-saving with low failure rate.
Easy Operation & Low Training Threshold
User-friendly touch screen control system with visual programming. Ordinary workers can operate after simple training — no need to hire high-paid professional technicians, effectively reducing labor costs.
Auto Parts CoatingMotorcycle Parts SprayingPlastic Surface TreatmentHardware Finishing3C Housing Spray8cm Height Capacity
