200X7B Hinge Mold Automatic Spraying Machine | 7-Axis Precision CNC Painting Equipment
  • 200X7B Hinge Mold Automatic Spraying Machine | 7-Axis Precision CNC Painting Equipment
  • 200X7B Hinge Mold Automatic Spraying Machine | 7-Axis Precision CNC Painting Equipment
  • 200X7B Hinge Mold Automatic Spraying Machine | 7-Axis Precision CNC Painting Equipment
  • 200X7B Hinge Mold Automatic Spraying Machine | 7-Axis Precision CNC Painting Equipment
  • 200X7B Hinge Mold Automatic Spraying Machine | 7-Axis Precision CNC Painting Equipment
  • 200X7B Hinge Mold Automatic Spraying Machine | 7-Axis Precision CNC Painting Equipment
  • 200X7B Hinge Mold Automatic Spraying Machine | 7-Axis Precision CNC Painting Equipment
  • 200X7B Hinge Mold Automatic Spraying Machine | 7-Axis Precision CNC Painting Equipment
  • 200X7B Hinge Mold Automatic Spraying Machine | 7-Axis Precision CNC Painting Equipment

200X7B Hinge Mold Automatic Spraying Machine | 7-Axis Precision CNC Painting Equipment

Product Details:
Brand Name: ManSheng
Model Number: 200X7B
Detail Information
Brand Name:
ManSheng
Model Number:
200X7B
Machine Model:
200X7B
Body Material:
Stainless Steel, Aluminum, Steel
Weight:
230KG
Spray Gun / Nozzle:
WA101 0.5mm
Machine Dimensions:
1246x1000x1768mm (Frame 825mm)
Effective Travel:
290x240x160mm
Spray Range:
200x200mm
Spray Method:
360° Rotary + Reciprocating Dual-Gun
Drive System:
7-Axis Closed-Loop Stepper
X Axis:
Horizontal (Left-Right)
Y Axis:
Vertical (Front-Back)
Z Axis:
Up-Down
R Axis:
Dual-Gun 360° Rotation + Reciprocation
T1 Axis:
Station A Rotation
T2 Axis:
Station B Rotation
W Axis:
Base Plate Rotation
Positioning Accuracy:
±0.2mm
Control System:
ManSheng Touch Screen Series
Program Storage:
10,000 Programs
Communication Port:
USB
Motor Brand:
Leadshine
Guide Rail Brand:
HIWIN
Power Supply Brand:
Hugong
Pneumatic Components:
SNAS, AirTAC
Electrical Components:
CHINT, Delixi, Omron
Belt Material:
Rubber
Control Buttons:
TEND
Bearings:
NSK
Touch Screen:
Kunlun Tongtai
Rated Voltage:
220VAC/50Hz
Air Pressure:
0.4-0.6MPa
Exhaust Port:
Circular 200mm
Power Consumption:
0.75KW/H
Highlight:

High Light

Highlight:

Hinge Mold Spraying Machine

,

7-Axis Automatic Paint Equipment

,

Dual-Gun Rotary Painting System

Trading Information
Minimum Order Quantity:
1
Price:
USD7176
Packaging Details:
wooden box
Payment Terms:
L/C,D/A,D/P,T/T
Product Description
200X7B Hinge Mold Automatic Spraying Machine | 7-Axis Precision CNC Painting Equipment

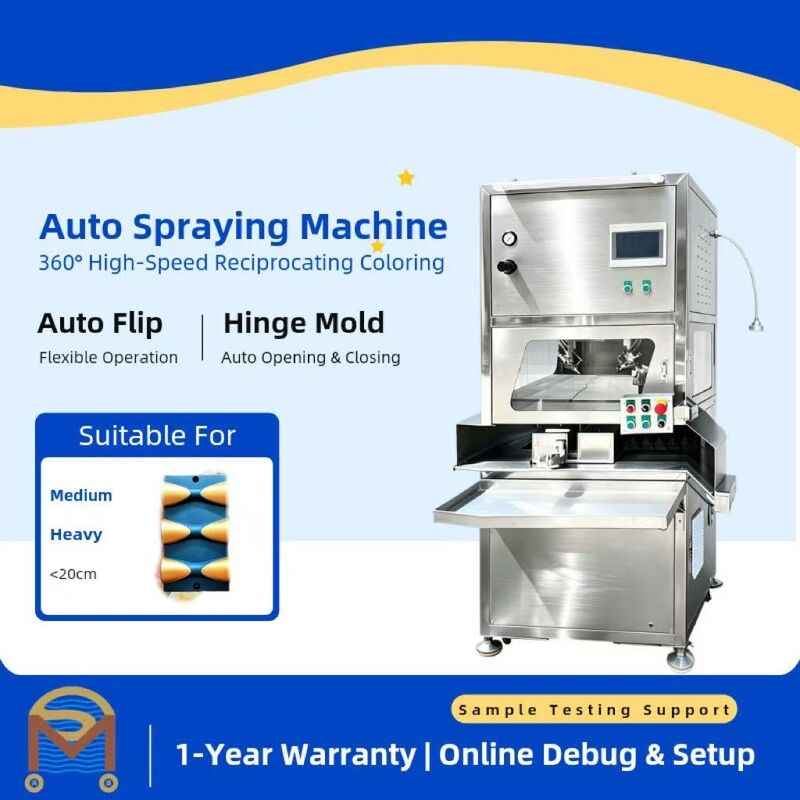

The 200X7B is a high-precision automatic spraying machine specifically engineered for hinge mold decorative surface coating. Featuring a 7-axis closed-loop stepper drive system with 360-degree high-speed rotary dual-gun spraying technology, it delivers ±0.2mm positioning accuracy for consistent, industrial-grade finishing results.
Key Features
  • 360-degree high-speed rotary spraying combined with reciprocating motion, two spray guns with independent oil output control
  • 7-axis precision closed-loop stepper drive system (X/Y/Z/R/T1/T2/W) for complex surface coverage
  • ±0.2mm positioning accuracy ensures uniform coating on every cycle
  • ManSheng touch screen control system with 10,000-program storage capacity, USB communication support
  • Dual-station design (Station A + Station B) for continuous production efficiency
  • Built with premium components: Leadshine motors, HIWIN guide rails, NSK bearings, Omron electrical parts
Technical Specifications
Model200X7B
Body MaterialStainless Steel, Aluminum, Steel
Weight230KG
Spray Gun / NozzleWA101 0.5mm
Machine Dimensions1246x1000x1768mm (Frame 825mm)
Effective TravelX:290mm Y:240mm Z:160mm
Spray Range200x200mm
Spray Method360-degree Rotary + Reciprocating Dual-Gun
Drive System7-Axis Closed-Loop Stepper
Positioning Accuracy±0.2mm
Control SystemManSheng Touch Screen Series
Program Storage10,000 Programs
Rated Voltage220VAC/50Hz
Air Pressure0.4-0.6MPa
Power Consumption0.75KW/H
7-Axis System
X AxisHorizontal (Left-Right)
Y AxisVertical (Front-Back)
Z AxisUp-Down
R AxisDual-Gun 360-degree Rotation + Reciprocation
T1 AxisStation A Rotation
T2 AxisStation B Rotation
W AxisBase Plate Rotation
Component Brands
MotorLeadshine
Guide RailHIWIN
Power SupplyHugong
Pneumatic ComponentsSNAS, AirTAC
Electrical ComponentsCHINT, Delixi, Omron
BearingsNSK
Touch ScreenKunlun Tongtai
Control ButtonsTEND
Belt MaterialRubber
Communication PortUSB
Exhaust PortCircular 200mm
