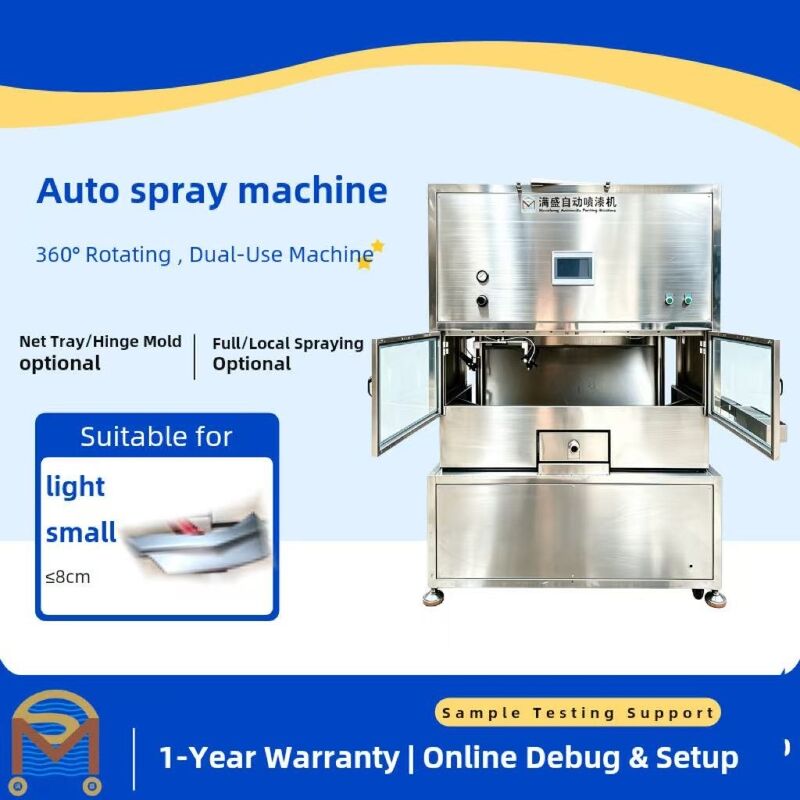

500X7A Hinge Mold Automatic Spray Painting Machine
  • 500X7A Hinge Mold Automatic Spray Painting Machine
  • 500X7A Hinge Mold Automatic Spray Painting Machine
  • 500X7A Hinge Mold Automatic Spray Painting Machine
  • 500X7A Hinge Mold Automatic Spray Painting Machine
  • 500X7A Hinge Mold Automatic Spray Painting Machine

500X7A Hinge Mold Automatic Spray Painting Machine

Product Details:
Brand Name: ManSheng
Model Number: 500X7A
Detail Information
Brand Name:
ManSheng
Model Number:
500X7A
Material:
Stainless Steel, Aluminum, Steel
Weight:
450KG
Spray Gun:
ManSheng Blue Gun, 1.3mm
Overall Dimensions:
2450×1500×2100mm
Effective Stroke:
520×670×260mm
Spraying Range:
500×500mm
Spraying Method:
360° Rotation + Reciprocating Spray
Drive System:
7-Axis Closed-Loop Stepper
Positioning Accuracy:
±0.05mm
Control System:
ManSheng Touch Screen
Program Storage:
10000 Programs
Communication Port:
USB
Motor:
Leadshine
Guide Rail:
HIWIN
Power Supply:
Hugong
Pneumatic Components:
SNS, AirTAC
Electrical Components:
Chint, Delixi, Omron
Synchronous Belt:
Rubber
Control Button:
TEND
Bearing:
NSK
Touch Screen:
Kunlun Tongtai
Rated Voltage:
220VAC/50Hz
Air Pressure:
0.6-0.8MPa
Exhaust Port:
Round, 400mm
Power Consumption:
0.95KW/H
Highlight:

High Light

Highlight:

Hinge Mold Automatic Spray Painting Machine

,

7-Axis Dual Gun Spray Coating Machine

,

500X7A Automatic Spray Painting Machine

Trading Information
Minimum Order Quantity:
1
Price:
USD 12176
Packaging Details:
wooden box
Payment Terms:
L/C,D/A,D/P,T/T
Product Description
500X7A Hinge Mold Automatic Spray Painting Machine

The 500X7A is a high-precision automatic spray painting machine engineered for hinge molds and larger metal parts. Equipped with a 7-axis precision closed-loop stepper drive and dual spray guns, it delivers uniform, high-quality coating with 360° high-speed rotation and reciprocating spray for efficient manufacturing.

Key Features
  • 7-axis precision closed-loop stepper drive (X/Y/Z/R/T1/T2/W) for flexible motion
  • Dual spray guns with 360° high-speed rotation and independent oil output
  • ±0.05mm positioning accuracy for high-precision coating quality
  • 500*500mm spraying range with 520*670*260mm effective stroke
  • ManSheng touch screen control with 10,000 program storage
  • Stainless steel, aluminum and steel body for durability
Technical Specifications
  • Machine Weight: 450KG
  • Overall Dimensions: 2450 * 1500 * 2100 mm
  • Spray Gun: ManSheng Blue Gun, 1.3mm caliber
  • Spraying Method: 360° high-speed rotation + reciprocating spray (2 guns with independent oil output)
  • Drive System: 7-axis precision closed-loop stepper drive
  • Positioning Accuracy: ±0.05mm
  • Control System: ManSheng touch screen series
  • Program Storage: 10,000 programs
  • Rated Voltage: 220VAC/50Hz
  • Air Pressure: 0.6-0.8MPa
  • Power Consumption: 0.95KW/H
  • Exhaust Port: Round, 400mm
