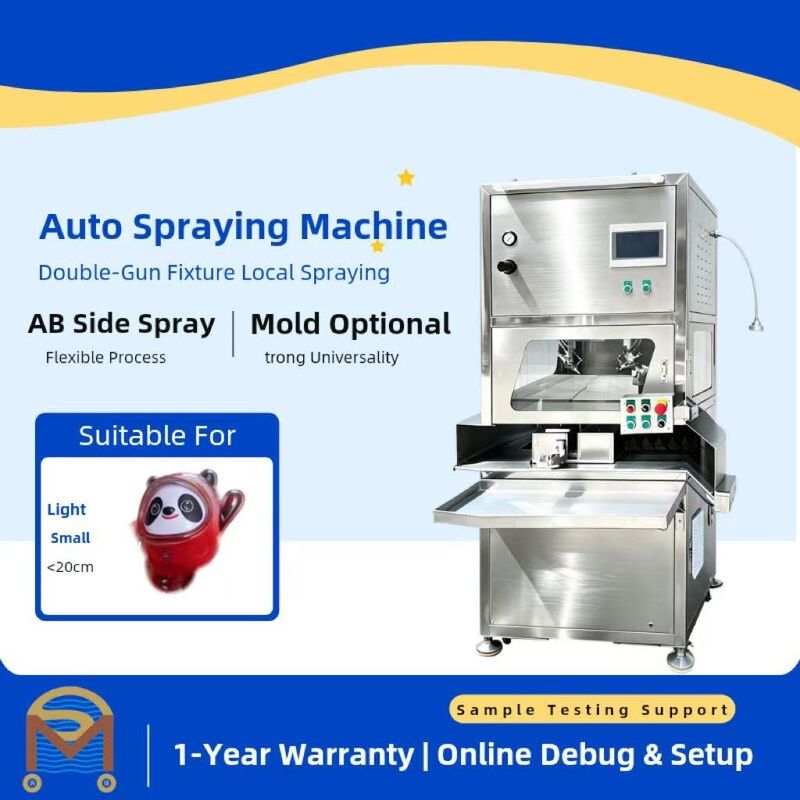

Dual-Station Dual-Clamp Mold Automatic Spray Painting Machine for Plastic Parts
  • Dual-Station Dual-Clamp Mold Automatic Spray Painting Machine for Plastic Parts
  • Dual-Station Dual-Clamp Mold Automatic Spray Painting Machine for Plastic Parts
  • Dual-Station Dual-Clamp Mold Automatic Spray Painting Machine for Plastic Parts
  • Dual-Station Dual-Clamp Mold Automatic Spray Painting Machine for Plastic Parts
  • Dual-Station Dual-Clamp Mold Automatic Spray Painting Machine for Plastic Parts
  • Dual-Station Dual-Clamp Mold Automatic Spray Painting Machine for Plastic Parts
  • Dual-Station Dual-Clamp Mold Automatic Spray Painting Machine for Plastic Parts
  • Dual-Station Dual-Clamp Mold Automatic Spray Painting Machine for Plastic Parts
  • Dual-Station Dual-Clamp Mold Automatic Spray Painting Machine for Plastic Parts

Dual-Station Dual-Clamp Mold Automatic Spray Painting Machine for Plastic Parts

Product Details:
Model Number: 200X7D
Detail Information
Model Number:
200X7D
Model:
200X7D
Body Material:
Stainless Steel, Aluminum, Steel
Weight:
280KG
Spray Gun:
WA101 0.5mm Nozzle
Overall Dimensions:
1296 X 1070 X 1782 Mm
Effective Stroke:
380 X 220 X 240 Mm
Spraying Range:
220 X 340 Mm
Spraying Method:
Dual-Station Reciprocating
Drive Method:
Seven-Axis Closed-Loop Stepper
Positioning Accuracy:
±0.2mm
Control System:
Mansheng Touch Screen
Program Storage:
10000 Programs
Motor:
Leisai
Guide Rail:
HIWIN
Power Supply:
Hugong
Pneumatic Components:
Sun Ruis, Aideke
Electrical Components:
Chint, Delixi, Omron
Bearings:
NSK
Touch Screen:
Kunlun Tongtai
Rated Voltage:
220VAC 50HZ
Air Pressure:
0.4-0.6 MPA
Exhaust Port:
Circular 200mm
Power Consumption:
0.75KW/H
Highlight:

High Light

Highlight:

Dual-Station Dual-Clamp Mold Spraying Machine

,

Seven-Axis Precision Stepper Drive System

,

Automatic Plastic Parts Coating Equipment

Trading Information
Minimum Order Quantity:
1
Price:
USD6882
Packaging Details:
wooden box
Payment Terms:
L/C,D/A,D/P,T/T
Product Description
200X7D Dual-Station Dual-Clamp Mold Automatic Spray Painting Machine

The 200X7D is a high-efficiency dual-station dual-clamp mold automatic spray painting machine purpose-built for uniform surface coating of plastic parts. Its twin-workstation design with two clamping molds enables continuous reciprocating spraying, significantly boosting throughput while maintaining a consistent, high-quality finish.

Key Features
  • Dual-Station Dual-Clamp Mold Design: Two workstations with twin clamping molds allow loading on one station while the other sprays, minimizing idle time and maximizing production output.
  • Seven-Axis Precision Closed-Loop Stepper Drive: Seven independently controlled axes deliver ±0.2mm positioning accuracy for stable, repeatable coating paths.
  • Fine Atomization: A WA101 spray gun with a 0.5mm nozzle produces a fine, uniform mist for smooth film coverage on detailed parts.
  • Intelligent Touch Screen Control: The Mansheng control series stores up to 10,000 programs and supports USB one-click import and export for rapid production changeover.
  • Premium Components: Leisai motors, HIWIN guide rails, NSK bearings, Hugong power supply, Chint, Delixi and Omron electrical components, plus Sun Ruis and Aideke pneumatic components ensure long-term reliability.
Axis Configuration
AxisFunction
XHorizontal (Left / Right)
YVertical (Front / Back)
ZUp / Down
ADual Spray Gun Swing Angle
T1A Dual-Station Rotation
T2B Dual-Station Rotation
WBase Rotation
Technical Specifications
ParameterValue
Model200X7D
Body MaterialStainless Steel, Aluminum, Steel
Weight280KG
Spray Gun / NozzleWA101 0.5mm
Overall Dimensions1296 (Frame 855) x 1070 x 1782 mm
Effective Stroke380 x 220 x 240 mm
Spraying Range220 x 340 mm
Spraying MethodDual-Station Reciprocating
Drive MethodSeven-Axis Closed-Loop Stepper
Positioning Accuracy±0.2mm
Control SystemMansheng Touch Screen
Program Storage10,000 Programs
Communication PortUSB
MotorLeisai
Guide RailHIWIN
Power SupplyHugong
Pneumatic ComponentsSun Ruis, Aideke
Electrical ComponentsChint, Delixi, Omron
Control ButtonsTiande
BearingsNSK
Touch ScreenKunlun Tongtai
Rated Voltage220VAC / 50HZ
Air Supply Pressure0.4 - 0.6 MPA
Exhaust PortCircular 200mm
Power Consumption0.75KW/H
