| Brand Name: | Mansheng |
| Model Number: | 500X7A |

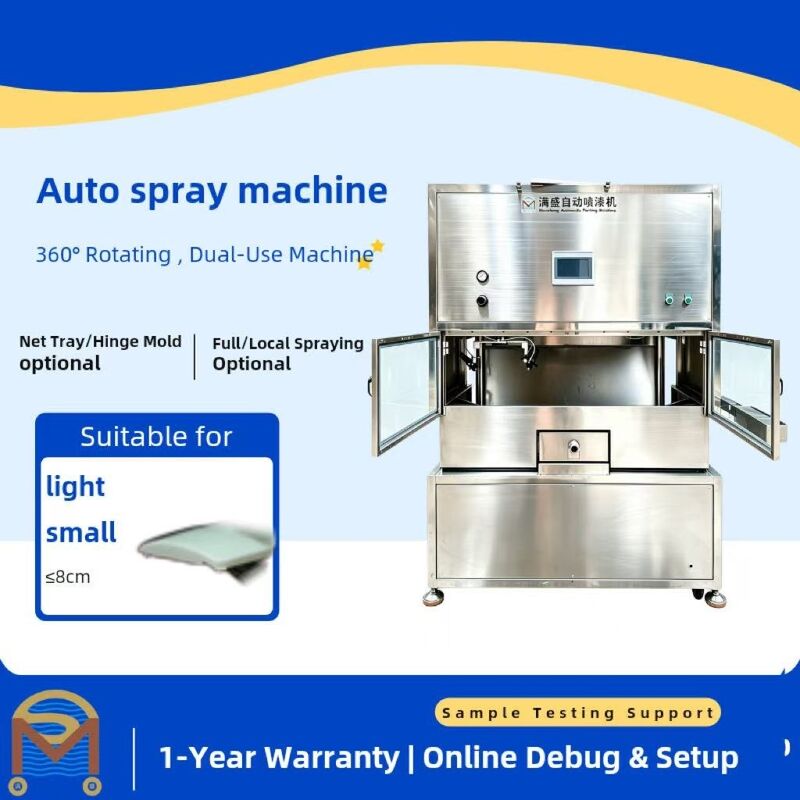

This automatic spraying coating machine is specifically designed for surface painting treatment of motorcycle accessories. The system provides efficient, consistent, and high-quality coating application for various motorcycle components, ensuring uniform coverage and professional finish results.
| Machine Model | 500X7A Hinge Mold Automatic Spray Painting Machine |
|---|---|
| Body Material | Stainless Steel, Aluminum, Steel |
| Weight | 450KG |
| Overall Dimensions | 2450 (Frame 1460) x 1500 x 2100 mm |
| Rated Voltage | 220VAC/50HZ |
| Air Supply Pressure | 0.6-0.8MPA |
| Power Consumption | 0.95KW/H |
| Spray Gun / Nozzle | Mansheng Blue Gun 1.3 |
|---|---|
| Spraying Range | 500 x 500 mm |
| Effective Stroke | 520 x 670 x 260 mm |
| Spraying Method | 360-Degree High-Speed Rotary Spraying + Reciprocating Spraying (2 guns with independent oil output) |
| Exhaust Port | Round / 400mm |
| Drive System | 7-Axis Precision Closed-Loop Stepper Drive |
|---|---|
| X Axis | Horizontal (Left-Right) |
| Y Axis | Vertical (Front-Back) |
| Z Axis | Up-Down |
| R Axis | Dual Spray Guns 360-Degree High-Speed Rotation + Reciprocating |
| T1 Axis | Station A Rotation |
| T2 Axis | Station B Rotation |
| W Axis | Base Rotation |
| Positioning Accuracy | +/-0.05MM |
| Control System | Mansheng Touch Screen Control Series |
|---|---|
| Program Storage | 10000 Programs |
| Communication Port | USB |
| Touch Screen | Kunlun Tongtai |
| Motor | Leadshine |
|---|---|
| Guide Rail | HIWIN |
| Power Supply | Hugong |
| Pneumatic Components | SNS, AirTAC |
| Electrical Components | Chint, Delixi, Omron |
| Timing Belt Material | Rubber |
| Control Buttons | TEND |
| Bearings | NSK |
