Automatic Spraying Machine for Electric Vehicle Plastic Trunk Housing

Name: Automatic Spraying Machine for Electric Vehicle Plastic Trunk Housing
Brand: Dongguan Mansheng Automation Equipment Co., Ltd
SKU: 600X5B
Price: 11779 USD
Availability: InStock

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	Mansheng
Model Number:	600X5B

Detail Information

Place of Origin:

Dongguan, China

Brand Name:

Mansheng

Model Number:

600X5B

Spraying Range:

600 X 600 Mm

Effective Stroke:

600 X 900 X 260 Mm (XYZ)

Positioning Accuracy:

±0.2mm

Spraying Method:

360-Degree High-Speed Rotating + Reciprocating (2 Guns With Independent Paint Output)

Drive Method:

Five-Axis Precision Closed-Loop Stepper Drive

Spray Gun / Nozzle:

Mansheng Blue Gun 1.3

Control System:

Mansheng Touch Screen Control Series

Program Storage:

10,000-Level Programs

Rated Voltage:

220VAC / 50HZ

Power Consumption:

0.95KW/H

Highlight:

High Light

Highlight:

automatic spraying machine for EV trunk

electric vehicle plastic trunk sprayer

auto trunk housing spraying machine

Trading Information

Minimum Order Quantity:

Price:

11779

Packaging Details:

Wooden box

Payment Terms:

L/C,T/T,D/P,D/A

Product Description

Automatic Spraying Machine for Electric Vehicle Plastic Trunk Housing

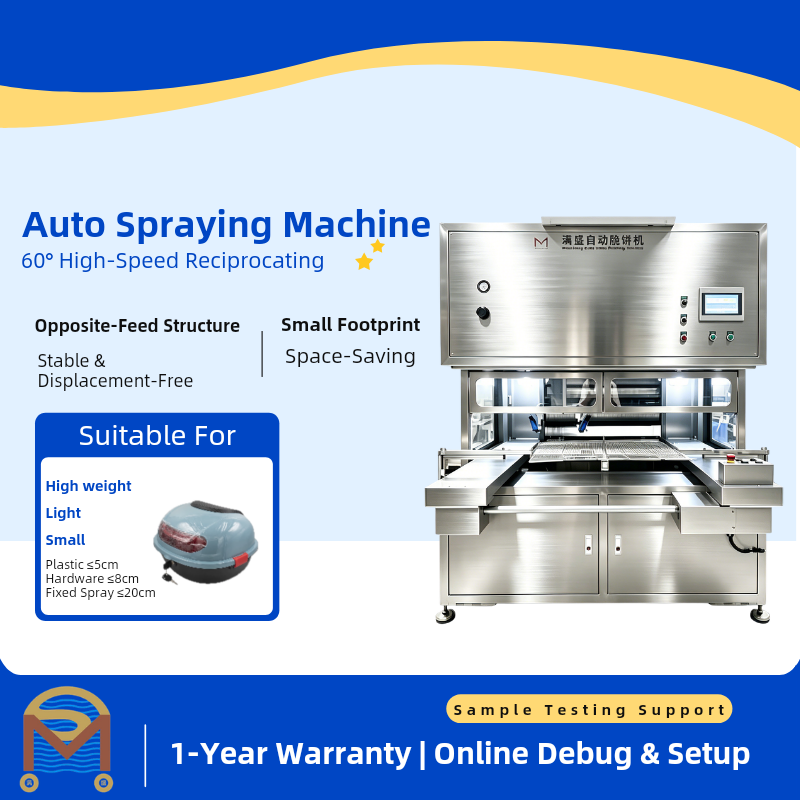

600X5B Automatic Spraying Machine for Electric Vehicle Plastic Trunk Housing Surface Coating This 600X5B spray gun automatic painting machine is purpose-built for high-efficiency surface coating of electric vehicle plastic trunk housings, tailgate inner/outer panels, trunk covers and other large plastic body components. Combining 360-degree high-speed rotating spraying with reciprocating spraying, its two independently dispensing spray guns deliver uniform film thickness and complete edge coverage on curved plastic surfaces, recessed ribs and complex contours at ±0.2mm positioning accuracy, ensuring a smooth, defect-free finish for EV plastic parts before assembly.

Key Features

360-Degree High-Speed Rotating Spraying: Rotary spraying combined with reciprocating motion fully covers the curved surfaces, edges, ribs and corners of plastic trunk housings in one pass, eliminating blind spots, edge misses and costly touch-up rework.
Two Independently Dispensing Spray Guns: Each Mansheng blue gun controls its own paint output, allowing simultaneous coating of large surfaces and edges with reduced overspray and paint waste for a lower per-piece coating cost on EV plastic parts.
Five-Axis Precision Closed-Loop Stepper Drive: X, Y, Z, R and G axes provide stable, repeatable coating paths with ±0.2mm accuracy, keeping film thickness consistent across every batch of plastic trunk housing workpieces.
Automatic Upper and Lower Material Tables: The G axis automatically moves material tables in and out for fast loading and unloading of bulky plastic trunk housings, supporting continuous production without interrupting the spray cycle.
Enclosed Adsorption Water Curtain: The built-in water curtain efficiently traps paint mist during plastic part coating, keeping the workshop clean and compliant without requiring a costly dust-free facility.
Premium Branded Components: HIWIN guide rails, NSK bearings, Leadshine motors, Hugong power supply and Chint, Delixi, Omron electrical components guarantee long-term reliability and consistent coating quality for EV production lines.

Axis Configuration

Axis	Function
X	Horizontal (Left / Right)
Y	Vertical (Front / Back)
Z	Up / Down
R	Dual Spray Guns 360-Degree High-Speed Rotation + Reciprocating
G	Automatic In/Out Upper and Lower Material Tables

Technical Specifications

Parameter	Value
Model	600X5B
Body Material	Stainless Steel, Aluminum, Steel / Cold Plate (Optional)
Weight	480KG
Spray Gun / Nozzle	Mansheng Blue Gun 1.3
Overall Dimensions	2508 (Frame 1440) x 1500 x 1910 mm
Effective Stroke	600 x 900 x 260 mm (XYZ)
Spraying Range	600 x 600 mm
Spraying Method	360-Degree High-Speed Rotating + Reciprocating (2 Guns with Independent Paint Output)
Drive Method	Five-Axis Precision Closed-Loop Stepper Drive
X-Axis	Horizontal (Left/Right)
Y-Axis	Vertical (Front/Back)
Z-Axis	Up/Down
R-Axis	Dual Spray Guns 360-Degree High-Speed Rotation + Reciprocating
G-Axis	Automatic In/Out Upper and Lower Material Tables
Positioning Accuracy	±0.2mm
Control System	Mansheng Touch Screen Control Series
Program Storage	10,000-Level Programs
Communication Port	USB
Motor	Leadshine
Guide Rail	HIWIN
Power Supply	Hugong
Pneumatic Components	Sun Ruis, AirTAC
Electrical Components	Chint, Delixi, Omron
Timing Belt Material	Rubber
Control Buttons	Tiande
Machine Bearings	NSK
Touch Screen	Kunlun Tongtai
Rated Voltage	220VAC / 50HZ
Air Supply Pressure	0.6-0.8MPA
Exhaust Port Shape/Size	Circular / 400mm
Power Consumption	0.95KW/H
Max Load	15KG per Mesh Disc

Applications

Ideal for automatic surface coating of electric vehicle plastic trunk housings, trunk covers, tailgate panels, bumper-related plastic trims and other medium-to-large plastic body components. Also suitable for spraying metal structural parts, mesh-disc loaded small components and general plastic parts with workpiece height within 20cm. Supports water-based and oil-based industrial paint systems for plastic and metal substrates.
