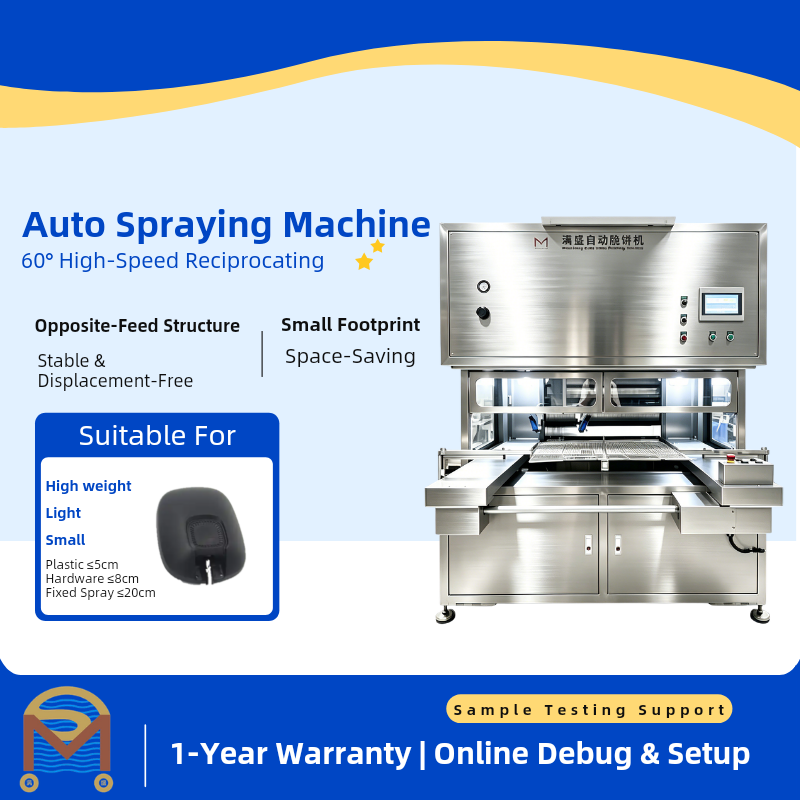

Automatic Spraying Machine for Small Electric Vehicle Rearview Mirror
  • Automatic Spraying Machine for Small Electric Vehicle Rearview Mirror
  • Automatic Spraying Machine for Small Electric Vehicle Rearview Mirror
  • Automatic Spraying Machine for Small Electric Vehicle Rearview Mirror
  • Automatic Spraying Machine for Small Electric Vehicle Rearview Mirror
  • Automatic Spraying Machine for Small Electric Vehicle Rearview Mirror
  • Automatic Spraying Machine for Small Electric Vehicle Rearview Mirror
  • Automatic Spraying Machine for Small Electric Vehicle Rearview Mirror

Automatic Spraying Machine for Small Electric Vehicle Rearview Mirror

Product Details:
Place of Origin: Dongguan, China
Brand Name: Mansheng
Certification: CE, ISO
Model Number: 600X5B
Detail Information
Place of Origin:
Dongguan, China
Brand Name:
Mansheng
Certification:
CE, ISO
Model Number:
600X5B
Product Type:
Automatic Spraying Machine
Application:
Small Electric Vehicle Rearview Mirror Parts Surface Coating
Operation Mode:
Automatic
Packaging:
Wooden Box
Payment Terms:
L/C, D/A, D/P, T/T
Minimum Order Quantity:
1 Unit
Model:
600X5B
Machine Type:
Scattered-Gun Automatic Spray Painting Machine
Body Material:
Stainless Steel, Aluminum, Steel / Cold-Rolled Sheet (Optional)
Weight:
480KG
Spray Gun / Nozzle:
Mansheng Blue Gun 1.3
Overall Dimensions:
2508 (Frame 1440) X 1500 X 1910 Mm
Effective Stroke:
600 X 900 X 260 Mm (XYZ)
Spraying Range:
600 X 600 Mm
Spraying Method:
360-Degree High-Speed Rotating + Reciprocating (2 Guns With Independent Paint Output)
Highlight:

High Light

Highlight:

Automatic EV Mirror Spraying Machine

,

Small Electric Vehicle Mirror Coating

,

Consistent Automatic Spray Finishing

Trading Information
Minimum Order Quantity:
1
Price:
11779
Packaging Details:
Wooden box
Payment Terms:
L/C,D/A,D/P,T/T
Product Description
Automatic Spraying Machine for Small Electric Vehicle Rearview Mirror
This 600X5B five-axis rotary automatic spray painting machine is purpose-built for uniform surface coating of small electric vehicle rearview mirror parts, including mirror housings, mirror shells, mirror base covers and compact plastic and metal mirror fittings. Combining 360-degree high-speed rotating spraying with reciprocating spraying, two independently dispensing spray guns coat the front, edges and inner recesses of each mirror part in a single pass, delivering even film thickness, complete edge coverage and a fine finish at ±0.2mm positioning accuracy.
Built on a five-axis precision closed-loop stepper platform with the Mansheng touch screen control series, the machine keeps a stable, repeatable painting path across long production runs, helping mirror and automotive parts workshops raise yield, cut paint waste and reduce labor cost while maintaining consistent color and gloss batch after batch.
Key Features
  • 360-Degree Rotary + Reciprocating Spraying: Rotary motion combined with reciprocating travel fully coats the faces, edges and recesses of mirror parts with a uniform finish, eliminating blind spots and extra touch-up work.
  • Two Independently Dispensing Spray Guns: Each gun controls its own paint output for balanced coverage of mirror shells and rims, reducing overspray and paint waste for a lower per-piece cost.
  • Five-Axis Precision Closed-Loop Stepper Drive: X, Y, Z, R and G axes provide ±0.2mm positioning accuracy for stable, repeatable painting paths on every batch of small mirror parts.
  • Automatic Upper & Lower Layer Worktable: The G axis feeds worktables in and out automatically so mirror parts keep positioning during high-speed spraying, enabling continuous, high-output production.
  • 10,000-Program Storage with USB Import: The Mansheng touch screen control stores 10,000 programs and imports them via USB, so switching between different mirror sizes, shapes and colors on the line is quick and simple.
  • Enclosed Water Curtain Collection: The built-in adsorption water curtain efficiently collects paint mist for a cleaner workshop without the high investment of a dust-free facility.
  • Premium Branded Components: HIWIN guide rails, NSK bearings, Leadshine motors, Hugong power supply and Chint, Delixi, Omron electrical parts ensure long-term reliability and stable coating quality.
Technical Specifications
Parameter Value
Model 600X5B
Machine Type Scattered-Gun Automatic Spray Painting Machine
Body Material Stainless Steel, Aluminum, Steel / Cold-Rolled Sheet (Optional)
Weight 480KG
Spray Gun / Nozzle Mansheng Blue Gun 1.3
Overall Dimensions 2508 (Frame 1440) x 1500 x 1910 mm
Effective Stroke 600 x 900 x 260 mm (XYZ)
Spraying Range 600 x 600 mm
Spraying Method 360-Degree High-Speed Rotating + Reciprocating (2 Guns with Independent Paint Output)
Drive Method Five-Axis Precision Closed-Loop Stepper Drive
Positioning Accuracy ±0.2mm
Control System Mansheng Touch Screen Control Series
Program Storage 10,000-Level Programs
Communication Port USB
Motor Leadshine
Guide Rail HIWIN
Power Supply Hugong
Pneumatic Components SNAS, AirTAC
Electrical Components Chint, Delixi, Omron
Timing Belt Material Rubber
Control Buttons Tiande
Machine Bearings NSK
Touch Screen Kunlun Tongtai
Rated Voltage 220VAC / 50HZ
Air Supply Pressure 0.6-0.8MPA
Exhaust Port Shape/Size Circular / 400mm
Power Consumption 0.95KW/H
Five-Axis System Configuration
Axis Function
X Horizontal (Left / Right)
Y Vertical (Front / Back)
Z Up / Down
R Dual Spray Guns 360-Degree Rotation + Reciprocating
G Automatic In / Out Upper & Lower Layer Worktable
Application
Ideal for uniform surface painting of small electric vehicle rearview mirror parts such as mirror housings, mirror shells, mirror base covers, plastic mirror bodies, decorative mirror trims and compact metal mirror fittings. Also suitable for batch coating of small automotive and motorcycle plastic and metal parts, miniature hardware, small 3C shells and other tiny irregular workpieces that need full coverage of faces, edges and recesses.
Why Choose Us
  • Precision-Driven Quality: ±0.2mm closed-loop positioning and dual-gun rotary spraying deliver consistent, repeatable film thickness and color batch after batch.
  • Higher Output, Lower Cost: Automatic upper and lower layer worktable feeding with 360-degree composite spraying raises productivity while reducing overspray, paint waste and labor cost.
  • Proven Industrial Components: HIWIN, NSK, Leadshine, Hugong and Omron parts are used throughout for long service life and stable long-run operation.
  • Flexible Production Switching: 10,000-program storage with USB import enables fast changeover between different mirror sizes, shapes and colors.
  • Cleaner, Safer Workshop: The built-in enclosed water curtain collects paint mist efficiently, lowering environmental management cost compared with open spraying.
FAQ
Q: What workpieces is this 600X5B machine designed for?
A: It is designed for small electric vehicle rearview mirror parts, including mirror housings, mirror shells and base covers, as well as small automotive and motorcycle plastic and metal fittings that require full-surface coating.
Q: What is its spraying range and accuracy?
A: It offers a 600 x 600 mm spraying range with ±0.2mm positioning accuracy, backed by a five-axis closed-loop stepper drive.
Q: Can the two spray guns work independently?
A: Yes. The two spray guns dispense paint independently, so the faces, edges and recesses of mirror parts can be coated together for faster, cleaner results.
Q: How fast can it switch between different mirror models?
A: The Mansheng touch screen control stores 10,000 programs and imports them via USB, so switching between different mirror sizes, shapes and colors on the line is quick and simple.
Q: What are the power and air requirements?
A: The machine runs on 220VAC / 50HZ with 0.6-0.8MPA air supply pressure and consumes only 0.95KW/H.
