Automatic Coating Equipment for Electric Scooter Rearview Mirror Housing

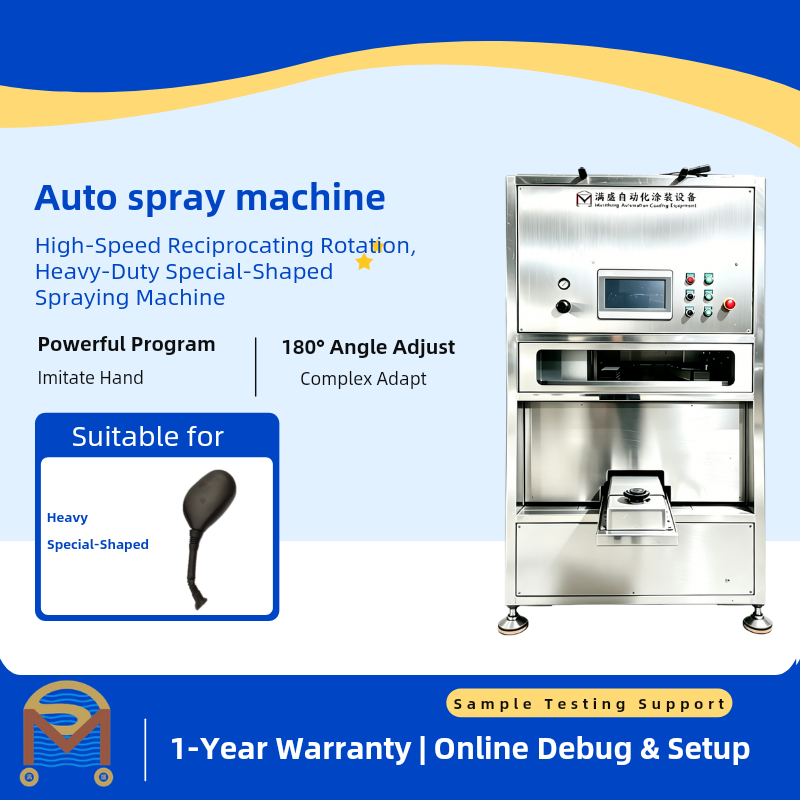

This 500X8 eight-axis high-speed reciprocating automatic spray painting machine is purpose-built for uniform surface coating of electric scooter rearview mirror housings, including mirror shells, base covers, decorative trims and compact plastic and metal mirror fittings.

Powered by an 8-axis precision servo drive, the material tray rotates a full 360 degrees in any direction while the spray gun swings 180 degrees and runs reciprocating strokes, closely simulating a skilled operator's hand motion to coat flat faces, curved edges and inner recesses of each mirror housing in a single pass with even film thickness and a fine finish.

Built on heavy-duty precision linear modules and the Mansheng touch screen control series, the machine holds a stable, repeatable painting path across long production runs and maintains ±0.2mm positioning accuracy. Combined with synchronous dual AB stations and 10,000-program storage, it helps scooter and automotive parts workshops increase yield, reduce paint waste and lower labor costs while maintaining consistent color and gloss batch after batch.

• 8-Axis Precision Servo Drive: X, Y, Z, R, A, T1, T2 and W axes support complex arc and circular motion tracks. The material tray rotates 360 degrees forward and reverse while the spray gun swings 180 degrees, highly simulating manual spraying to coat gaps and dead corners for a uniform finish.
• Heavy-Duty Precision Linear Modules: Different from low-cost optical-axis structures, the precision linear modules offer higher load capacity and stable long-term continuous operation, ideal for large and heavy irregular scooter mirror housings.
• Dual AB Station Synchronous Operation: Workpieces are loaded on Station A while spraying runs on Station B simultaneously, eliminating idle waiting and significantly boosting production efficiency.
• High Positioning Accuracy & Flexible Production: ±0.2mm positioning accuracy with storage for 10,000 spraying programs. Easy programming on the touch screen enables quick switching between different scooter and motorcycle parts, with program import/export via USB for mass replication.
• High-Speed Reciprocating + 360-Degree Tray Rotation: A 500 x 400 x 350 mm spraying range with rotary plus reciprocating motion fully covers faces, edges and recesses of mirror housings, reducing overspray and touch-up work.
• Tailored for Auto & Motorcycle Parts: Perfect for curved and concave-convex irregular metal and plastic parts, replacing manual operation for automatic mass production and consistently reducing defective coating rates.
• Premium Branded Components: Xinje motor, Hugong power supply, Sunres and AirTAC pneumatic parts, Chint, Delixi and Omron electrical components, Tiande control buttons and MCGS touch screen ensure long-term reliability and stable coating quality.

Ideal for uniform surface painting of electric scooter rearview mirror housings such as mirror shells, mirror base covers, decorative mirror trims, plastic mirror bodies and compact metal mirror fittings. Also suitable for batch coating of motorcycle and automotive plastic and metal parts, small hardware, mini 3C shells and other irregular workpieces that require full coverage of faces, edges and recesses.

• Precision-Driven Quality: ±0.2mm servo positioning with 8-axis rotary and reciprocating motion delivers consistent, repeatable film thickness and color batch after batch.
• Higher Output, Lower Cost: Dual AB station synchronous operation with 360-degree composite spraying raises productivity while reducing overspray, paint waste and labor costs.
• Heavy-Duty Reliability: Precision linear modules and branded components (Xinje, Hugong, AirTAC, Omron and more) ensure stable long-run operation on heavy irregular parts.
• Flexible Production Switching: 10,000-program storage with USB import enables fast changeover between different scooter mirror sizes, shapes and colors.
• Tailored Coating Solution: Purpose-built for curved and concave-convex irregular auto and motorcycle parts, consistently lowering defective coating rates.
