Automatic Painting Machine for Electric Vehicle Wheel Hub
  • Automatic Painting Machine for Electric Vehicle Wheel Hub
  • Automatic Painting Machine for Electric Vehicle Wheel Hub
  • Automatic Painting Machine for Electric Vehicle Wheel Hub
  • Automatic Painting Machine for Electric Vehicle Wheel Hub

Automatic Painting Machine for Electric Vehicle Wheel Hub

Product Details:
Place of Origin: Dongguan, China
Brand Name: Mansheng
Certification: CE, ISO
Model Number: 300X6
Detail Information
Place of Origin:
Dongguan, China
Brand Name:
Mansheng
Certification:
CE, ISO
Model Number:
300X6
Body Material:
Stainless Steel / Aluminum / Steel
Spraying Range:
300mm * 300mm
Spraying Mode:
360 Rotation + Reciprocating
Driving Mode:
6-Axis Closed-Loop Stepper Drive
Positioning Accuracy:
+/-0.05mm
Control System:
Mansheng Touch Screen Control
Program Storage:
10,000+ Programs
Communication Port:
USB
Core Components:
Leadshine Motor / HIWIN Guide / NSK Bearing
Rated Voltage:
220VAC / 50Hz
Air Supply Pressure:
0.6-0.8MPa
Exhaust Port:
Round / 400mm
Power Consumption:
0.95KW/H
Application:
EV Wheel Hub Surface Coating
Highlight:

High Light

Highlight:

300mm EV Wheel Hub Spray Range

,

6-Axis Precision Auto Coating

,

Dual Gun 360 Degree Hub Coating

Trading Information
Minimum Order Quantity:
1
Price:
12907
Packaging Details:
Wooden box
Payment Terms:
L/C,D/A,D/P,T/T
Product Description

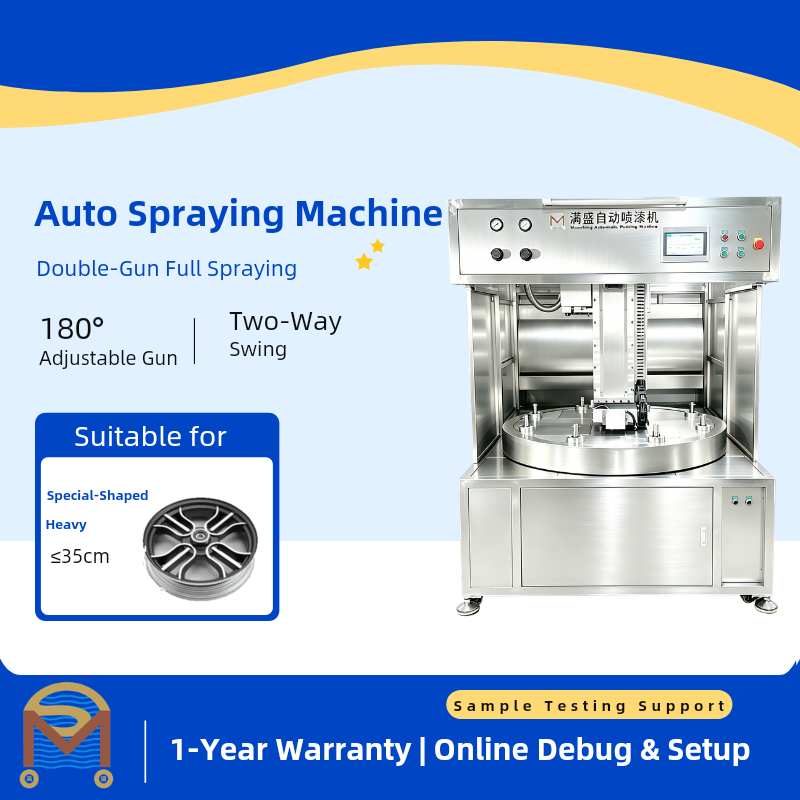

Automatic Painting Machine for Electric Vehicle Wheel Hub
300X6 Automatic Painting Machine is a high-efficiency coating solution engineered for electric vehicle (EV) wheel hub surface spraying. Built by Mansheng, it combines 6-axis closed-loop precision control with dual independent spray guns to deliver uniform, defect-free paint coverage on complex wheel hub geometries.
Technical Specifications
Parameter Specification
Model 300X6
Brand Mansheng
Body Material Stainless Steel / Aluminum / Steel
Spray Gun / Nozzle Mansheng Blue Gun, 1.3mm
Spraying Range 300mm * 300mm
Spraying Mode 360° High-Speed Rotation + Reciprocating (2 guns, independent oil output)
Driving Mode 6-Axis Precision Closed-Loop Stepper Drive
Positioning Accuracy ±0.05mm
Control System Mansheng Touch Screen Control Series
Program Storage 10,000+ Programs
Communication Port USB
Core Components Leadshine Motor / HIWIN Linear Guide / NSK Bearing
Rated Voltage 220VAC / 50Hz
Air Supply Pressure 0.6-0.8MPa
Exhaust Port Round / 400mm
Power Consumption 0.95KW/H
Key Features & Benefits
  • 300mm Precision Spray Range: 300mm * 300mm spraying area with dual-station rotation design, ideal for EV wheel hubs and medium-sized circular metal parts.
  • 6-Axis Closed-Loop Control: ±0.05mm positioning accuracy driven by Leadshine closed-loop stepper motors, ensuring consistent coating on curved and spoke surfaces.
  • Dual Independent Guns 360° Rotation: 2 Mansheng blue spray guns (1.3mm nozzle) with separate oil output, supporting 360° high-speed rotation plus reciprocating spraying for full hub coverage.
  • Heavy-Duty Industrial Build: HIWIN linear guides, NSK bearings and a stable stainless steel frame ensure long-term reliability under continuous production.
  • Energy-Saving & Easy Operation: Only 0.95KW/H power consumption, Mansheng touch screen with 10,000+ programmable sequences and USB port, and a 400mm round exhaust for a clean working environment.
Application
Widely suitable for surface spraying and coating of electric vehicle wheel hubs, hub caps and other round metal components. Also applicable for auto parts, motorcycle parts and general metal finishing. Supports both water-based and oil-based industrial paint systems.

Tags:

auto parts spray machine,

motorcycle parts coating equipment,

motorcycle frame sprayer
