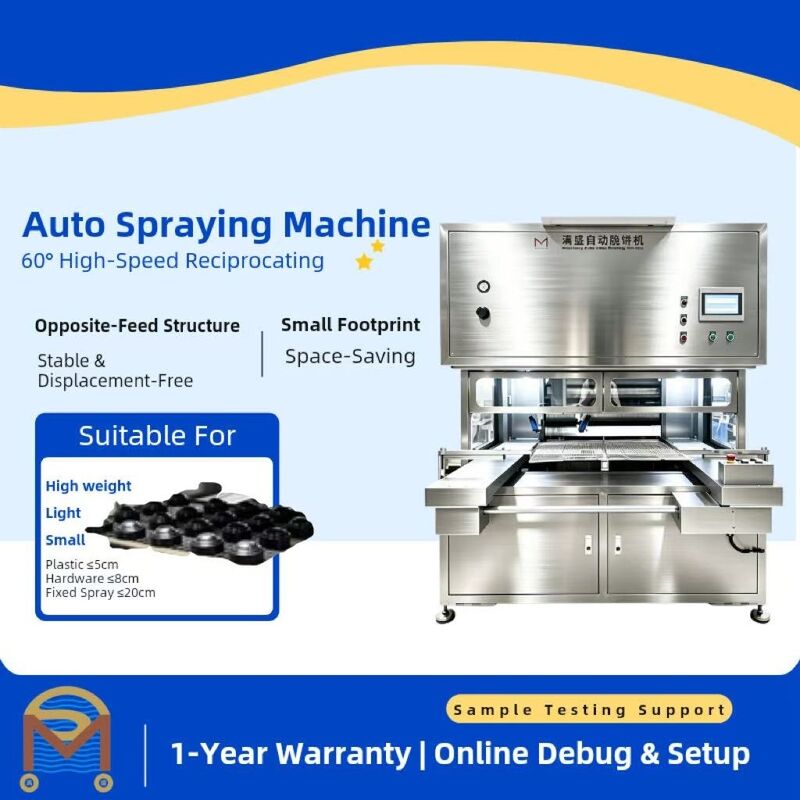

This automatic spraying equipment is specifically designed for coating small plastic housings and covers used in home appliances. The system provides precise, consistent coating application with automated operation for enhanced production efficiency and quality control.
The 600X5B automatic spray painting machine combines a five-axis precision closed-loop stepper drive with 360-degree high-speed rotary spraying and reciprocating spraying. Its two spray guns discharge paint independently, while a G-axis automatically loads and unloads the upper and lower material tables, delivering stable, repeatable coating at a positioning accuracy of ±0.2 mm for high-efficiency, high-quality production.
| Five-Axis Precision Drive | X, Y, Z, R and G axes driven by a precision closed-loop stepper system for stable, accurate and repeatable spray paths. |
|---|---|
| 360° High-Speed Rotary Spraying | 360-degree high-speed rotary spraying combined with reciprocating spraying; two spray guns discharge paint independently for flexible multi-angle coating. |
| Automatic Material Table Handling | The G axis automatically moves the upper and lower material tables in and out, enabling efficient automated production. |
| High Positioning Accuracy | ±0.2 mm positioning accuracy with an effective stroke of 600 * 900 * 260 mm (X, Y, Z) and a 600 * 600 mm spraying range. |
| Mansheng Touchscreen Control | Touchscreen control series with capacity for 10,000 stored programs and USB communication for quick programme transfer and backup. |
| Trusted Branded Components | Leadshine motors, HIWIN guide rails, NSK bearings, Hugong power supply, SNS and AirTAC pneumatic parts, CHINT / Delixi / OMRON electrical components, rubber timing belts, MCGS touchscreen and Tend control buttons. |
| Energy-Efficient and Clean | Low power consumption of just 0.95 kW/h, with a round 400 mm exhaust opening for effective overspray extraction. |
| X Axis | Horizontal (left / right) |
|---|---|
| Y Axis | Vertical (front / back) |
| Z Axis | Up / down |
| R Axis | Dual spray guns, 360-degree high-speed rotation + reciprocating |
| G Axis | Automatic in / out of upper and lower material tables |
| Machine Model | 600X5B Stand-Alone Gun Automatic Spray Painting Machine |
|---|---|
| Body Material | Stainless Steel, Aluminum, Steel / Cold-Rolled Sheet (optional) |
| Weight | 480 kg |
| Spray Gun / Nozzle | Mansheng Blue Gun, Nozzle 1.3 mm |
| Overall Dimensions | 2508 mm (frame 1440 mm) * 1500 mm * 1910 mm |
| Effective Stroke | 600 mm * 900 mm * 260 mm (X, Y, Z) |
| Spraying Range | 600 mm * 600 mm |
| Spraying Method | 360-degree high-speed rotary spraying + reciprocating spraying (two guns discharge paint independently) |
| Drive System | Five-axis precision closed-loop stepper drive |
| Positioning Accuracy | ±0.2 mm |
| Control System | Mansheng Touchscreen Control Series |
| Program Storage | 10,000 programs |
| Communication Port | USB |
| Motor | Leadshine |
| Guide Rail | HIWIN |
| Power Supply | Hugong |
| Pneumatic Components | SNS, AirTAC |
| Electrical Components | CHINT, Delixi, OMRON |
| Timing Belt Material | Rubber |
| Control Buttons | Tend |
| Machine Bearings | NSK |
| Touchscreen | MCGS |
| Rated Voltage | 220VAC / 50Hz |
| Air Supply Pressure | 0.6 – 0.8 MPa |
| Exhaust Opening | Round / 400 mm |
| Power Consumption | 0.95 kW/h |
The 600X5B automatic spray painting machine is engineered for coating small plastic covers and housings used in home appliances. Its flexible five-axis motion, independent dual-gun spraying and automatic material-table handling also make it well suited to 3C, hardware, toy and shoe-material industries seeking efficient, eco-friendly one-stop automatic spraying solutions.
Established in 2012, Mansheng Automation is a national high-tech enterprise specialising in intelligent spraying equipment, with a 10,000 m² production base and a 28-member R&D team. We supply high-efficiency rotary reciprocating spraying machines and customised automatic coating lines, and offer flexible OEM & ODM services to customers worldwide.
