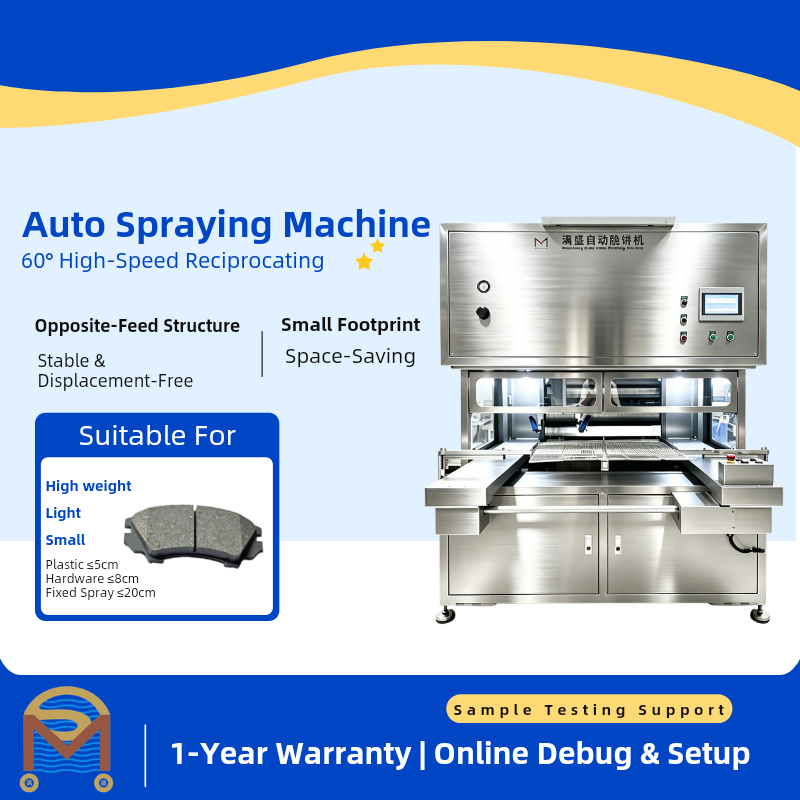

Automatic Spraying Machine for Brake Pads
The 600X5B is a scattered-gun automatic spray painting machine purpose-built for uniform surface coating of brake pads and small auto & motorcycle parts. Driven by a five-axis precision closed-loop stepper drive, it combines 360-degree high-speed rotating spraying with reciprocating spraying, and its two spray guns can dispense paint independently.
Key Features
- Five-Axis Precision Closed-Loop Stepper Drive: X, Y, Z, R and G axes support accurate, repeatable motion with +/-0.2mm positioning accuracy
- 360 Degree High-Speed Rotating + Reciprocating Spraying: Rotating gun head reaches up to 400 RPM to coat five sides of workpiece in one pass
- Dual Independent Paint Spray Guns: Two Mansheng blue guns (1.3 nozzle) dispense paint independently for stable, even film build
- Automatic In/Out Material Table: G-axis material table loads and unloads upper and lower layers automatically
- High Positioning Accuracy & Flexible Production: Storage for 10,000 spraying programs with USB import/export
- Precise Coverage, Less Overspray: 600 x 600 mm spraying range with controlled coating zone
- Premium Branded Components: HIWIN guide rails, NSK bearings, Omron electrical components, and Kunlun Tongtai touch screen
- Space-Saving & Low Consumption: Compact frame with integrated adsorption water curtain, consuming only 0.95KW/H
Technical Specifications
| Parameter |
Value |
| Model |
600X5B |
| Machine Type |
Scattered Gun Automatic Spray Painting Machine |
| Weight |
480KG |
| Spray Gun / Nozzle |
Mansheng Blue Gun 1.3 |
| Overall Dimensions |
2508 (Frame 1440) x 1500 x 1910 mm |
| Effective Stroke |
600 x 900 x 260 mm (X/Y/Z) |
| Spraying Range |
600 x 600 mm |
| Positioning Accuracy |
+/-0.2mm |
| Program Storage |
10,000-Level Programs |
| Rated Voltage |
220VAC / 50HZ |
| Air Supply Pressure |
0.6-0.8MPA |
| Power Consumption |
0.95KW/H |
Five-Axis System Configuration
| Axis |
Function |
| X |
Transverse (Left / Right) |
| Y |
Vertical (Front / Back) |
| Z |
Up / Down |
| R |
Dual Spray Guns 360 Degree High-Speed Rotation + Reciprocating |
| G |
Automatic In/Out Upper and Lower Material Tables |
Applications
Ideal for uniform surface painting of brake pads, brake components and small auto & motorcycle parts including miniature plastic interior fittings, fasteners, small metal decorations, compact casings and tiny irregular workpieces. Recommended workpiece size: plastic height ≤ 5cm, hardware height ≤ 8cm, total workpiece height within 20cm.
Why Choose Our Machine
- Precision-Driven Quality: +/-0.2mm five-axis positioning delivers consistent film thickness and color batch after batch
- Higher Output, Lower Cost: Five-side coating in one pass raises productivity 2-3 times while cutting overspray and labor cost
- Built for Small Parts: Alternating forward/reverse rotation avoids small parts being blown over by high-speed airflow
- Heavy-Duty Reliability: HIWIN guide rails, NSK bearings and premium branded components ensure stable long-run operation
- Flexible Production Switching: 10,000-program storage enables fast changeover between different part sizes and shapes
Frequently Asked Questions
What workpieces is this 600X5B machine designed for?
It is designed for brake pads and small auto & motorcycle parts, including miniature plastic interior fittings, fasteners, small metal decorations and compact casings, as well as other small irregular workpieces that need full five-side coating.
What is its spraying range and accuracy?
It offers a 600 x 600 mm spraying range with +/-0.2mm positioning accuracy, backed by a five-axis precision closed-loop stepper drive.
How does it coat recesses and dead corners evenly?
The R axis rotates the dual guns at high speed while the machine runs reciprocating strokes, coating up to five sides in one pass and reaching recesses, gaps and dead corners without blind spots or repeated touch-up.
How fast can it switch between different parts?
The Mansheng touch screen control stores 10,000 programs and imports them via USB, so switching between different part sizes, shapes and colors on the line is quick and simple.
What are the power and air requirements?
The machine runs on 220VAC / 50HZ with 0.6-0.8MPA air supply pressure and consumes only 0.95KW/H.
