Custom Metal Plastic Chair Base Support Base for Surface Coating Painting

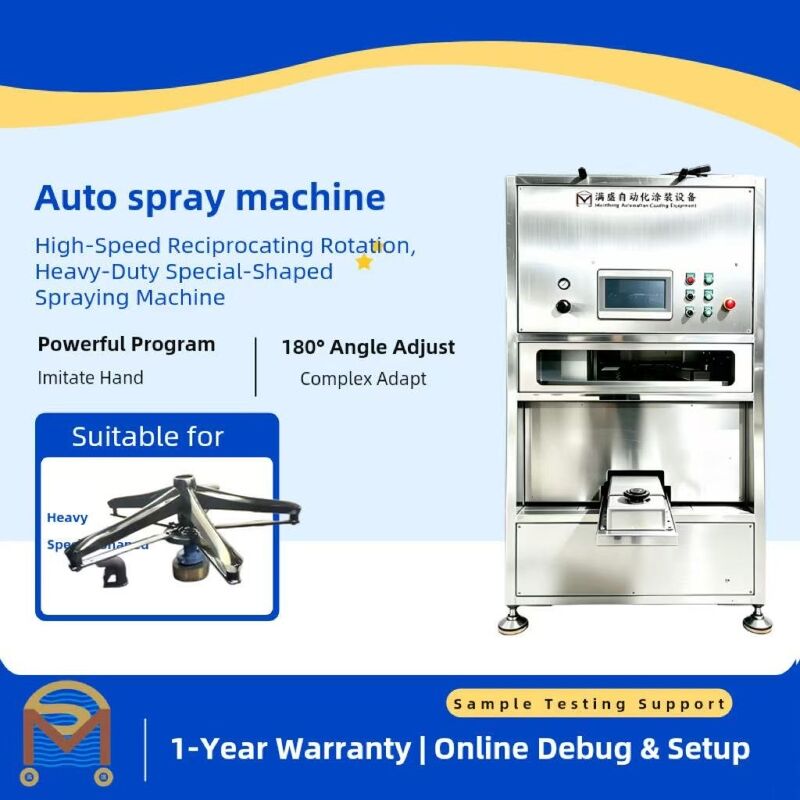

The 500X8 is a high-speed reciprocating spraying machine purpose-built for uniform surface coating and painting of custom metal and plastic chair bases, support bases and similar irregular workpieces. An eight-axis precision servo drive moves the gun and material trays along X, Y, Z, R, A, T1, T2 and W axes, so complex curved and concave-convex parts are coated evenly across the full 500mm x 400mm x 350mm spraying range.

The machine combines 360-degree material tray rotation at any angle with reciprocating spraying, and its dual AB stations work synchronously: one station is loaded while the other is sprayed, eliminating idle waiting time. With +/-0.2mm positioning accuracy, heavy-duty precision linear modules and a Mansheng touch screen control storing 10,000 spraying programs with USB import/export, production switching between chair base models and colors is fast and simple, while the machine passes stable, repeatable film quality from batch to batch.

• Eight-Axis Precision Servo Drive: X, Y, Z, R, A, T1, T2 and W axes support complex arc and circular paths, closely simulating manual spraying to cover gaps and dead corners with a uniform finish.
• 360 Degree Tray Rotation + Reciprocating Spraying: Material trays rotate at any angle while the gun reciprocates, fully coating curved and concave-convex metal and plastic bases in one pass.
• Dual AB Station Synchronous Operation: Loading on Station A while Station B sprays removes idle waiting time and greatly boosts production efficiency.
• Heavy-Duty Precision Linear Modules: Unlike low-cost optical-axis structures, the high-precision modules offer higher load capacity and stable long-term continuous operation for large, heavy and irregular workpieces.
• +/-0.2mm Positioning Accuracy: Precision servo drive keeps coating thickness and color consistent batch after batch, reducing the defective coating rate.
• 10,000 Program Storage & USB: The Mansheng touch screen control stores 10,000 spraying programs that import and export via USB for easy programming and mass replication.
• Premium Branded Components: Hugong power supply, Shannais and Airtac pneumatics, Chint, Delixi and Omron electrical parts, Tiande control buttons and a Kunlun Tongtai touch screen ensure long-term reliability.

Ideal for automatic, uniform spray painting of custom metal and plastic chair bases, support bases and similarly shaped irregular parts. The 360-degree tray rotation plus reciprocating spraying and dual AB stations suit batch coating of curved and concave-convex workpieces that need full, even coverage with consistent color and gloss, replacing manual spraying for automated mass production.

• Consistent Coating Quality: +/-0.2mm eight-axis precision servo drive with 360-degree tray rotation plus reciprocating spraying delivers uniform film thickness and stable color on every chair base.
• Full Coverage on Irregular Parts: Rotating trays and swing-rotating guns closely simulate manual spraying to coat curved, concave-convex metal and plastic bases without blind spots.
• High Efficiency: Dual AB stations spray and load in parallel, removing idle time and greatly raising output.
• Reliable & Flexible: Heavy-duty precision linear modules, Xinje motors, Hugong power supply and 10,000 program storage with USB enable long-run stability and quick changeover.
• Stable Yield: Automated spraying replaces manual labor to stably reduce the defective coating rate for automated mass production.

Q: What is the 500X8 designed for?
A: It is designed for automatic, uniform spray painting of custom metal and plastic chair bases, support bases and similarly shaped irregular workpieces.

Q: How does it coat curved and irregular parts evenly?
A: An eight-axis precision servo drive combines 360-degree material tray rotation with reciprocating spraying, closely simulating manual spraying to fully coat gaps and dead corners.

Q: What are the spraying range and accuracy?
A: The machine offers a 500mm x 400mm x 350mm spraying range with +/-0.2mm positioning accuracy.

Q: How does it raise productivity?
A: Dual AB stations spray and load simultaneously, eliminating idle waiting time, while 10,000 program storage with USB allows quick changeover between chair base models.

Q: What are the power and air requirements?
A: The machine runs on 220VAC / 50Hz with 0.6-0.8MPa air supply pressure and consumes 4.5KW/H.
