Motorcycle Auto Mirror Replacement Parts Rearview Mirror Stem Bracket Rod

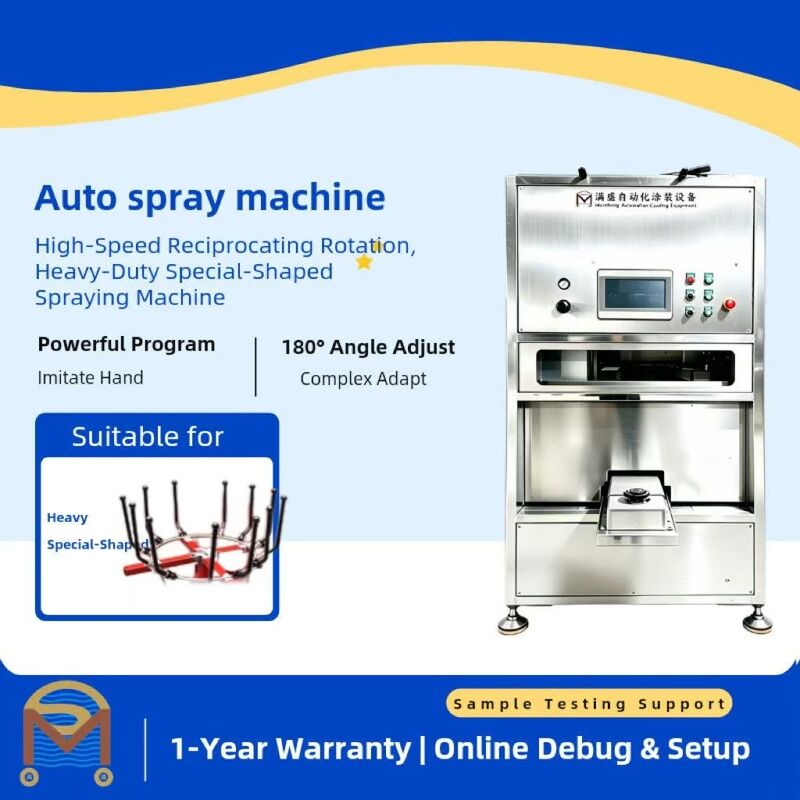

The 500X8 is a high-speed reciprocating spraying machine purpose-built for uniform surface coating and painting of motorcycle and auto rearview mirror parts, including rearview mirror stems, brackets and rods, along with similarly shaped irregular metal and plastic workpieces. An eight-axis precision servo drive moves the gun and material trays along X, Y, Z, R, A, T1, T2 and W axes, so complex curved and concave-convex parts are coated evenly across the full 500mm x 400mm x 350mm spraying range.

The machine combines 360-degree material tray rotation at any angle with reciprocating spraying, and its dual AB stations work synchronously: one station is loaded while the other is sprayed, eliminating idle waiting time. With +/-0.2mm positioning accuracy, heavy-duty precision linear modules and a Mansheng touch screen control storing 10,000 spraying programs with USB import/export, production switching between mirror part models and colors is fast and simple, while the machine passes stable, repeatable film quality from batch to batch.

• Eight-Axis Precision Servo Drive: X, Y, Z, R, A, T1, T2 and W axes support complex arc and circular paths, closely simulating manual spraying to cover gaps and dead corners with a uniform finish.
• 360 Degree Tray Rotation + Reciprocating Spraying: Material trays rotate at any angle while the gun reciprocates, fully coating curved and concave-convex mirror stems, brackets and rods in one pass.
• Dual AB Station Synchronous Operation: Loading on Station A while Station B sprays removes idle waiting time and greatly boosts production efficiency.
• Heavy-Duty Precision Linear Modules: Unlike low-cost optical-axis structures, the high-precision modules offer higher load capacity and stable long-term continuous operation for large, heavy and irregular workpieces.
• +/-0.2mm Positioning Accuracy: Precision servo drive keeps coating thickness and color consistent batch after batch, reducing the defective coating rate.
• 10,000 Program Storage & USB: The Mansheng touch screen control stores 10,000 spraying programs that import and export via USB for easy programming and mass replication.
• Premium Branded Components: Hugong power supply, Shannais and Airtac pneumatics, Chint, Delixi and Omron electrical parts, Tiande control buttons and a Kunlun Tongtai touch screen ensure long-term reliability.

Ideal for automatic, uniform spray painting of motorcycle and auto rearview mirror parts, mirror stems, brackets, rods and similarly shaped irregular metal and plastic fittings. The 360-degree tray rotation plus reciprocating spraying and dual AB stations suit batch coating of curved and concave-convex workpieces that need full, even coverage with consistent color and gloss, replacing manual spraying for automated mass production of mirror components.

• Consistent Coating Quality: +/-0.2mm eight-axis precision servo drive with 360-degree tray rotation plus reciprocating spraying delivers uniform film thickness and stable color on every mirror part.
• Full Coverage on Irregular Parts: Rotating trays and swing-rotating guns closely simulate manual spraying to coat curved, concave-convex mirror stems, brackets and rods without blind spots.
• High Efficiency: Dual AB stations spray and load in parallel, removing idle time and greatly raising output.
• Reliable & Flexible: Heavy-duty precision linear modules, Xinje motors, Hugong power supply and 10,000 program storage with USB enable long-run stability and quick changeover.
• Stable Yield: Automated spraying replaces manual labor to stably reduce the defective coating rate for automated mass production.

Q: What is the 500X8 designed for?
A: It is designed for automatic, uniform spray painting of motorcycle and auto rearview mirror parts, mirror stems, brackets, rods and similarly shaped irregular workpieces.

Q: How does it coat curved and irregular parts evenly?
A: An eight-axis precision servo drive combines 360-degree material tray rotation with reciprocating spraying, closely simulating manual spraying to fully coat gaps and dead corners.

Q: What are the spraying range and accuracy?
A: The machine offers a 500mm x 400mm x 350mm spraying range with +/-0.2mm positioning accuracy.

Q: How does it raise productivity?
A: Dual AB stations spray and load simultaneously, eliminating idle waiting time, while 10,000 program storage with USB allows quick changeover between mirror part models.

Q: What are the power and air requirements?
A: The machine runs on 220VAC / 50Hz with 0.6-0.8MPa air supply pressure and consumes 4.5KW/H.
