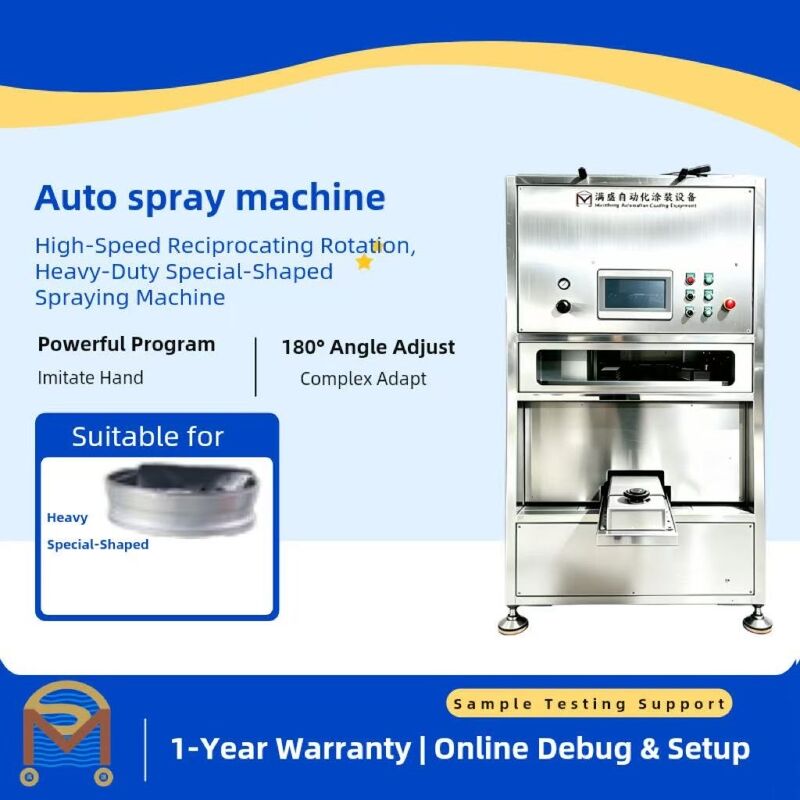

The 500X8 is an eight-axis, precision servo-driven high-speed reciprocating spraying machine engineered for high-volume, high-consistency surface coating of complex workpieces. A 360° rotary tray indexes each part to any angle while the reciprocating gun carriage applies an even film across the 500 × 400 × 350 mm spraying envelope. With ±0.2 mm positioning accuracy, a 10,000-program library and industrial-grade components, the 500X8 delivers repeatable finish quality and fast changeover for automated paint and coating lines.
Key Advantages| Feature | Benefit |
|---|---|
| 8-axis precision servo drive | Smooth, repeatable motion across X, Y, Z, R, A and the T1 / T2 / W tray axes |
| 360° tray indexing + reciprocating spraying | Coats multi-face workpieces at any angle without re-fixturing |
| ±0.2 mm positioning accuracy | Uniform coverage and minimal overspray |
| 10,000-program storage | Rapid switchover between part numbers and recipes |
| Industrial brand components | Xinje motors, SNS & AirTAC pneumatics, CHINT / Delixi / Omron electrics for reliable long-run operation |
| Mansheng touch-screen control | Intuitive operation and simple program editing |
| Parameter | Value |
|---|---|
| Machine Model | 500X8 High-Speed Reciprocating Machine |
| Body Material | Stainless steel, aluminum, steel |
| Weight | 480 kg |
| Spray Gun / Nozzle | Mansheng blue gun, 1.3 mm |
| Overall Dimensions | 2143 mm (frame 1260 mm) × 1500 mm × 2170 mm |
| Spraying Range | 500 mm × 400 mm × 350 mm |
| Spraying Method | 360° tray indexing to any angle + reciprocating spraying |
| Drive System | 8-axis precision servo drive |
| Positioning Accuracy | ±0.2 mm |
| Control System | Mansheng touch-screen control series |
| Program Storage | 10,000 programs |
| Communication Port | USB |
| Motor | Xinje |
| Motion Module | High-precision motion module |
| Power Supply | Hugong |
| Pneumatic Components | SNS (Shannaisi), AirTAC |
| Electrical Components | CHINT, Delixi, Omron |
| Control Buttons | Tiande |
| Touch Screen | Kunlun Tongtai (MCGS) |
| Rated Voltage | 220 VAC / 50 Hz |
| Air Supply Pressure | 0.6–0.8 MPa |
| Exhaust Port | Round, 400 mm |
| Power Consumption | 4.5 kW/h |
| Axis | Function |
|---|---|
| X | Horizontal (left-right) |
| Y | Vertical (front-back) |
| Z | Vertical (up-down) |
| R | Spray gun rotation |
| A | Spray gun tilt angle |
| T1 | Tray A station rotation |
| T2 | Tray B station rotation |
| W | Tray indexing / position change |
The 500X8 is suited to automated painting and coating lines for hardware, electrical appliances, auto parts, plastic and metal housings, and other parts requiring a repeatable, high-throughput finish.
For configuration details, customized fixtures or a quotation, please contact our sales team.
