Intelligent Painting Machine for Custom Art Font Surface Spraying

Name: Intelligent Painting Machine for Custom Art Font Surface Spraying
Brand: Dongguan Mansheng Automation Equipment Co., Ltd
SKU: 500X7
Price: 14235 USD
Availability: InStock

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	Mansheng
Certification:	ISO 9001:2015
Model Number:	500X7

Detail Information

Place of Origin:

Dongguan, China

Brand Name:

Mansheng

Certification:

ISO 9001:2015

Model Number:

500X7

Body Material:

Stainless Steel / Aluminum / Steel

Weight:

450KG

Spray Gun / Nozzle:

Mansheng Blue Gun, 1.0mm (Precision Nozzle For Fine Detail)

Overall Dimension:

2450(Frame: 1460) Mm X 1500mm X 2100mm

Effective Stroke:

520mm X 670mm X 260mm

Spraying Range:

500mm X 500mm

Spraying Mode:

360 High-Speed Rotation Spraying + Reciprocating Spraying (2 Guns With Independent Oil Output)

Driving Mode:

7-Axis Precision Closed-Loop Stepper Drive

Positioning Accuracy:

0.05mm

Control System:

Mansheng Touch Screen Control Series

Program Storage:

10,000+ Programs

Communication Port:

USB

Core Components:

Precision Stepper Motor / High-Precision Linear Guide / High-Grade Bearing

Rated Voltage:

220VAC / 50Hz

Air Supply Pressure:

0.6-0.8MPa

Exhaust Port:

Round / 400mm

Power Consumption:

0.95KW/H

Price:

$14,235

Packaging Details:

Wooden Box With Shock-proof Foam Insert, Export-grade Packaging

Payment Terms:

L/C, D/A, D/P, T/T, Western Union

Minimum Order Quantity:

1 Set

Supply Ability:

2000 Sets Per Year

Delivery Time:

15-25 Working Days

Highlight:

High Light

Highlight:

Custom Art Font Spray Painting Machine

Art Font Coating Equipment

Font Surface Spray Machine

Trading Information

Minimum Order Quantity:

Price:

$14235

Packaging Details:

Wooden box

Payment Terms:

L/C,D/A,D/P,T/T,Western Union

Product Description

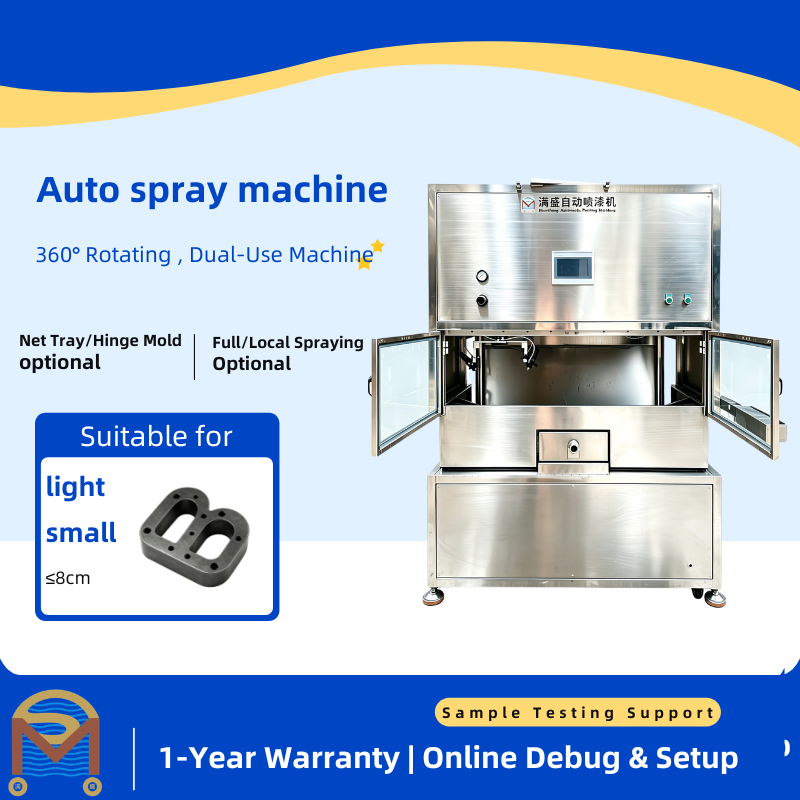

Intelligent Painting Machine for Custom Art Font Surface Spraying

Product Specifications

Model	500X7 Art Font Auto Spray Painting Machine
Body Material	Stainless Steel / Aluminum / Steel
Weight	450KG
Spray Gun / Nozzle	Mansheng Blue Gun, 1.0mm (Precision Nozzle for Fine Detail)
Overall Dimension	2450(Frame: 1460) mm x 1500mm x 2100mm
Effective Stroke	520mm x 670mm x 260mm
Spraying Range	500mm x 500mm
Spraying Mode	360 High-Speed Rotation Spraying + Reciprocating Spraying (2 guns with independent oil output)
Driving Mode	7-Axis Precision Closed-Loop Stepper Drive
Positioning Accuracy	0.05mm
Control System	Mansheng Touch Screen Control Series
Program Storage	10,000+ Programs
Communication Port	USB
Core Components	Precision Stepper Motor / High-Precision Linear Guide / High-Grade Bearing
Rated Voltage	220VAC / 50Hz
Air Supply Pressure	0.6-0.8MPa
Exhaust Port	Round / 400mm
Power Consumption	0.95KW/H

Key Features & Benefits

7-Axis Ultra-Precision Spray for Art Fonts & Signage: 0.05mm positioning accuracy with closed-loop stepper drive, ensuring crisp, clean edges and uniform coating on custom art fonts, advertising letters, signage letters and decorative characters.
Dual Independent Spray Guns with Fine Detail Nozzle: Equipped with 2 sets of Mansheng blue spray guns (1.0mm precision nozzle) with separate oil output control, supports 360 high-speed rotation + reciprocating spraying for perfect coverage on complex letter contours and 3D art font surfaces.
500mm x 500mm Large Batch Processing: Super large spray range with dual-station rotation design, processes multiple art fonts, signage letters and decorative characters per batch. 10,000+ programmable sequences for different font sizes, styles and coating requirements.
Heavy-Duty Industrial Build with Precision Core: Adopts premium brand core components: precision stepper motor, high-precision linear guide and high-grade bearing. 450KG stable stainless steel frame runs on 220VAC/50Hz with 0.6-0.8MPa air pressure, suitable for continuous signage and advertising production.
Energy-Saving & Intelligent Control: Only 0.95KW/H ultra-low power consumption, user-friendly Mansheng touch screen control with USB communication port, 400mm round exhaust port for clean and safe working environment. Ideal for custom art fonts, advertising letters, signage letters, 3D logos, decorative characters and branding elements.
