Home > Products >
Hardware spray machine
>
Auto Spraying Machine | Professional Art Letter Coating Equipment for Various Workpieces
  • Auto Spraying Machine | Professional Art Letter Coating Equipment for Various Workpieces
  • Auto Spraying Machine | Professional Art Letter Coating Equipment for Various Workpieces
  • Auto Spraying Machine | Professional Art Letter Coating Equipment for Various Workpieces
  • Auto Spraying Machine | Professional Art Letter Coating Equipment for Various Workpieces
  • Auto Spraying Machine | Professional Art Letter Coating Equipment for Various Workpieces

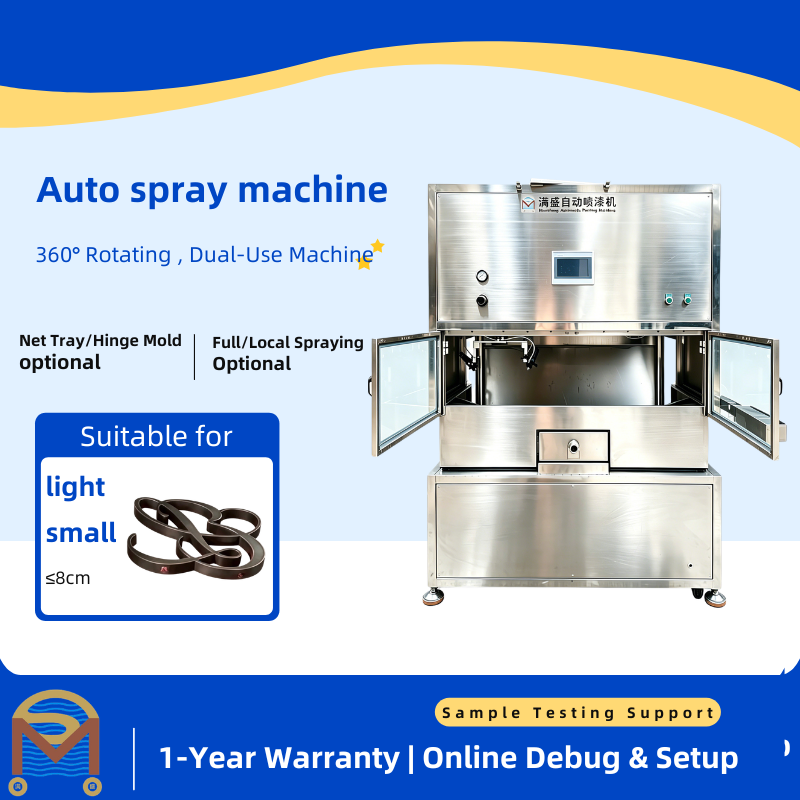

Auto Spraying Machine | Professional Art Letter Coating Equipment for Various Workpieces

Product Details:
Place of Origin: Dongguan, China
Brand Name: Mansheng
Certification: ISO 9001:2015
Model Number: 500X7
Detail Information
Place of Origin:
Dongguan, China
Brand Name:
Mansheng
Certification:
ISO 9001:2015
Model Number:
500X7
Body Material:
Stainless Steel / Aluminum / Steel
Weight:
450KG
Spray Gun / Nozzle:
Mansheng Blue Gun, 1.3mm
Overall Dimension:
2450(Frame: 1460) Mm X 1500mm X 2100mm
Effective Stroke:
520mm X 670mm X 260mm
Spraying Range:
500mm X 500mm
Spraying Mode:
360 High-Speed Rotation Spraying + Reciprocating Spraying (2 Guns With Independent Oil Output)
Driving Mode:
7-Axis Precision Closed-Loop Stepper Drive
Positioning Accuracy:
0.05mm
Control System:
Mansheng Touch Screen Control Series
Program Storage:
10,000+ Programs
Communication Port:
USB
Core Components:
Precision Stepper Motor / High-Precision Linear Guide / High-Grade Bearing
Rated Voltage:
220VAC / 50Hz
Air Supply Pressure:
0.6-0.8MPa
Exhaust Port:
Round / 400mm
Power Consumption:
0.95KW/H
Price:
$14,235
Packaging Details:
Wooden Box With Shock-proof Foam Insert, Export-grade Packaging
Payment Terms:
L/C, D/A, D/P, T/T, Western Union
Minimum Order Quantity:
1 Set
Supply Ability:
2000 Sets Per Year
Delivery Time:
15-25 Working Days
Highlight:

High Light

Highlight:

Art Letter Spray Coating Machine

,

Art Letter Coating Equipment

,

Multi Material Spray Machine

Trading Information
Minimum Order Quantity:
1
Price:
$14235
Packaging Details:
Wooden box
Payment Terms:
L/C,D/A,D/P,T/T,Western Union
Product Description
Auto Spraying Machine | Professional Art Letter Coating Equipment for Various Workpieces
Product Specifications
Parameter Specification
Model 500X7 Art Letter Auto Spray Painting Machine
Body Material Stainless Steel / Aluminum / Steel
Weight 450KG
Spray Gun / Nozzle Mansheng Blue Gun, 1.3mm
Overall Dimension 2450(Frame: 1460) mm x 1500mm x 2100mm
Effective Stroke 520mm x 670mm x 260mm
Spraying Range 500mm x 500mm
Spraying Mode 360 High-Speed Rotation Spraying + Reciprocating Spraying (2 guns with independent oil output)
Driving Mode 7-Axis Precision Closed-Loop Stepper Drive
Positioning Accuracy 0.05mm
Control System Mansheng Touch Screen Control Series
Program Storage 10,000+ Programs
Communication Port USB
Core Components Precision Stepper Motor / High-Precision Linear Guide / High-Grade Bearing
Rated Voltage 220VAC / 50Hz
Air Supply Pressure 0.6-0.8MPa
Exhaust Port Round / 400mm
Power Consumption 0.95KW/H
Key Features & Benefits
  • 7-Axis Ultra-Precision Spray for Art Letters: 0.05mm positioning accuracy with closed-loop stepper drive, ensuring crisp edges and uniform coating on advertising letters, signage letters, 3D logos, decorative characters and branding elements.
  • Dual Independent Spray Guns for Complex Contours: Equipped with 2 sets of Mansheng blue spray guns (1.3mm nozzle) with separate oil output control, supports 360 high-speed rotation + reciprocating spraying for complete coverage on intricate letter shapes, curved surfaces and various workpiece geometries.
  • 500mm x 500mm Large Batch Processing: Super large spray range with dual-station rotation design, processes multiple art letters and signage workpieces per batch. 10,000+ programmable sequences for different letter sizes, fonts, materials and coating requirements.
  • Heavy-Duty Industrial Build with Precision Core: Adopts premium brand core components: precision stepper motor, high-precision linear guide and high-grade bearing. 450KG stable stainless steel frame runs on 220VAC/50Hz with 0.6-0.8MPa air pressure, suitable for continuous signage and advertising production lines.
  • Energy-Saving & Intelligent Control: Only 0.95KW/H ultra-low power consumption, user-friendly Mansheng touch screen control with USB communication port, 400mm round exhaust port for clean and safe working environment. Ideal for advertising letters, signage letters, 3D logos, decorative characters, metal letters, plastic letters and branding workpieces.

Tags:

hardware spray painting machine,

metal parts coating equipment,

industrial metal coater
