| Place of Origin: | Guangdong / Dongguan |
| Brand Name: | Man Sheng |
| Model Number: | 400X5 |
| Parameter | Specification |
|---|---|
| Model | 400X5 |
| Material | Stainless Steel / Aluminum / Steel |
| Weight | 210KG |
| Gun / Nozzle | WA101 Spray Gun, 0.5mm |
| Dimension | 845 x 740 x 1580mm (Frame: 715mm) |
| Effective Stroke | 400 x 400 x 120mm |
| Spray Range | 400 x 400mm |
| Spray Mode | 360° Rotation + Reciprocating (2 guns, independent oil output) |
| Drive | 7-Axis Closed-Loop Stepper Drive |
| Axes | X(Left/Right) / Y(Front/Back) / Z(Up/Down) / U(Gun 360° Rotate) / V(Station A Rotate) / W(Station B Rotate) |
| Accuracy | 0.05mm |
| Control | Touch Screen |
| Program | 10,000+ |
| Comm Port | USB |
| Key Parts | Leadshine Motor / HIWIN Guide / NSK Bearing |
| Voltage | 220VAC / 50Hz |
| Air Pressure | 0.4-0.6MPa |
| Exhaust | Round / 200mm |
| Power | 0.55KW/H |

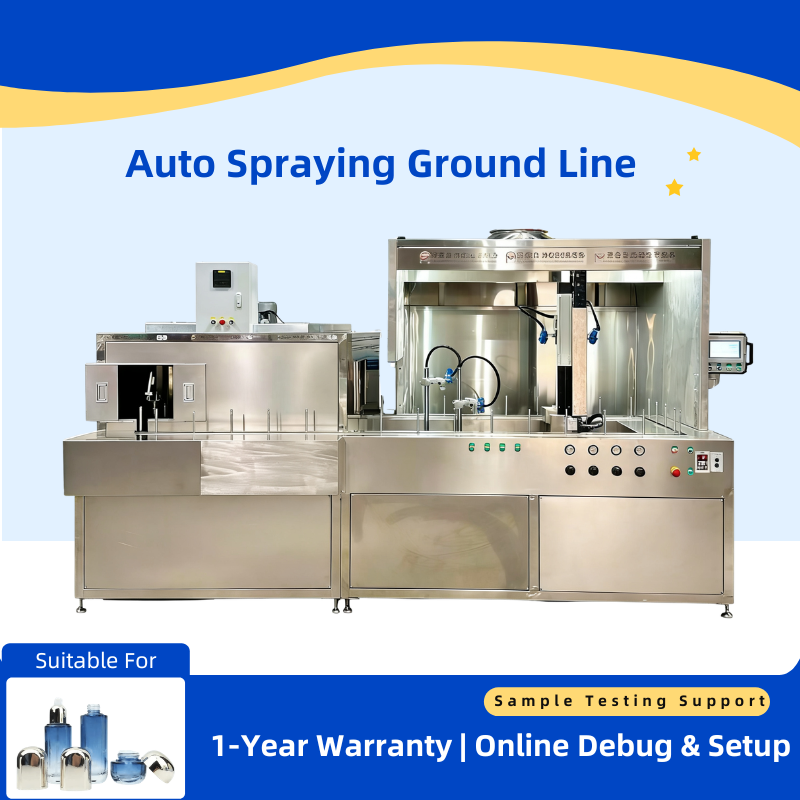

7-Axis Ultra-Precision Spray System: 0.05mm positioning accuracy with closed-loop stepper drive, ensures consistent, defect-free coating for cosmetic glass bottles and small precision parts.
Optimized 400x400mm Spray Range: Compact yet efficient working area with dual independent WA101 spray guns (0.5mm), 360° rotation + reciprocating motion for uniform coverage on glass surfaces.
Dual-Station High Throughput: Two guns with separate oil output control, rotating stations for simultaneous loading and spraying, ideal for batch production of cosmetic bottles.
Compact & Durable Build: 210KG reinforced frame with 845x740mm compact footprint, HIWIN linear guides, NSK bearings, and Leadshine closed-loop stepper motors for space-conscious production lines.
Energy-Saving & Easy Operation: Only 0.55KW/H power consumption, intuitive touch screen with 10,000+ programmable sequences, USB data port, and 200mm round exhaust for clean workshop environment.
