| Place of Origin: | Guangdong, Dongguan |
| Brand Name: | Mansheng |
| Certification: | ISO 9001:2015 |
| Model Number: | ground line (customized) |

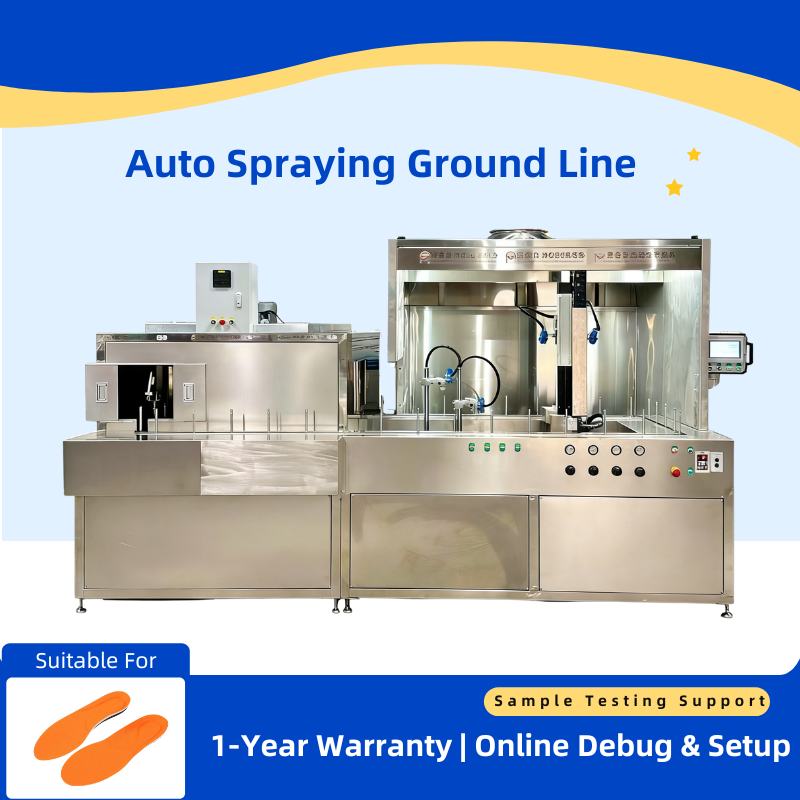

The Man Sheng Automated Spray Coating Line is a compact precision coating system engineered for orange insole EVA foam surface treatment. Featuring 360-degree high-speed rotary spraying with dual independent WA101 spray guns (0.5mm nozzle), this line delivers uniform, high-quality coating on footwear insoles, shoe inserts, and EVA foam components. With a positioning accuracy of 0.05mm and a space-saving 845x740mm footprint, this machine integrates seamlessly into footwear insole production lines.
| Parameter | Specification |
|---|---|
| Model | Automated Spray Coating Line |
| Application | Orange Insole EVA Foam Surface Coating |
| Body Material | Stainless Steel, Aluminum, Steel |
| Weight | 210KG |
| Overall Dimensions | 845 x 740 x 1580mm (Frame 715mm) |
| Effective Stroke | 400 x 400 x 120mm |
| Spraying Range | 400 x 400mm |
| Spray Gun / Nozzle | WA101 Spray Gun 0.5mm |
| Positioning Accuracy | 0.05mm |
The system features dual WA101 spray guns (0.5mm nozzle) with independent oil output control, enabling simultaneous multi-angle coating of EVA foam insoles. The 360-degree rotation combined with reciprocating spray motion ensures complete and uniform coverage across curved insole surfaces, including arch contours, heel cups, and textured foam patterns. This system handles primers, base coats, color finishes, and protective clear coats for footwear-grade insole coating.
| Parameter | Specification |
|---|---|
| Spraying Mode | 360 Degree Rotation + Reciprocating Spraying (2 Guns, Independent Oil Output) |
| Driving Mode | Closed-Loop Stepper Drive |
Equipped with a closed-loop stepper drive system featuring Leadshine motors, HIWIN linear guides, and NSK bearings. The multi-axis configuration delivers 0.05mm positioning accuracy essential for precision EVA foam insole surface finishing, ensuring consistent coating thickness across all insole profiles.
| Parameter | Specification |
|---|---|
| Control System | Touch Screen |
| Program Storage | 10,000+ Programs |
| Communication Port | USB |
The intuitive touch screen interface allows operators to store up to 10,000 coating programs for different insole sizes, shapes, and coating specifications. USB data port enables easy program transfer and backup.
| Component | Brand / Specification |
|---|---|
| Motor | Leadshine |
| Linear Guide | HIWIN |
| Bearing | NSK |
| Spray Gun | WA101 0.5mm |
| Parameter | Specification |
|---|---|
| Rated Voltage | 220VAC / 50Hz |
| Air Supply Pressure | 0.4 - 0.6MPa |
| Exhaust Port | Round / 200mm |
| Power Consumption | 0.55KW/H |
