Shoe Insole Automatic Spray Coating Equipment for Water Based Paint Finishing
  • Shoe Insole Automatic Spray Coating Equipment for Water Based Paint Finishing
  • Shoe Insole Automatic Spray Coating Equipment for Water Based Paint Finishing
  • Shoe Insole Automatic Spray Coating Equipment for Water Based Paint Finishing
  • Shoe Insole Automatic Spray Coating Equipment for Water Based Paint Finishing
  • Shoe Insole Automatic Spray Coating Equipment for Water Based Paint Finishing

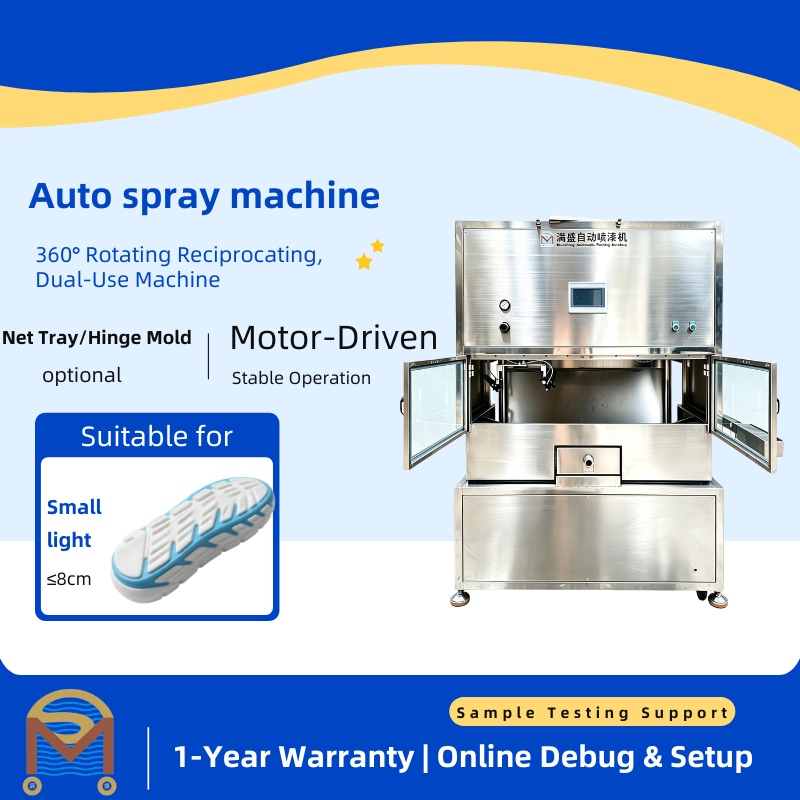

Shoe Insole Automatic Spray Coating Equipment for Water Based Paint Finishing

Product Details:
Place of Origin: Guangdong, China
Brand Name: Mansheng
Certification: ISO 9001:2015
Model Number: 500X7A
Detail Information
Place of Origin:
Guangdong, China
Brand Name:
Mansheng
Certification:
ISO 9001:2015
Model Number:
500X7A
Model:
500X7A Hinge Mold Automatic Spray Machine
Body Material:
Stainless Steel / Aluminum / Steel
Weight:
450KG
Spray Gun & Nozzle:
Mansheng Blue Gun, 1.3mm
Overall Dimension:
2450(Frame:1460)mm X 1500mm X 2100mm
Effective Stroke:
520mm X 670mm X 260mm
Spraying Range:
500mm X 500mm
Spraying Mode:
360 Degree High-speed Rotation + Reciprocating Spraying (2 Guns With Independent Oil Output)
Drive Mode:
7-Axis Precision Closed-Loop Stepper Drive
Axes Function:
X(L/R), Y(F/B), Z(U/D), R(Dual Gun 360 Rotation), T1(Station A), T2(Station B), W(Base)
Positioning Accuracy:
±0.05mm
Control System:
Mansheng Touch Screen Control Series
Program Storage:
10,000+ Programs
Communication Port:
USB
Motor:
Leadshine
Linear Guide:
HIWIN
Power Supply:
Hugong
Pneumatic Parts:
Shannais, Airtac
Electrical Components:
Chint, Delixi, Omron
Timing Belt Material:
Rubber
Control Buttons:
Tend
Bearings:
NSK
Touch Screen:
Kunlun Tongtai
Rated Voltage:
220VAC/50Hz
Air Supply Pressure:
0.6-0.8MPa
Exhaust Port:
Round / 400mm
Power Consumption:
0.95KW/H
Highlight:

High Light

Highlight:

Shoe Insole Precision Spray Coating

,

Automated Insole Surface Finishing

,

Seven-Axis Dual-Gun Spraying Equipment

Trading Information
Minimum Order Quantity:
1 Set
Price:
USD 8,000-15,000 / Set
Packaging Details:
Export-grade wooden case with shock-proof foam, vacuum-sealed moisture protection
Delivery Time:
15-25 working days
Payment Terms:
T/T,L/C,Western Union
Supply Ability:
50 Sets per Month
Product Description
Automated Coating System | Precision Spraying Equipment for Shoe Insoles
The 500X7A Automated Coating System is a state-of-the-art seven-axis precision spraying equipment engineered specifically for shoe insole surface finishing. Combining 360-degree high-speed rotating spraying with reciprocating coating and dual spray guns with independent paint output, it delivers exceptional coating uniformity for EVA foam insoles, PU insoles, gel insoles, memory foam insoles, and orthopedic insoles.
Powered by a precision closed-loop stepper drive system with ±0.05mm ultra-high positioning accuracy, it ensures consistent, high-quality surface finishing for footwear manufacturing production lines. The Mansheng touch screen control with 10,000-program storage enables rapid changeover between different insole shapes and sizes.
Key Features
Dual-Gun Independent Output
Two Mansheng Blue Guns (1.3mm nozzle) operate independently, enabling simultaneous multi-angle spraying for 5-sided insole coverage in a single pass — 2-3× faster than traditional reciprocating machines.
Seven-Axis Closed-Loop Stepper Drive
X (horizontal), Y (vertical), Z (up/down), R (dual-gun 360° rotation + reciprocating), T1 (station A rotation), T2 (station B rotation), W (base rotation) — ensuring full surface coating of shoe insoles with no blind spots on contoured surfaces.
Ultra-High Precision
±0.05mm positioning accuracy with HIWIN guide rails, NSK bearings, and Leadshine closed-loop stepper motors — guaranteeing stable, vibration-free operation for delicate insole materials including EVA foam, memory foam, and gel.
Heavy-Duty Construction
450KG robust build with stainless steel, aluminum and steel body. 500mm × 500mm spraying range with 520mm × 670mm × 260mm effective stroke accommodates full-size insole trays and multi-cavity fixtures.
Smart Touch Screen Control
Mansheng touch screen control series with 10,000-program storage, USB communication port for one-click import/export, and Kunlun Tongtai display — effortlessly switch between different insole models and coating recipes.
Premium Components
Hugong power supply, Shannais & Airtac pneumatic components, Chint/Delixi/Omron electrical parts, Tend control buttons, rubber timing belt — engineered for 24/7 footwear production line reliability.
Efficient Paint Mist Management
Circular 400mm exhaust port for effective ventilation and operator safety. Total power consumption only 0.95KW/H with 220VAC/50HZ rated voltage and 0.6-0.8MPA air supply.
Technical Specifications
Model 500X7A Hinge Mold Automatic Spray Machine
Body Material Stainless Steel / Aluminum / Steel
Weight 450KG
Spray Gun / Nozzle Mansheng Blue Gun, 1.3mm
Overall Dimension 2450 (Frame: 1460) mm × 1500mm × 2100mm
Effective Stroke 520mm × 670mm × 260mm
Spraying Range 500mm × 500mm
Spraying Mode 360° High-Speed Rotation + Reciprocating Spraying (2 Guns with Independent Oil Output)
Drive Mode 7-Axis Precision Closed-Loop Stepper Drive
Axes Function X (Left/Right), Y (Front/Back), Z (Up/Down), R (Dual Gun 360° Rotation), T1 (Station A Rotate), T2 (Station B Rotate), W (Base Rotation)
Positioning Accuracy ±0.05mm
Control System Mansheng Touch Screen Control Series
Program Storage 10,000+ Programs
Communication Port USB
Motor Leadshine
Linear Guide HIWIN
Power Supply Hugong
Pneumatic Parts Shannais, Airtac
Electrical Components Chint, Delixi, Omron
Timing Belt Material Rubber
Control Buttons Tend
Bearings NSK
Touch Screen Kunlun Tongtai
Rated Voltage 220VAC/50Hz
Air Supply Pressure 0.6-0.8MPa
Exhaust Port Round / 400mm
Power Consumption 0.95KW/H
Applications
The 500X7A Automated Coating System is purpose-built for shoe insole surface finishing applications including EVA foam insoles, PU insoles, memory foam insoles, gel insoles, orthotic insoles, sports shoe insoles, casual footwear insoles, and industrial safety shoe insoles. Ideal for footwear manufacturers seeking high-throughput, precision coating with uniform color application, protective layer deposition, and surface treatment for enhanced durability and aesthetics.

Tags:

Orange Insole Precision Spray Coating System,

EVA Foam Surface Spraying Equipment,

Automated Shoe Insole Coating Machine
