Shoe Insole Automatic Spray Painting Machine for Water Based Paint Finishing

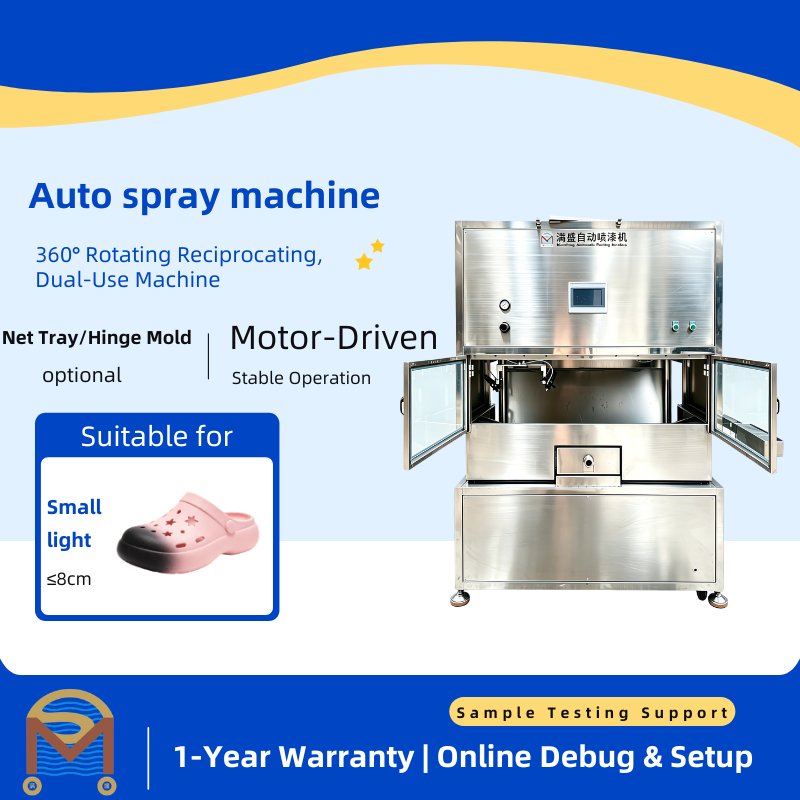

The 500X7A Gradient Spray Painting Machine is a state-of-the-art seven-axis precision spraying equipment engineered specifically for custom pink clogs gradient surface finishing. Combining 360-degree high-speed rotating spraying with reciprocating coating and dual spray guns with independent paint output, it delivers smooth, seamless gradient color transitions and exceptional coating uniformity for EVA foam clogs, PU clogs, and injection-molded clogs.

Powered by a precision closed-loop stepper drive system with ±0.05mm ultra-high positioning accuracy, it ensures consistent, high-quality gradient color finishing for footwear manufacturing production lines. The Mansheng touch screen control with 10,000-program storage enables rapid changeover between different clog sizes and gradient color recipes.

• Dual-Gun Independent Output
  Two Mansheng Blue Guns (1.3mm nozzle) operate independently, enabling simultaneous multi-angle spraying for 5-sided clog coverage in a single pass — 2-3× faster than traditional reciprocating machines.
• Seven-Axis Closed-Loop Stepper Drive
  X (horizontal), Y (vertical), Z (up/down), R (dual-gun 360° rotation + reciprocating), T1 (station A rotation), T2 (station B rotation), W (base rotation) — ensuring full surface coating of clogs with no blind spots on contoured surfaces.
• Ultra-High Precision
  ±0.05mm positioning accuracy with HIWIN guide rails, NSK bearings, and Leadshine closed-loop stepper motors — guaranteeing stable, vibration-free operation for delicate clog materials including EVA foam and PU.
• Heavy-Duty Construction
  450KG robust build with stainless steel, aluminum and steel body. 500mm × 500mm spraying range with 520mm × 670mm × 260mm effective stroke accommodates full-size clog trays and multi-cavity fixtures.
• Smart Touch Screen Control
  Mansheng touch screen control series with 10,000-program storage, USB communication port for one-click import/export, and Kunlun Tongtai display — effortlessly switch between different clog models and gradient color recipes.
• Premium Components
  Hugong power supply, Shannais & Airtac pneumatic components, Chint/Delixi/Omron electrical parts, Tend control buttons, rubber timing belt — engineered for 24/7 footwear production line reliability.
• Efficient Paint Mist Management
  Circular 400mm exhaust port for effective ventilation and operator safety. Total power consumption only 0.95KW/H with 220VAC/50HZ rated voltage and 0.6-0.8MPA air supply.
