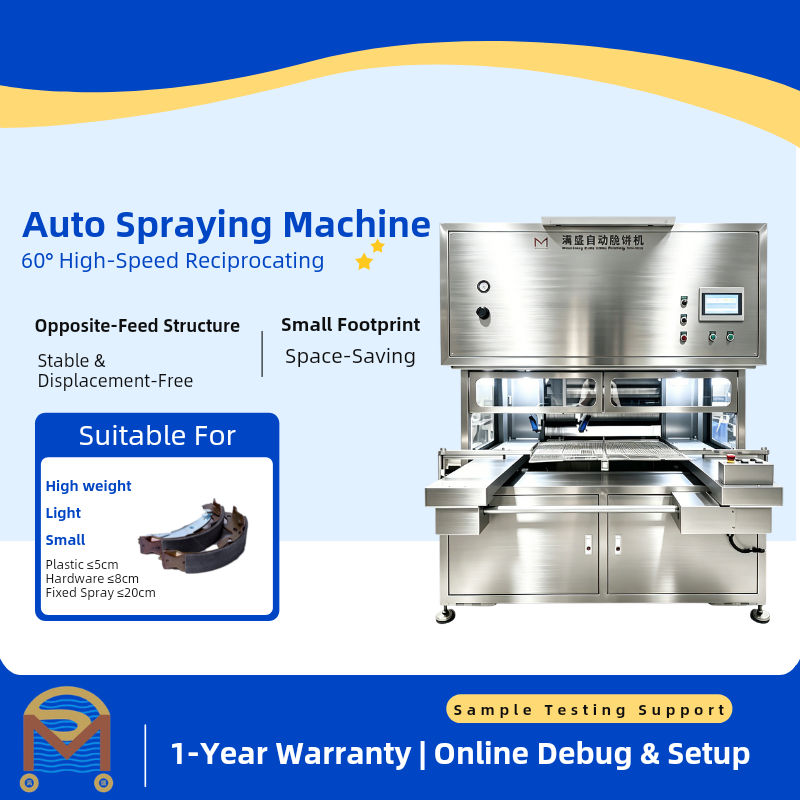

Robotic Automatic Coating Machine for Brake Pad Surface Protective Coating

The Model 600x5B is a robotic automatic spraying system built for applying a protective coating film to brake pad surfaces. A five-axis rotating fixture carries each pad through a programmed spray path, so the coating is deposited evenly instead of relying on the operator's hand and judgement.

It is suitable for brake pad finishing lines in auto and motorcycle parts plants that need a repeatable surface film with lower coating consumption.

• Repeatable spray path — the robotic arm runs the same recorded motion every cycle, keeping film thickness consistent from the first pad of a batch to the last.
• Five-axis rotating fixture — each brake pad is turned to present every working face to the gun, so no manual re-positioning is needed.
• Fixed spray distance and overlap — constant gun-to-workpiece spacing limits overspray and reduces coating material loss compared with manual spraying.
• Program-based changeover — brake pads of different sizes are handled by switching the stored program rather than rebuilding the fixture.
• Automatic cycle — the operator loads and unloads parts only, which keeps exposure to coating mist low and output steady.

The 600x5B is used where brake pads require a protective surface coating before packing or assembly: passenger car brake pads, motorcycle brake pads and similar friction parts that need an even film without paint build-up on edges and slots.

Automatic spraying removes the two biggest sources of coating defects on brake pads: uneven gun travel and inconsistent distance. With the motion recorded once and repeated, the same film is produced on every pad, and coating material is used at a predictable rate per batch — which makes cost per piece easy to plan.

Tell us your brake pad sizes, target film thickness and expected output per shift, and we will confirm the configuration that fits your production line.
