Automated Surface Coating Equipment for Automotive Brake Pads

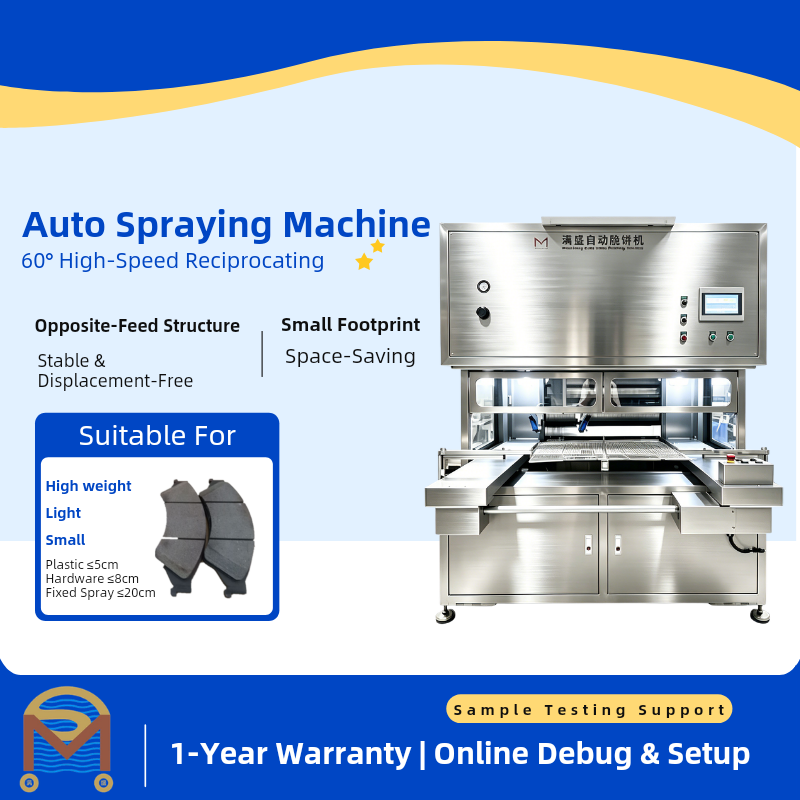

The 600X5B Spray Gun Automatic Spraying Machine is purpose-built for uniform surface coating and painting of automotive brake pads and similar flat or slightly curved metal friction parts. A five-axis precision closed-loop stepper drive moves the gun and material tables along X, Y, Z, R and G axes, ensuring brake pads of different sizes and profiles are coated evenly across the full 600mm x 600mm spraying range.

• Five-Axis Precision Closed-Loop Stepper Drive: X, Y, Z, R and G axes support complex paths and closely simulate manual spraying to cover edges and surfaces with uniform finish.
• 360 Degree High-Speed Rotating + Reciprocating Spraying: Two spray guns rotate at high speed and reciprocate while dispensing paint independently, fully coating edges and faces.
• Automatic In/Out Upper & Lower Material Tables (G Axis): Automatically feeds material tables in and out, cutting loading/unloading time and boosting throughput.
• +/-0.2mm Positioning Accuracy: Precision closed-loop drive maintains consistent coating thickness and color batch after batch.
• 10,000 Program Storage & USB: Mansheng touch screen control stores extensive spraying programs for easy programming and mass replication.
• Premium Branded Components: HIWIN guide rails, NSK bearings, Leisai motors, and quality electrical components ensure long-term reliability.
• Flexible Body Options: Stainless steel, aluminum, steel, or optional cold-rolled plate to match workshop and budget requirements.

Ideal for automatic, uniform spray painting of automotive brake pads, including disc brake pads, brake shoes, and similar friction components requiring full, even anti-rust, anti-corrosion, or decorative coatings. The 360-degree high-speed rotating spraying plus reciprocating motion and automatic material tables suit batch coating of flat and slightly curved workpieces with consistent color and gloss.

• Consistent Coating Quality: +/-0.2mm precision with 360-degree rotating plus reciprocating spraying delivers uniform film thickness and stable color.
• Full Coverage on Edges and Faces: High-speed rotating guns and reciprocating motion eliminate blind spots and simulate manual spraying effectiveness.
• High Efficiency: Two independently-fed spray guns and automatic material tables remove idle time and significantly increase output.
• Reliable & Flexible: Premium components and extensive program storage enable long-run stability and quick changeovers.
• Stable Yield: Automated spraying replaces manual labor to consistently reduce defective coating rates for mass production.
