Black Insole Automatic Spray Painting Equipment for Water Based Paint Coating
  • Black Insole Automatic Spray Painting Equipment for Water Based Paint Coating
  • Black Insole Automatic Spray Painting Equipment for Water Based Paint Coating
  • Black Insole Automatic Spray Painting Equipment for Water Based Paint Coating
  • Black Insole Automatic Spray Painting Equipment for Water Based Paint Coating
  • Black Insole Automatic Spray Painting Equipment for Water Based Paint Coating
  • Black Insole Automatic Spray Painting Equipment for Water Based Paint Coating
  • Black Insole Automatic Spray Painting Equipment for Water Based Paint Coating
  • Black Insole Automatic Spray Painting Equipment for Water Based Paint Coating
  • Black Insole Automatic Spray Painting Equipment for Water Based Paint Coating

Black Insole Automatic Spray Painting Equipment for Water Based Paint Coating

Product Details:
Place of Origin: Donguan, China
Brand Name: ManSheng
Certification: ISO 9001:2015
Model Number: 600X5
Detail Information
Place of Origin:
Donguan, China
Brand Name:
ManSheng
Certification:
ISO 9001:2015
Model Number:
600X5
Highlight:

High Light

Highlight:

Black Insole Spray Coating System

,

Precision Insole Coating Equipment

,

Automated Footwear Insole Spray Device

Trading Information
Minimum Order Quantity:
1
Price:
$14235
Packaging Details:
Wooden box
Delivery Time:
15-25 working days
Payment Terms:
L/C,D/P,D/A,T/T,Western Union
Supply Ability:
100 Sets per Month
Product Description
Automated Coating System - Precision Spraying Device for Black Insoles
Product Overview

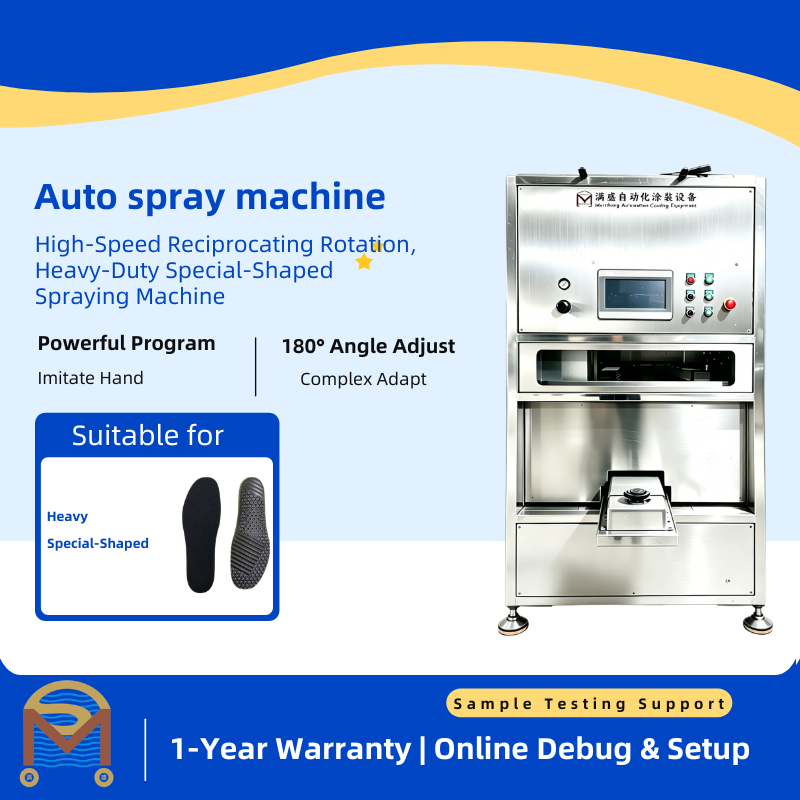

The ManSheng 600X5 is a precision automated spray coating system specifically engineered for black insole surface treatment in footwear manufacturing. Featuring a 7-axis closed-loop stepper drive, 360-degree high-speed rotary spraying, and dual-gun independent oil output, the 600X5 delivers uniform, high-quality coating across various insole materials including EVA, PU, rubber, and fabric-based insoles. With a positioning accuracy of 0.05mm, this machine ensures consistent film thickness and complete surface coverage for black insoles of all sizes and shapes.

Core Specifications
Parameter Specification
Machine Model 600X5 Auto Spray Coating Machine
Body Material Stainless Steel, Aluminum, Steel
Weight 450KG
Overall Dimensions 2450 x 1500 x 2100mm (Frame 1460mm)
Effective Stroke 520mm x 670mm x 260mm
Spraying Range 500mm x 500mm
Spray Gun / Nozzle Mansheng Blue Gun 1.3mm
Positioning Accuracy 0.05mm
Advanced Spraying System

The 600X5 features a dual-gun high-speed rotary spraying system with independent oil output control, enabling simultaneous multi-angle coating of black insoles. The 360-degree rotation combined with reciprocating spray motion ensures complete and uniform coverage across contoured insole surfaces.

Spraying Mode 360 High-Speed Rotation Spraying + Reciprocating Spraying (2 Guns with Independent Oil Output)
Driving Mode 7-Axis Precision Closed-Loop Stepper Drive
Control System

The intuitive Mansheng touch screen interface allows operators to store up to 10,000 coating programs, each with customized spray parameters for different insole sizes, shapes, and coating materials.

Control System Mansheng Touch Screen Control Series
Program Storage 10,000+ Programs
Communication Port USB
Premium Components
Component Brand / Specification
Motor Leadshine
Linear Guide HIWIN
Bearing NSK
Spray Gun Mansheng Blue Gun 1.3mm
Power & Operating Requirements
Parameter Specification
Rated Voltage 220VAC / 50Hz
Air Supply Pressure 0.6 - 0.8MPa
Exhaust Port Round / 400mm
Power Consumption 0.95KW/H
Insole Coating Applications
  • Athletic and sports shoe insoles (running, basketball, training)
  • Casual and fashion shoe insoles
  • Work boot and safety footwear insoles
  • Orthopedic and medical-grade insoles
  • EVA, PU, rubber, and fabric-based insole materials
  • Anti-slip and grip-pattern coating applications
  • Primer, color, and protective clear coat finishing
The ManSheng 600X5 represents the next generation of automated insole coating technology, combining 7-axis precision motion, dual-gun high-speed spraying, and industrial-grade components into a reliable, high-throughput solution for footwear manufacturers. Contact us today to discuss how the 600X5 can enhance your insole production line.
