Home > Products >
Shoe\footwear spray machine
>

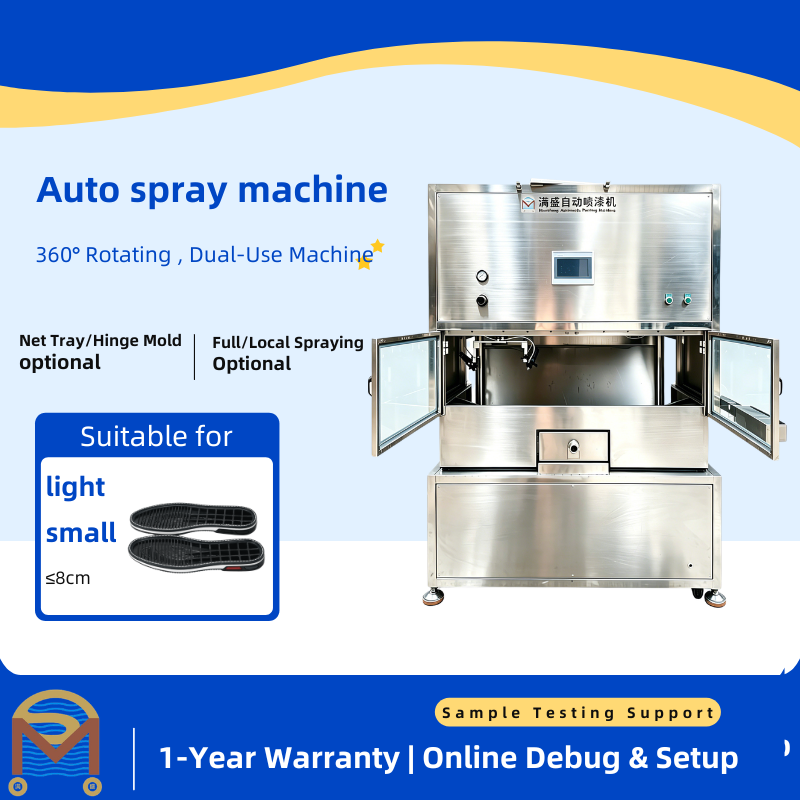

Shoe Edge Automatic Spray Painting Machine for Water Based Paint Coating
  • Shoe Edge Automatic Spray Painting Machine for Water Based Paint Coating
  • Shoe Edge Automatic Spray Painting Machine for Water Based Paint Coating
  • Shoe Edge Automatic Spray Painting Machine for Water Based Paint Coating
  • Shoe Edge Automatic Spray Painting Machine for Water Based Paint Coating
  • Shoe Edge Automatic Spray Painting Machine for Water Based Paint Coating

Shoe Edge Automatic Spray Painting Machine for Water Based Paint Coating

Product Details:
Place of Origin: Guangdong, China
Brand Name: Mansheng
Certification: ISO 9001:2015
Model Number: 500X7
Detail Information
Place of Origin:
Guangdong, China
Brand Name:
Mansheng
Certification:
ISO 9001:2015
Model Number:
500X7
Spray Method:
Automatic
Worktable Type:
Rotary Automatic Worktable
Nozzle Quantity:
1 Pc
Nozzle Movement:
Left-Right Reciprocating
Processing Size:
400 X 250 Mm
Heating Method:
Infrared Heating
Power Supply:
220V
Power:
5 KW
Air Pressure:
0.5 - 0.8 MPa
Rotation Speed:
150 - 500 R/min
Functions:
Dust Removal - Preheating - Spraying - Drying
Machine Dimensions:
1600 X 2620 X 2280 Mm
Machine Weight:
0.8 Ton
Color:
White
Highlight:

High Light

Highlight:

500X7 Shoe Sole Spray Coater

,

Rotary Edge Spray Machine

,

Sole Surface Painting Equipment

Trading Information
Minimum Order Quantity:
1
Price:
$12180
Packaging Details:
WOODEN BOX
Delivery Time:
15-25 working days after order confirmation
Payment Terms:
L/C,D/A,D/P,T/T,Western Union
Supply Ability:
50 Sets per Month
Product Description
Shoe Edge Spray Coating Machine Automatic Rotary System for Shoe Sole Surface Painting
500X7 Shoe Edge Spray Coating Machine

The 500X7 Shoe Edge Spray Coating Machine is a fully automatic precision spraying system designed for shoe sole edge and side surface coating. Configured for sole painting applications, it delivers consistent high-quality finishes on various sole materials with its rotary automatic worktable and infrared heating system.

Applicable Products
  • Shoe Soles
  • Rubber Outsoles
  • Sneaker Soles
  • Insole Components
  • Sports Shoe Soles
Key Product Features
  • Automatic Spraying: Fully automated left-right reciprocating spray gun with precision control for uniform coating on sole surfaces
  • High Efficiency & Energy Saving: Infrared heating system with integrated dust removal, preheating, spraying, and drying in one continuous workflow
  • Rotary Automatic Worktable: 360-degree rotating platform ensures complete sole surface coverage without manual repositioning
  • Wide Compatibility: Adjustable processing size up to 400 x 250mm, suitable for various sole types and sizes
Working Process
Dust Removal → Preheating → Spraying → Drying — a complete 4-step automated cycle for efficient, repeatable results.
Technical Specifications
Parameter Specification
Model Shoe Sole Side Spray
Spray Method Automatic
Worktable Rotary Automatic Worktable
Nozzle Quantity 1 pc
Nozzle Movement Left-Right Reciprocating
Processing Size 400 x 250 mm
Heating Method Infrared Heating
Power Supply 220V
Power 5 kW
Air Pressure 0.5 - 0.8 MPa
Rotation Speed 150 - 500 r/min
Functions Dust Removal - Preheating - Spraying - Drying
Machine Dimensions 1600 x 2620 x 2280 mm
Machine Weight 0.8 ton
Color White
Packaging & Delivery
  • Packaging: Export-grade wooden box with moisture-proof lining
  • Delivery Time: 15-25 working days after order confirmation
  • Supply Capacity: 50 Sets per Month

Tags:

shoe sole spray machine,

footwear coating equipment,

sole painting machine
