Red Shoe Sole Automatic Spray Painting Machine for Water Based Paint Coating
  • Red Shoe Sole Automatic Spray Painting Machine for Water Based Paint Coating
  • Red Shoe Sole Automatic Spray Painting Machine for Water Based Paint Coating
  • Red Shoe Sole Automatic Spray Painting Machine for Water Based Paint Coating
  • Red Shoe Sole Automatic Spray Painting Machine for Water Based Paint Coating
  • Red Shoe Sole Automatic Spray Painting Machine for Water Based Paint Coating

Red Shoe Sole Automatic Spray Painting Machine for Water Based Paint Coating

Product Details:
Place of Origin: Guangdong, China
Brand Name: ManSheng
Certification: CE, ISO
Model Number: 500X7A
Detail Information
Place of Origin:
Guangdong, China
Brand Name:
ManSheng
Certification:
CE, ISO
Model Number:
500X7A
Conveyor System:
Integrated Belt/Roller Conveyor (Custom Length)
Type:
Ground-Mounted Automatic Spray Painting Production Line
Configuration:
Fully Customized (Factory Layout, Stations, Conveyor, Guns — All Configurable)
Control System:
Mansheng Touch Screen Control Series
Spray Guns:
Dual Independent Guns (Brand/Nozzle Configurable)
Positioning Accuracy:
±0.05mm
Drive Method:
Seven-Axis Closed-Loop Stepper
Z Axis:
Up-Down
T1 Axis:
Station A Rotation
Guide Rail Brand:
HIWIN
Air Pressure:
0.6-0.8MPa
T2 Axis:
Station B Rotation
Spray Range:
500x500mm
Pneumatic Components:
SNAS, AirTAC
Weight:
450KG
Air Supply Pressure:
0.6-0.8MPA
R Axis:
Dual-Gun 360° Rotation + Reciprocation
Effective Stroke:
520×670×260mm
Axis Configuration:
X, Y, Z, R, T1, T2, W
Rated Voltage:
220VAC/50HZ
Effective Travel:
520x670x260mm
W Axis:
Base Plate Rotation
Touch Screen:
Kunlun Tongtai
Spraying Method:
360° Rotating + Reciprocating
Program Storage:
10,000 Programs
Bearings:
NSK
Spray Method:
360° Rotary + Reciprocating Dual-Gun
Electrical Components:
CHINT, Delixi, Omron
Spraying Range:
500×500mm
Motor:
Leisai
Spray Gun / Nozzle:
ManSheng Blue Gun 1.3mm
Machine Dimensions:
2450x1500x2100mm (Frame 1460mm)
Guide Rail:
HIWIN
Machine Model:
500X7A
Spray Gun Nozzle:
Mansheng Blue Gun 1.3mm
Motor Brand:
Leadshine
Power Supply Brand:
Hugong
Control Buttons:
TEND
Overall Dimensions:
2450×1500×2100mm
Belt Material:
Rubber
Exhaust Port:
Circular 400mm
X Axis:
Horizontal (Left-Right)
Body Material:
Stainless Steel, Aluminum, Steel
Power Consumption:
0.95KW/H
Drive System:
7-Axis Closed-Loop Stepper
Y Axis:
Vertical (Front-Back)
Communication Port:
USB
Highlight:

High Light

Highlight:

Shoe Sole Spray Painting Machine

,

Automatic Shoe Sole Painting Equipment

,

Seven Axis Closed Loop Drive

Trading Information
Minimum Order Quantity:
1 Set
Price:
From $16552 USD
Packaging Details:
Export-grade wooden case with shock-proof packaging, customized for production line modules
Delivery Time:
30-45 working days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union
Supply Ability:
20 Sets per Month
Product Description

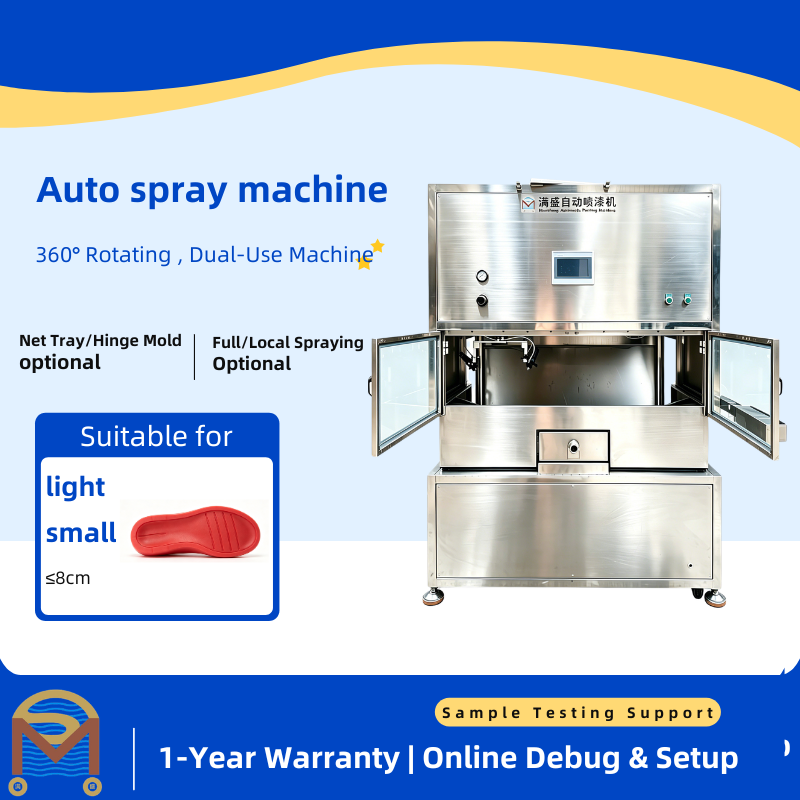

Seven Axis Closed Loop Precision Automated Coating Equipment for Red Shoe Soles
The 500X7A is a large-format high-precision automatic spraying machine engineered for red shoe soles decorative surface coating. Featuring a 7-axis closed-loop stepper drive system with 360-degree high-speed rotary dual-gun spraying technology, it delivers ±0.05mm ultra-precision positioning accuracy with a 500x500mm spray range for industrial-grade high-volume production.
Engineered for red shoe soles surface finishing with ±0.05mm ultra-precision, 360-degree dual-gun rotary spraying, and 7-axis closed-loop stepper drive for high-volume footwear sole production.
Key Features
  • 360-degree high-speed rotary spraying combined with reciprocating motion, two spray guns with independent oil output control
  • 7-axis precision closed-loop stepper drive system (X/Y/Z/R/T1/T2/W) for complex 3D surface coverage
  • ±0.05mm ultra-high positioning accuracy ensures uniform micron-level coating on every cycle
  • Large 500x500mm spray range with 520x670x260mm effective travel for oversize workpieces
  • ManSheng touch screen control system with 10,000-program storage capacity and USB communication
  • Dual-station design (Station A + Station B) for non-stop continuous production
  • Built with premium components: Leadshine motors, HIWIN guide rails, NSK bearings, Omron electrical parts
Technical Specifications
Model 500X7A
Body Material Stainless Steel, Aluminum, Steel
Weight 450KG
Spray Gun / Nozzle ManSheng Blue Gun 1.3mm
Machine Dimensions 2450x1500x2100mm (Frame 1460mm)
Effective Travel X:520mm Y:670mm Z:260mm
Spray Range 500x500mm
Spray Method 360-degree Rotary + Reciprocating Dual-Gun
Drive System 7-Axis Closed-Loop Stepper
Positioning Accuracy ±0.05mm
Control System ManSheng Touch Screen Series
Program Storage 10,000 Programs
Rated Voltage 220VAC/50Hz
Air Pressure 0.6-0.8MPa
Power Consumption 0.95KW/H
7-Axis System Configuration
X Axis Horizontal (Left-Right)
Y Axis Vertical (Front-Back)
Z Axis Up-Down
R Axis Dual-Gun 360-degree Rotation + Reciprocation
T1 Axis Station A Rotation
T2 Axis Station B Rotation
W Axis Base Plate Rotation
Premium Component Brands
Motor Leadshine
Guide Rail HIWIN
Power Supply Hugong
Pneumatic Components SNAS, AirTAC
Electrical Components CHINT, Delixi, Omron
Bearings NSK
Touch Screen Kunlun Tongtai
Control Buttons TEND
Belt Material Rubber
Communication Port USB
Exhaust Port Circular 400mm

Tags:

shoe sole spray machine,

footwear coating equipment,

sole painting machine
