Shoe Sole Automatic Spray Painting Equipment for Anti Rust Paint Finishing

Name: Shoe Sole Automatic Spray Painting Equipment for Anti Rust Paint Finishing
Brand: Dongguan Mansheng Automation Equipment Co., Ltd
SKU: 500X8
Price: 388.00 USD
Availability: InStock

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	Mansheng
Certification:	ISO 9001:2015
Model Number:	500X8

Detail Information

Place of Origin:

Dongguan, China

Brand Name:

Mansheng

Certification:

ISO 9001:2015

Model Number:

500X8

Body Material:

Stainless Steel / Aluminum / Steel

Weight:

480KG

Spray Gun And Nozzle:

Mansheng Blue Gun, 1.3mm

Overall Dimension:

2143 (Frame:1260) X 1500 X 2170mm

Spraying Range:

500 X 400 X 350mm

Spraying Mode:

360 Degree Arbitrary Angle Tray Rotation + Reciprocating Spraying

Drive Mode:

8-Axis Precision Servo Drive

Positioning Accuracy:

±0.2mm

Control System:

Mansheng Touch Screen Control Series

Program Storage:

10,000+ Programs

Rated Voltage:

220VAC/50Hz

Air Supply Pressure:

0.6-0.8MPa

Power Consumption:

4.5KW/H

Communication Port:

USB

Motor:

Zinje

Motion Module:

High Precision Motion Module

Power Supply:

Hugong

Pneumatic Parts:

Shannais, Airtac

Electrical Components:

Chint, Delixi, Omron

Touch Screen:

Kunlun Tongtai

Control Buttons:

Tend

Exhaust Port:

Round, 400mm

Axes Layout:

X(L/R), Y(F/B), Z(U/D), R(Gun Rotation), A(Gun Angle Adjust), T1(Tray A Rotate), T2(Tray B Rotate), W(Tray Indexing)

Highlight:

High Light

Highlight:

Shoe Sole Precision Spray Coating

8-Axis Footwear Sole Coating Equipment

Automated Sole Surface Painting Machine

Trading Information

Minimum Order Quantity:

Price:

$12,765

Packaging Details:

WOODEN BOX

Delivery Time:

15-25 working days after order confirmation

Payment Terms:

L/C,D/A,D/P,T/T,Western Union

Supply Ability:

50 Sets per Month

Product Description

Automatic Reciprocating Spray Painting Machine for Shoe Sole Surface Coating Precision Finishing

Product Overview

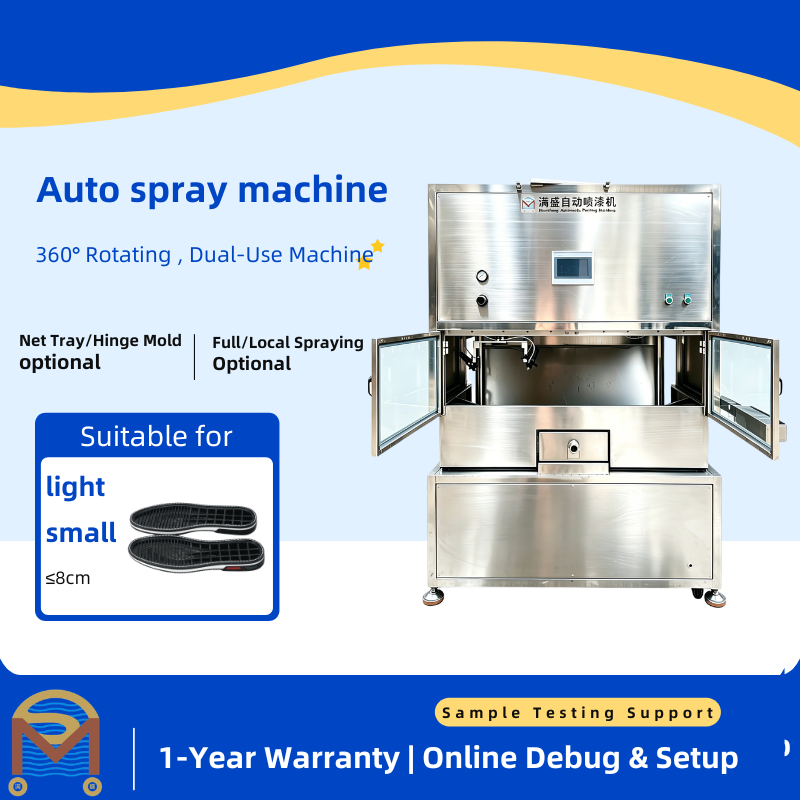

The Mansheng 8-Axis Automatic Reciprocating Spray Painting Machine is a state-of-the-art coating system engineered for precision shoe sole surface spraying and finishing. With its advanced 8-axis servo drive system and 360-degree arbitrary angle spraying capability, this machine delivers uniform, high-quality coating on various sole materials including rubber, EVA, PU, TPU, and composite soles. Designed for high-volume footwear manufacturing lines, it ensures consistent coverage on complex 3D sole contours and textured surfaces.

Key Features

8-Axis Precision Servo Drive - Full control over X, Y, Z, R, A, T1, T2, W axes for maximum flexibility and precise motion control on complex sole geometries
360 Degree Arbitrary Angle Spraying - Rotating tray with reciprocating spraying mechanism ensures complete and uniform coverage on all sole contours, sidewalls, and heel surfaces
±0.2mm Positioning Accuracy - High-precision motion modules ensure consistent coating thickness and quality batch after batch
10,000+ Program Storage - Store and recall complex spraying programs via USB port for quick changeover between different sole models and sizes
Mansheng Touch Screen Control - User-friendly interface with Kunlun Tongtai display for easy parameter adjustment and operation monitoring
Robust Industrial Build - Stainless steel, aluminum and steel construction, 480KG heavy-duty frame for vibration-free operation in continuous production environments

Technical Specifications

Parameter	Specification
Body Material	Stainless Steel / Aluminum / Steel
Weight	480KG
Spray Gun and Nozzle	Mansheng Blue Gun, 1.3mm
Overall Dimension	2143 (Frame:1260) x 1500 x 2170mm
Spraying Range	500 x 400 x 350mm
Spraying Mode	360 Degree tray rotation + reciprocating spraying
Drive Mode	8-Axis Precision Servo Drive
Positioning Accuracy	±0.2mm
Control System	Mansheng Touch Screen Control Series
Program Storage	10,000+ Programs
Rated Voltage	220VAC/50Hz
Air Supply Pressure	0.6-0.8MPa
Power Consumption	4.5KW/H

Premium Components

Motor: Zinje
Motion Module: High Precision Motion Module
Power Supply: Hugong
Pneumatic Parts: Shannais, Airtac
Electrical Components: Chint, Delixi, Omron
Control Buttons: Tend
Touch Screen: Kunlun Tongtai

Shoe Sole Coating Applications

Rubber outsoles and sneaker soles
EVA foam and PU midsole surface coating
TPU sole edge and contour finishing
Athletic and sports shoe sole spraying
Casual and fashion footwear sole coating
Work boot and safety shoe sole finishing
Anti-slip and protective coating applications
Primer, base coat, color coat, and clear coat finishing

The Mansheng 8-Axis Automatic Spray Painting Machine delivers high-precision, energy-efficient coating for the footwear sole manufacturing industry. With its heavy-duty construction, advanced multi-axis control, and industrial-grade components, this machine is the ideal solution for manufacturers seeking consistent, high-quality shoe sole surface finishing. Contact us today to discuss your footwear sole coating requirements.
